LED 2835 SMD White 6500K-7000K 500mW 3.2V

LED 2835 SMD White 6500K-7000K 500mW 3.2V

The LED 2835 SMD White (6500K-7000K) 500mW 3.2V is a high-performance lighting solution designed for applications that require bright and crisp white illumination. With a compact size of 2.8 x 3.5 x 0.8 mm, this LED provides powerful light output while maintaining energy efficiency. It is ideal for both residential and commercial lighting, offering a clear white light perfect for environments requiring high brightness and clarity.

This LED is designed for superior durability and long life. It operates within a temperature range of -40°C to +85°C, ensuring stable performance in various environments. Its forward voltage is between 2.8V to 3.4V, and it can dissipate up to 500mW of power. The LED meets ROHS environmental standards, ensuring that it is free of hazardous materials and can be safely used in various electrical products.

The LED 2835 SMD White is widely used for lighting in commercial spaces, including advertising light boxes, LCD backlighting, and decorative light strips. It is also a popular choice for residential lighting systems, fluorescent tubes, and downlights due to its bright white light output and energy efficiency.

Features:

• High Brightness: Provides bright white light with high luminous intensity.
• Compact Size: Small 2.8 x 3.5 x 0.8 mm footprint, ideal for tight spaces.
• Energy-Efficient: High power dissipation rate of 500mW with minimal energy consumption.
• Wide Temperature Range: Operates reliably between -40°C to +85°C.
• ROHS Compliant: Eco-friendly and free of harmful substances.

Specifications:

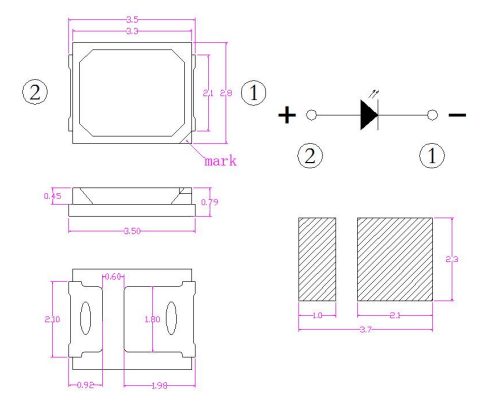

Pinout Diagram:

Footprint Diagram:

Applications:

• Indoor Lighting.
• Commercial Lighting Displays.
• LCD Backlighting.
• Decorative Lighting.

Package Contents:

• 1x LED 2835 SMD White 6500K-7000K 500mW 3.2V

Datasheet
RoHS
