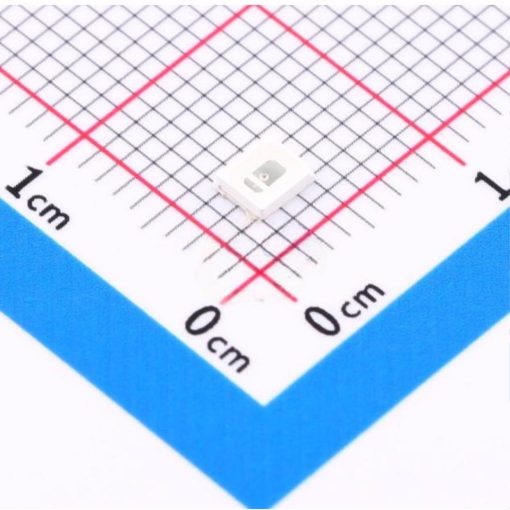

LED 2835 SMD Yellow 585-590K 2.0-2.2V 200mW
The LED 2835 SMD Yellow 585-590nm 2.0-2.2V 200mW is a versatile, high-brightness surface-mounted diode optimized for vibrant yellow illumination in compact electronic designs. This SMD LED produces a bright yellow output at 585-590nm, delivering a luminous flux of 5-10 lumens at 60mA, ideal for applications needing eye-catching, energy-efficient light in tight spaces. With a forward voltage range of 2.0-2.2V, it supports reliable operation at a continuous current of 60mA, maintaining a 200mW power rating that promotes efficient thermal dissipation in multi-chip modules.
Features:
- Functions at 200mW with 2.0-2.2V efficiency for power-optimized setups.
- Yields vivid 585-590nm yellow light with ±10% binning for color fidelity.
- Provides solid-state longevity with immunity to shock, vibration, and environmental abuse.
- Achieves broad 120-degree viewing angle for expansive, uniform illumination.
Specifications:
| Parameter | Value |
|---|---|
| Luminous Flux | 5-10lm |
| Wavelength | 585-590nm |
| Forward Voltage | 2.0-2.2V |
| Reverse Current | 5μA |
| Viewing Angle | 120° |
| Continuous Forward Current | 60mA |
| Peak Forward Current | 60mA |
| Reverse Voltage | 5V |
| Operating Temperature Range | -30°Cto+80°C |
| Storage Temperature Range | -40°Cto+85°C |
| Power Rating | 200mW |
