LED Bar Graph 10 SEG (Red)

15.00 EGP

Availability: Out of stock
SKU:300000008910

10-segment LED display 10 x Red. It can be used for example as a temperature gauge or liquid level.



Specification

  • Display type: LED range
  • Mounting: THT
  • Color: Red
  • Forward Current: 20mA
  • Forward Voltage: 2.0V to 2.2V (maximum)
  • Operating Temperature: -25℃ to 85℃
  • Storage Temperature: -30℃ to 85℃
  • Soldering Temperature: 260℃ for 5sec.
  • Dimensions: 25.5 mm x 10 mm x 6.5 mm
  • Height with pins: 14.5 mm

Features

  • 10 LEDs with individual control
  • High Luster
  • High Intensity
  • Economically Priced
  • Breadboard or Perf board friendly
  • RoHS Compliant
  • Wide viewing angle

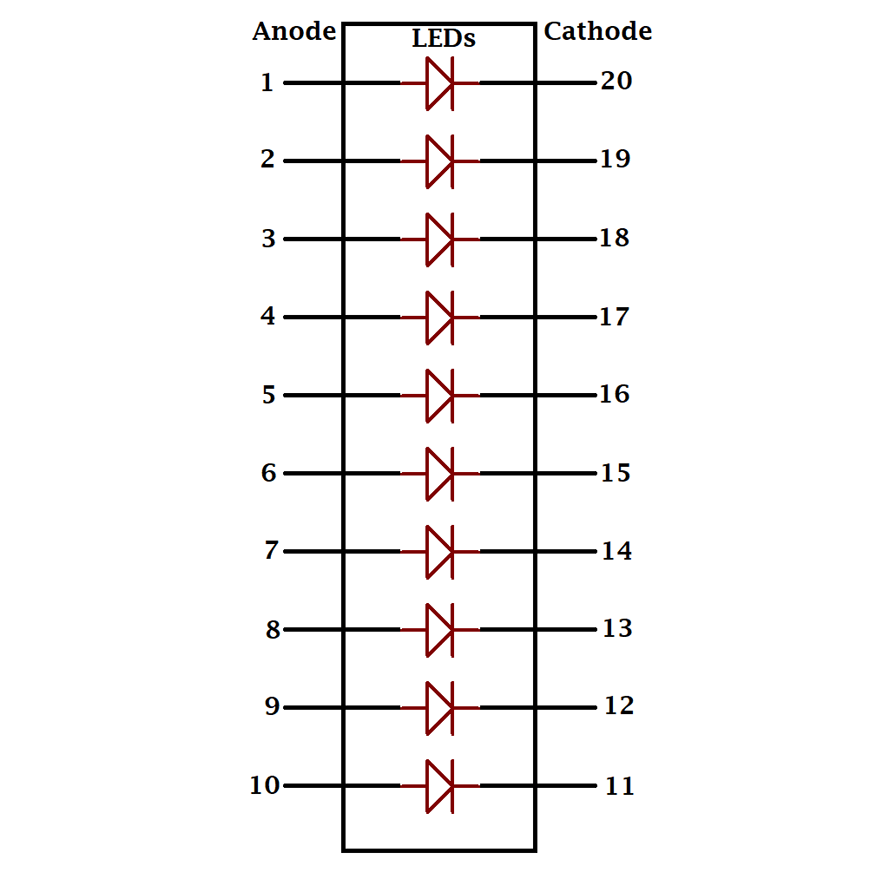

Pin Configuration

Pin No. Pin Name Description
1 to 10 Anode All are anode pins of the respected LED
11 to 20 Cathode All are cathode pins of the respected LED
