LED Module 3030 1.5W 12V

Features:

• Aluminum PCB with 1.0mm thickness.
• Virtually no maintenance.
• Low heat, high brightness, and works well under harsh conditions.
• Including 3M adhesive tape for convenient mounting.
• Super bright white color module, strong lighting.
• Input voltage: DC12V, professionally designed to be fully waterproof.
• IP 65 protection can be normally operated even in cloudy, rainy, and snowy weather.
• No RF interference.
• Long life 50,000 hours+ (5 years+).

Specifications:

• Working Temperature: -25°C – +55°C
• Material: ABS+PC
• Size: 48 x 30 x 15mm(LxWxH)
• LED Type: 3030 SMD LEDs
• LED Quantity: 1PC
• Working Voltage: DC12V
• Output Power: 1.5W/PC

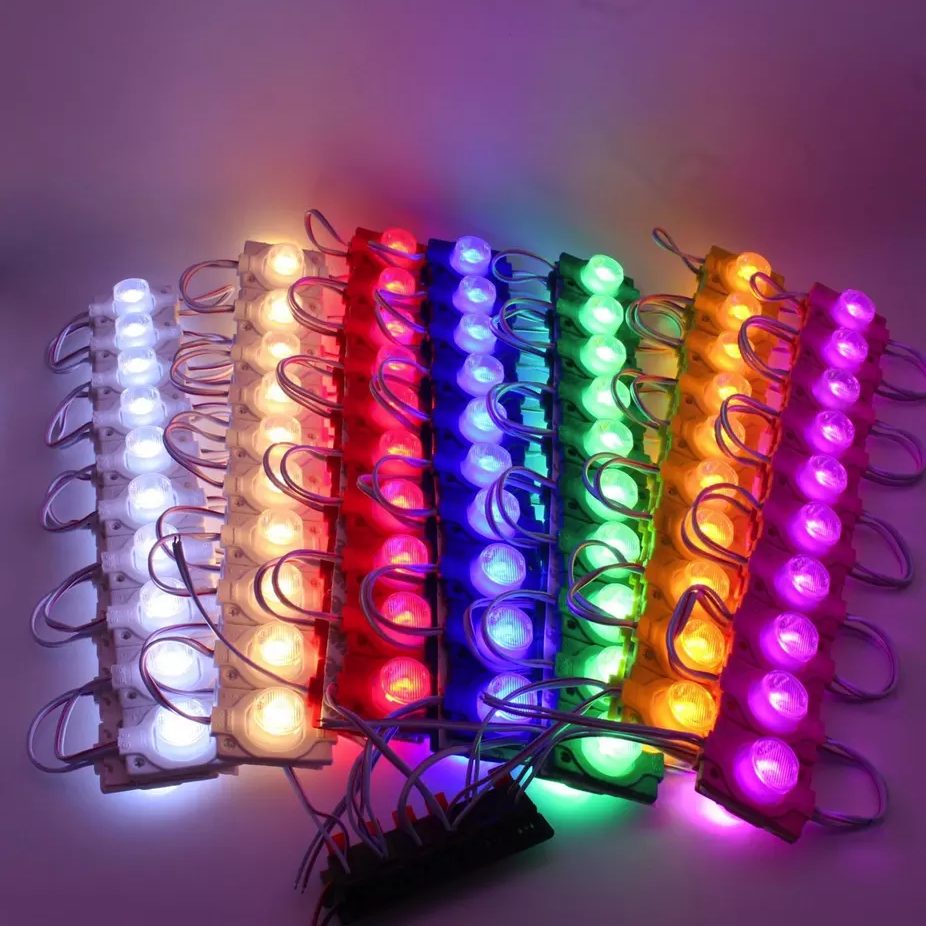

• Emitting Colors: Warm White, White, Green, Red, Yellow, Blue, Pink
• View Angle: 45°*15°
• Back With Double-Sided Adhesive Tape
• Cuttable And Reconnectable
• Lifespan: >30,000 Hours

Applications:

• LightBox And Signage:  Double-Sided Light Box,
• Round Corner Advertising Signs, Exhibition Show, Ceiling Roof Light,
• Institution Building, Commercial Lighting, Backlights For Channel Letters, Billboards.

Operation Instructions:

The module is 20pcs/string, user can put several strings in parallel connection, each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of the main power supply should not be less than 2.5mm2

Keep it in a well-ventilated environment, good for heat dissipation.

When connecting, the red wire connects to power“+”, and the black wire connects to power“-”.Don’t reverse.

Suggested to use switching power supply with a safety certificate. (with short circuit, over-voltage, current protection function)

Package Included:

1x LED Module 3030 1.5W 12V
