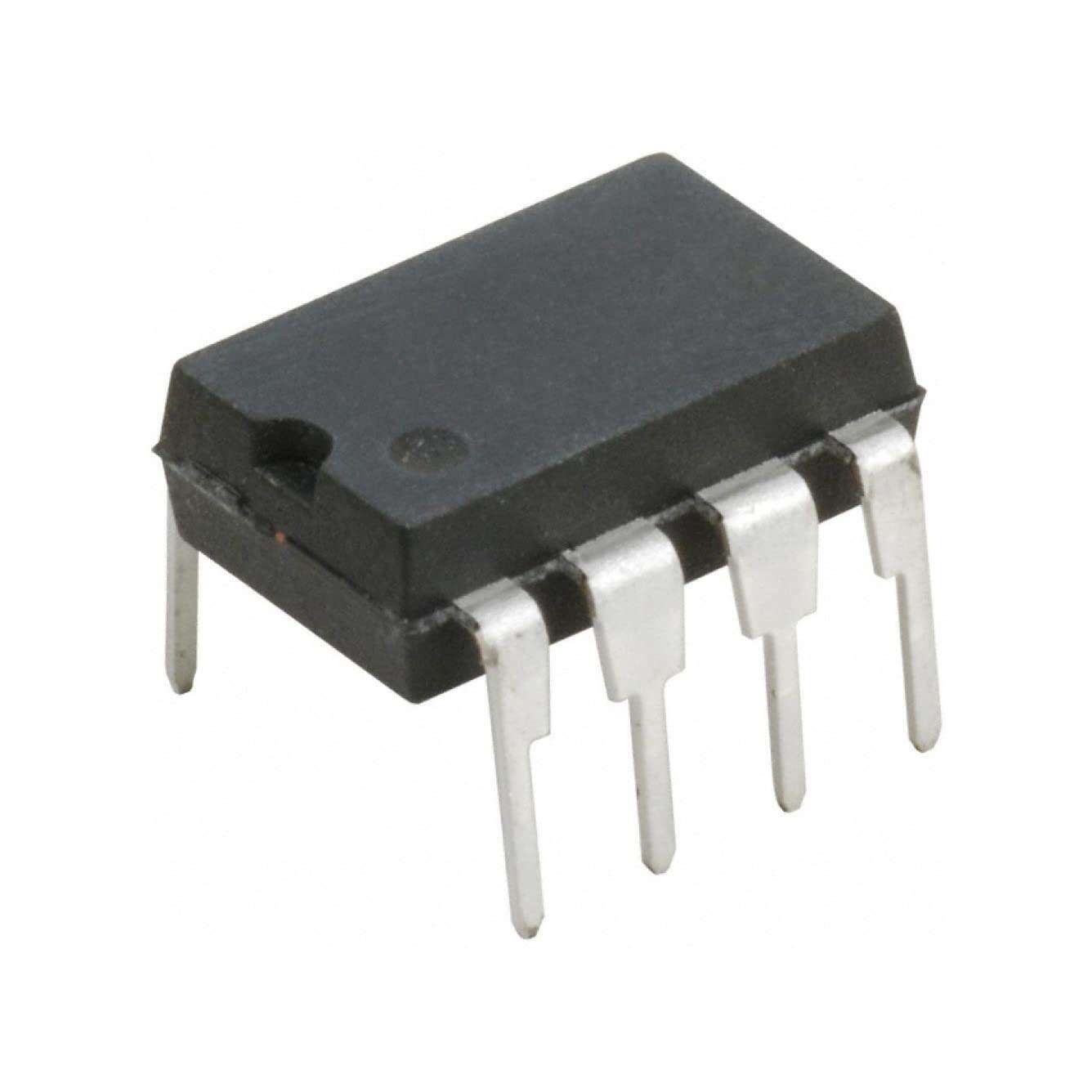

LF351N Single JFET Op-Amp IC DIP-8
Is a single-channel JFET input operational amplifier that offers extremely high input impedance and very low input bias current, which minimizes signal loading and improves accuracy in sensitive circuits. With a high slew rate and wide gain-bandwidth product, can handle fast-changing signals with minimal distortion. It operates on dual power supplies up to ±18 V, making it suitable for professional audio, instrumentation and industrial signal conditioning circuits. The DIP-8 through-hole package allows easy breadboard prototyping and permanent PCB mounting.
Features:
- Internally adjustable input offset voltage.
- Low power consumption.
- Wide common-mode (up to VCC+) and differential voltage range.
- Low input bias and offset current.
- Output short-circuit protection.
- High input impedance JFET input stage.
- Internal frequency compensation.
- Latch up free operation.
- High slew rate 16 V/µs.
Specifications:
| Parameter | Specification |
|---|---|
| Supply voltage (operating): | 6 – 32 V (total) |
| Supply voltage (maximum): | ±18 V |
| Operating temperature: | 0°C to +70°C |
| Input offset voltage: | 10 mV (Max 13 mV) |
| Input offset voltage drift: | 10 µV/°C |
| Input bias current: | 20 pA (Max 200 pA) |
| Input offset current: | 5 pA (Max 100 pA) |
| Input resistance: | 10¹² Ω |
| Common-mode input range: | ±11 V (@ ±15 V supply) |
| CMRR (Common-Mode Rejection Ratio): | 70 dB |
| PSRR (Power Supply Rejection Ratio): | 80 – 86 dB |
| Supply current: | 1.4 mA (Max 3.4 mA) |
| Output voltage swing: | ±10 V @ 2 kΩ load |
| Slew rate: | 16 V/µs |
| Gain bandwidth product: | 4 MHz |
| Phase margin: | 45° |
| Input noise voltage: | 15 nV/√Hz @ 1 kHz |
| Total harmonic distortion: | 0.01 % |
| Output short-circuit current: | ≈10 – 40 mA |

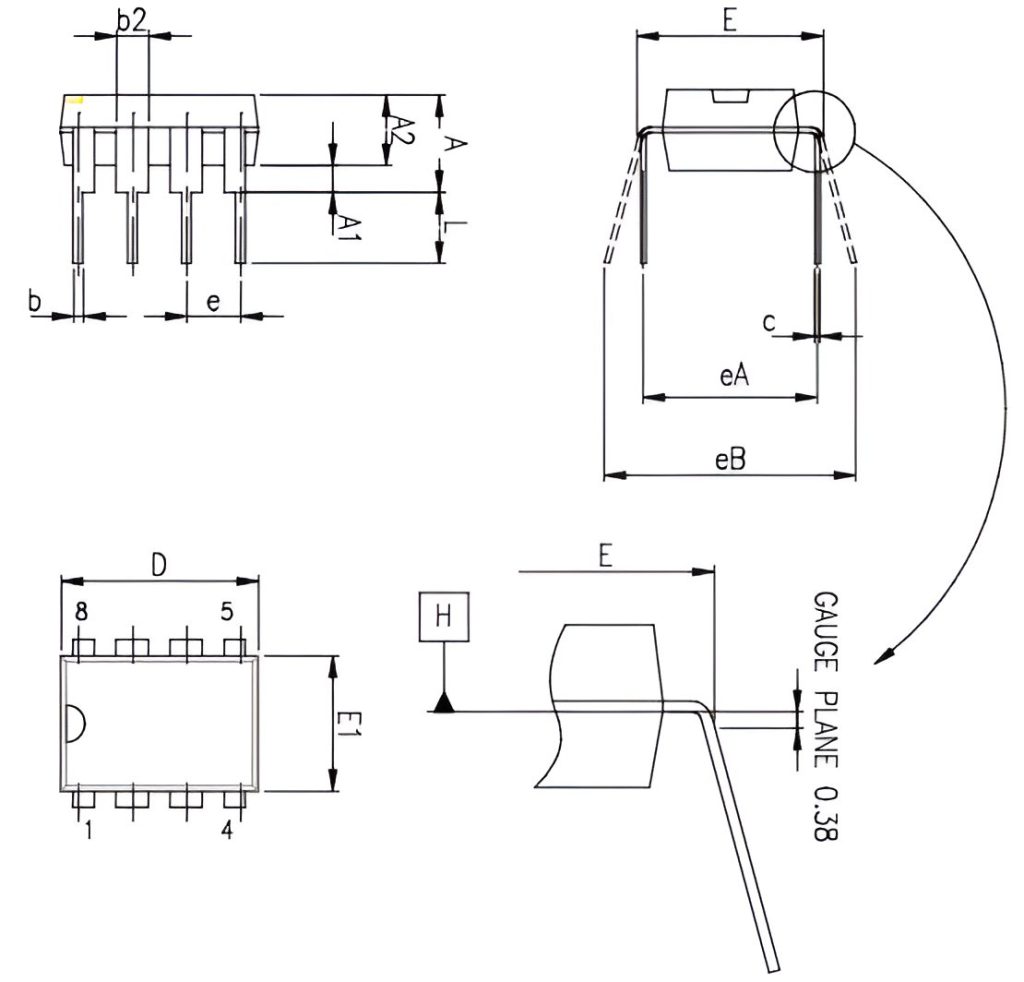

| Package: | DIP-8 |
| Internal compensation: | Yes (unity gain stable) |
Pinout:
| Pin | Function |
|---|---|
| 1 | Offset Null 1 |
| 2 | Inverting Input (–) |
| 3 | Non-Inverting Input (+) |
| 4 | V– |
| 5 | Offset Null 2 |
| 6 | Output |
| 7 | V+ |
| 8 | NC |
Applications:
- Audio pre-amplifiers.
- Active filters.
- Instrumentation amplifiers.
- Sensor signal conditioning.
- Data acquisition systems.
- Sample-and-hold circuits.
- Precision analog circuits.
Packages:
- 1x LF351N Single JFET Op-Amp IC DIP-8.
Documents:
| Datasheet: | LF351N |
| CAD Model: | File |
