LifePO4 Phosphate Lithium Cylinder Battery Connectors

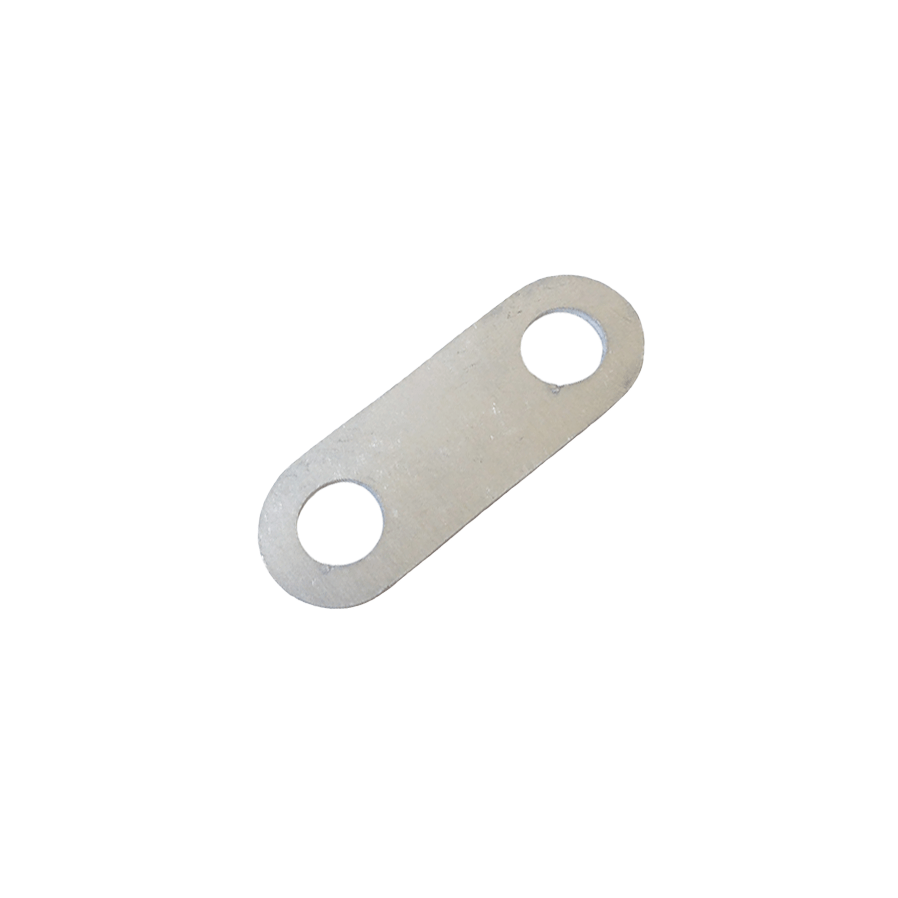

This LifePO₄ Phosphate Lithium Cylinder Battery Connector Plate is a pure aluminum (Al 1060/1050) bus-bar plate engineered for series-connecting cylindrical 3.2 V LiFePO₄ cells. Fabricated from a 2 mm-thick aluminum strip, it includes two Ø 10 mm mounting holes spaced along the 54 mm length, with end-rounded contours at approximately R = 5–10 mm for stress relief and safety.
Features
- Constructed from 100% aluminum alloy, combining excellent conductivity with lightweight corrosion resistance.
- Handles continuous currents up to approximately 40 A (≈0.5 C at 20 Ah). Based on aluminum’s current density (~0.75 A/mm²), a 20×2 mm cross-section supports around 30 A, with our design margin enabling up to 40 A safely.
- Dimensions: 54 mm total length; 20 mm width; 2 mm thickness; Ø 10 mm mounting holes.
- Ideal for spot welding, rivet mounting, or precision stacking between LiFePO₄ cells.
- Minimal thickness ensures compact alignment in battery modules with reduced spacing and good thermal dissipation.
Specifications
| Parameter | Value |
|---|---|
| Material | 100% Aluminum (Al1060) |
| Dimensions (L×W×T) | 54mm × 20mm × 2 mm |
| Mount Holes (Ø) | 10 mm |
| Hole Center Spacing | ~54 mm (edge‑clearance determined by end radii) |
| End Radii | ≈ 5–10 mm |
| Operating Current | Up to ~40 A (0.5 C) |
| Amps per Cross‑Section | ~0.75 A/mm² (aluminum standard) |
| Operating Temperature | −20 °C to +80 °C |
| Pitch | 34mm |
Dimensions
Applications
- Series connection of Ø 34 mm LiFePO₄ cells (e.g. CATL 34184) in DIY battery pack modules.
- Battery configurations for solar storage, E‑bikes, scooters, UPS, or marine systems.
- Spot-welded bus-bar replacements or upgrade plates in assembled LiFePO₄ modules.
- Lightweight energy storage projects or compact pack prototypes with tight alignment.
Package Contents
- 1x LifePO4 Phosphate Lithium Cylinder Battery Connectors.
