LXW5-11N2 Limit Switch with Panel Mount 15A 250VAC

LXW5-11N2 Limit Switch with Panel Mount 15A 250VAC

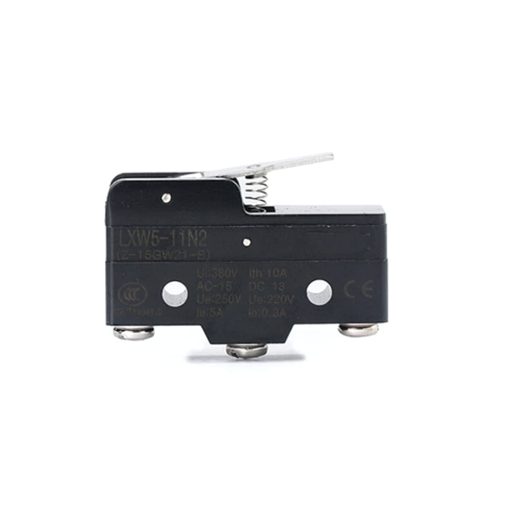

The LXW5-11N2 is a micro limit switch designed for precise control in industrial applications. It features a short hinge lever actuator, making it suitable for detecting mechanical movements and positions. This switch is commonly used in automation systems, machinery, and equipment where accurate limit detection is essential.

Built with durability in mind, the LXW5-11N2 is constructed to withstand harsh industrial environments. Its robust design ensures reliable performance over time. The switch is engineered to handle a rated voltage of up to 380VAC and 220VDC, with a thermal current capacity of 10A. This makes it versatile for various control applications.

Installation of the LXW5-11N2 is straightforward, with panel mounting options available for easy integration into existing systems. Regular maintenance is recommended to ensure optimal performance. The switch is designed to operate within an ambient temperature range of -25°C to +80°C and a humidity range of 35% to 85% RH, without condensation. Adhering to these conditions will prolong the lifespan and reliability of the switch.

Features:

• Short hinge lever actuator for precise mechanical control.
• Rated voltage up to 380VAC and 220VDC.
• Thermal current capacity of 10A.
• Contact resistance of 30mΩ max (initial value).
• Insulation resistance of 100MΩ min at 500VDC.
• Dielectric strength of 1000VAC between terminals of the same polarity.
• Operating temperature range of -25°C to +80°C.
• Operating humidity range of 35% to 85% RH, no condensation.

Specifications:

Applications:

• Automation Systems.
• Conveyor Belts.
• Elevators and Lifts.
• Industrial Machinery.
• Robotic Arms.
• Safety Interlocks.
• Position Sensing.
• Control Panels.
• Packaging Equipment.
• Material Handling Systems.

Package Contents:

• 1x Limit Switch with Panel Mount LXW5-11N2 15A 250VAC
