Specifications:
| Type | Description |
| Category | Switches Limit Switches |
| Series | D4MC |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating – AC | 125 V |
| Voltage Rating – DC | 30 V |
| Actuator Type | Roller Plunger |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Operating Force | 600gf |
| Release Force | 100gf |
| Operating Temperature | -10°C ~ 80°C |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
Wiring diagram:

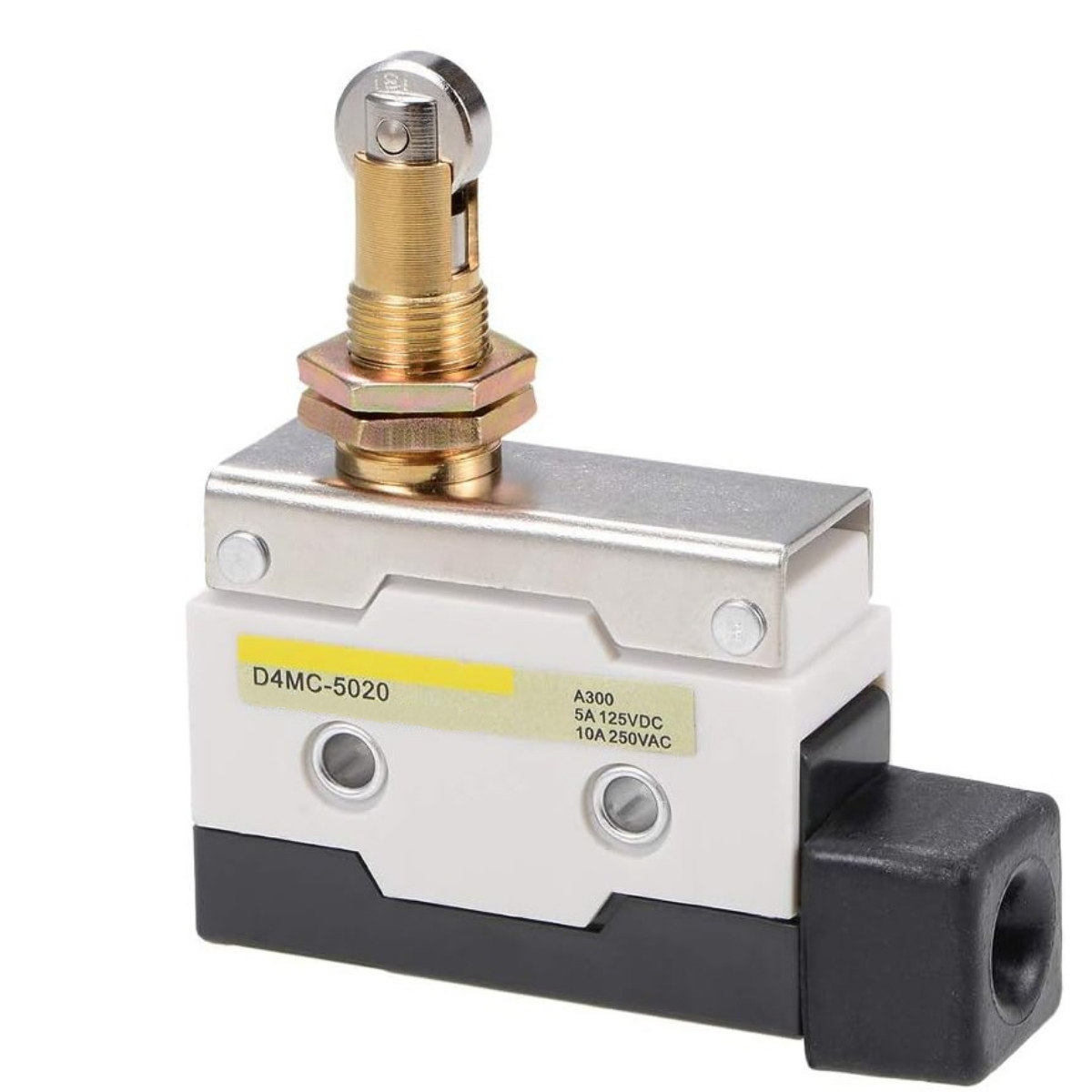

D4MC-5020 Dimensions:
| Mode Operation | D4MC-5020 |
| Operating force OF (max) | 600g |
| Release force RF (min) | 100g |
| Pretravel PT (max) | 1.6mm |
| Overtravel OT (min) | 5mm |
| Movement Differential MD (max) | 0.2mm |
| Operating Position OP (max) | 33.4±1.2mm |
