This is a sliding potentiometer. It is commonly used as the volume control in audio power amplifiers. When you move the slider from one side to the other, its output voltage will range from 0V to the voltage range you apply. This potentiometer has a long open slot to allow the wiper lug to move freely up and down. Also, a slotted felt cover is attached to the lever to minimize the effects of resistive track contamination. This is a secure and reliable potentiometer that offers a long service life. The body is built from high-quality steel to protect this pot from wear and tear.
Dual Slide Pot
The Dual Slide Pot consists of a single slider that can be used to control two potentiometers in parallel. They are often used for stereo control in professional audio and other applications where dual parallel channels are controlled.
Specifications:
- Model: B10K x 2
- Double Connection, Double Channel
- Resistance Value: 10K ohm
- Tolerance: +/-20%
- Power rating: 0.25W

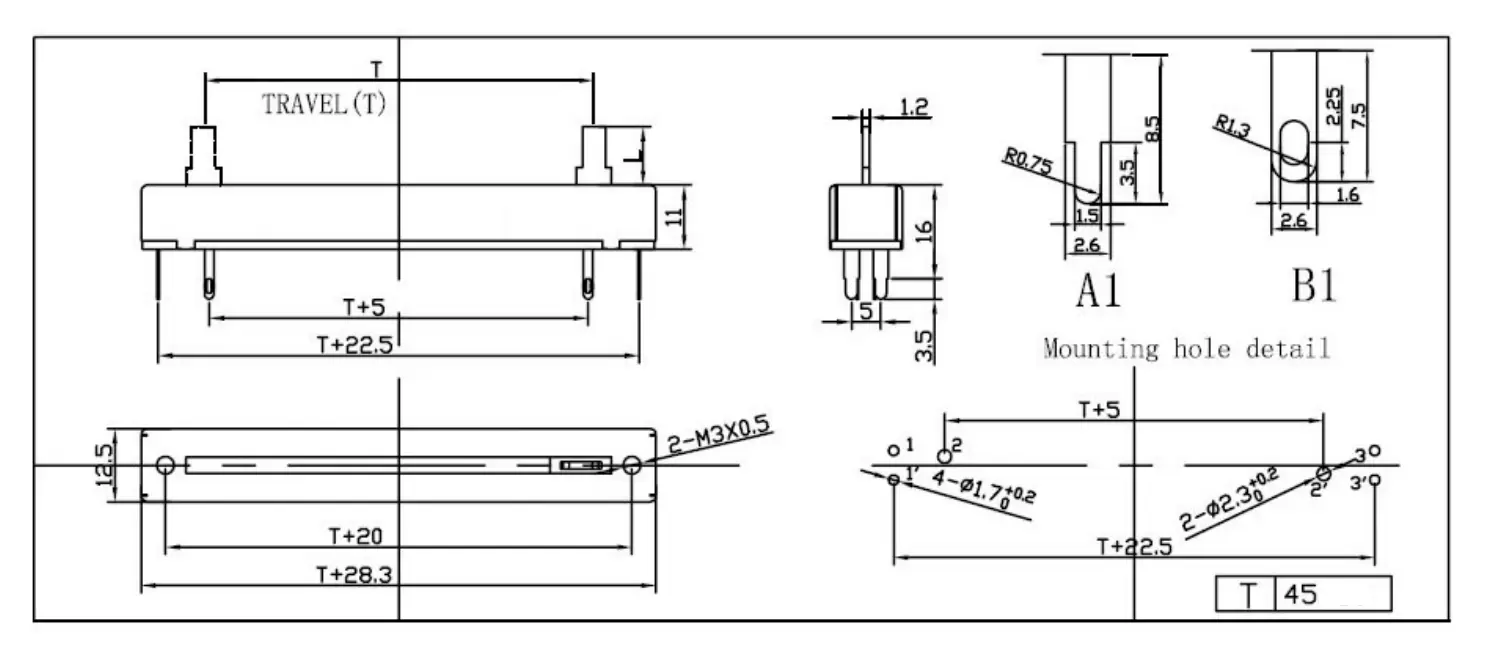

- Travel: 45mm
- Actuator type: Lever
- Lever type: Metal (20mm)
