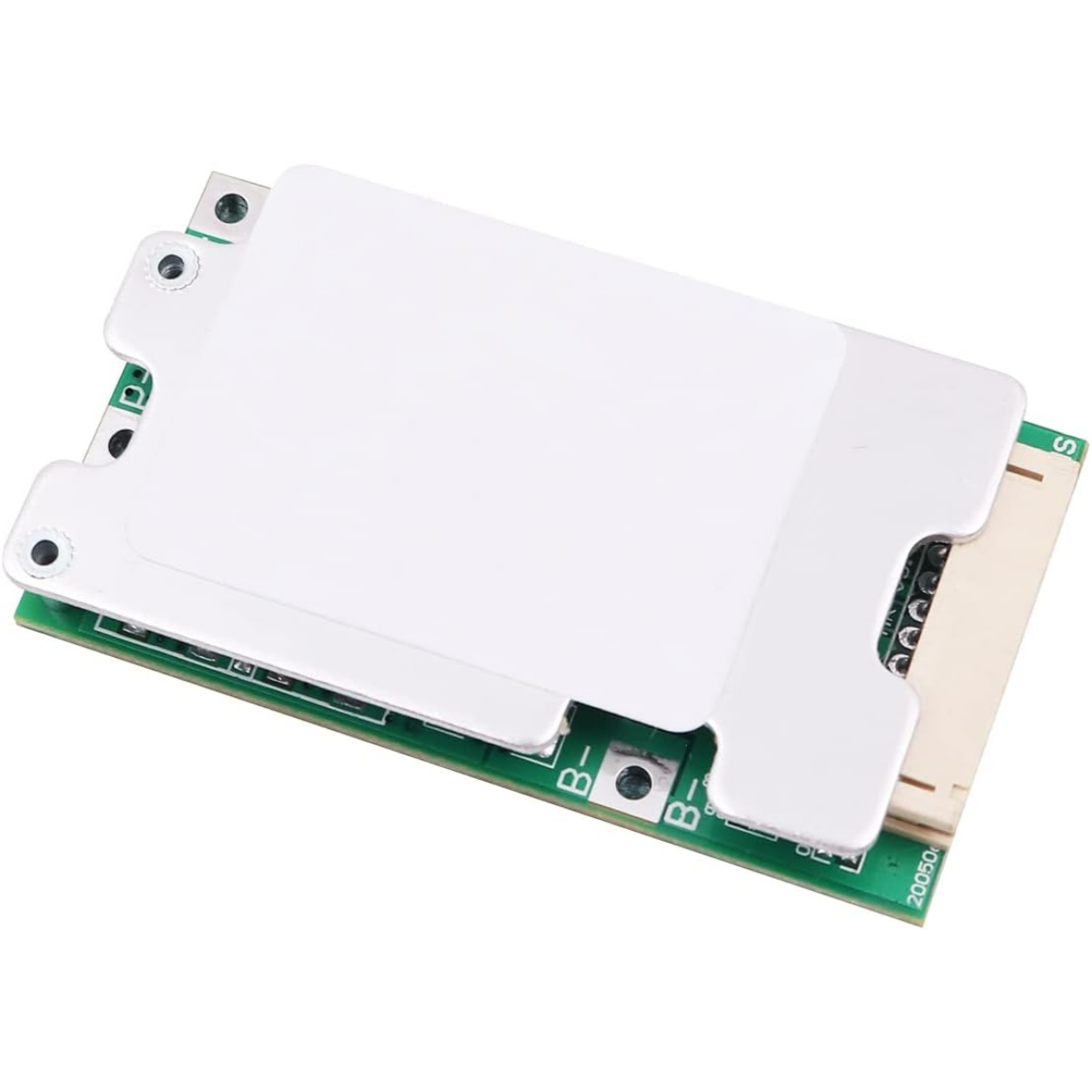

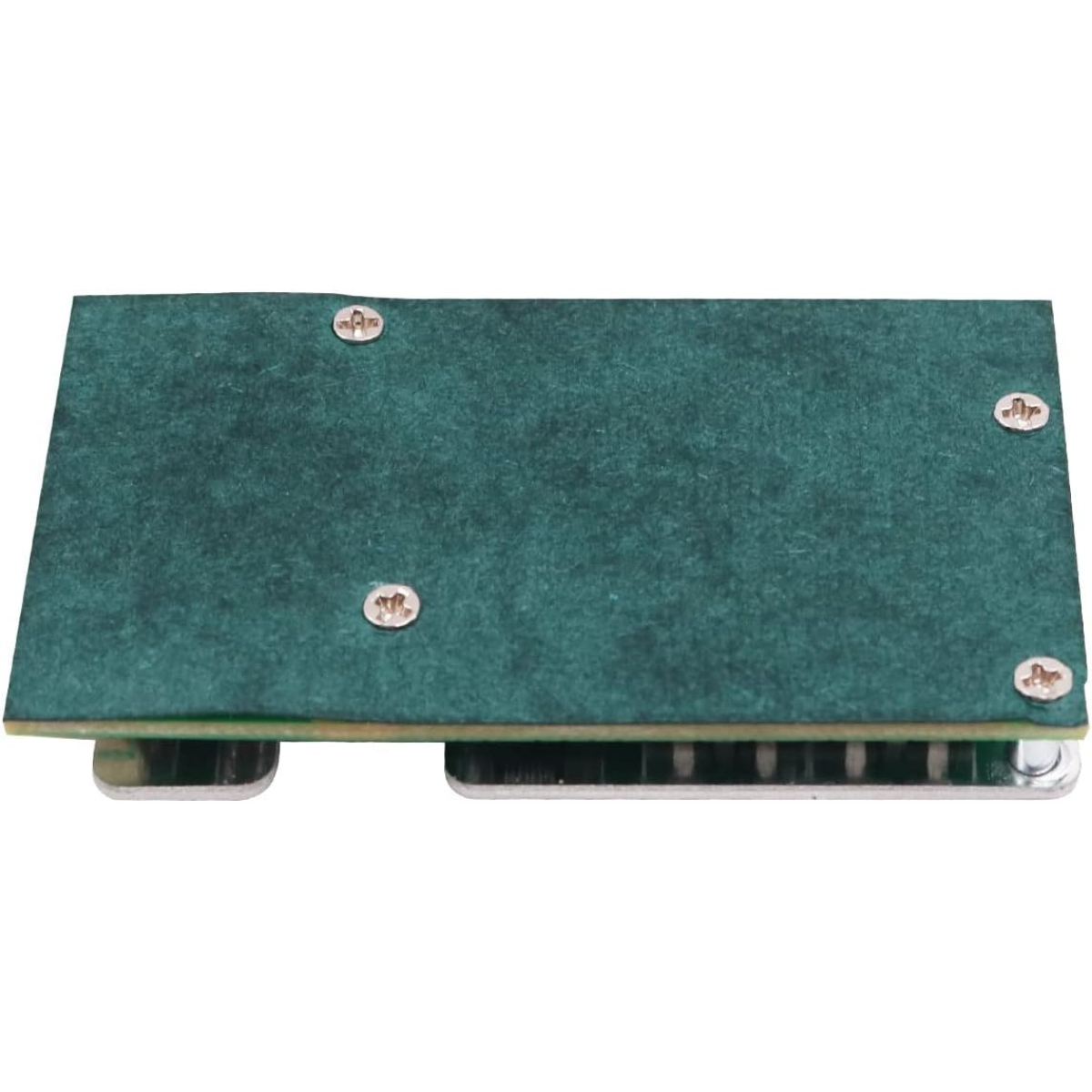

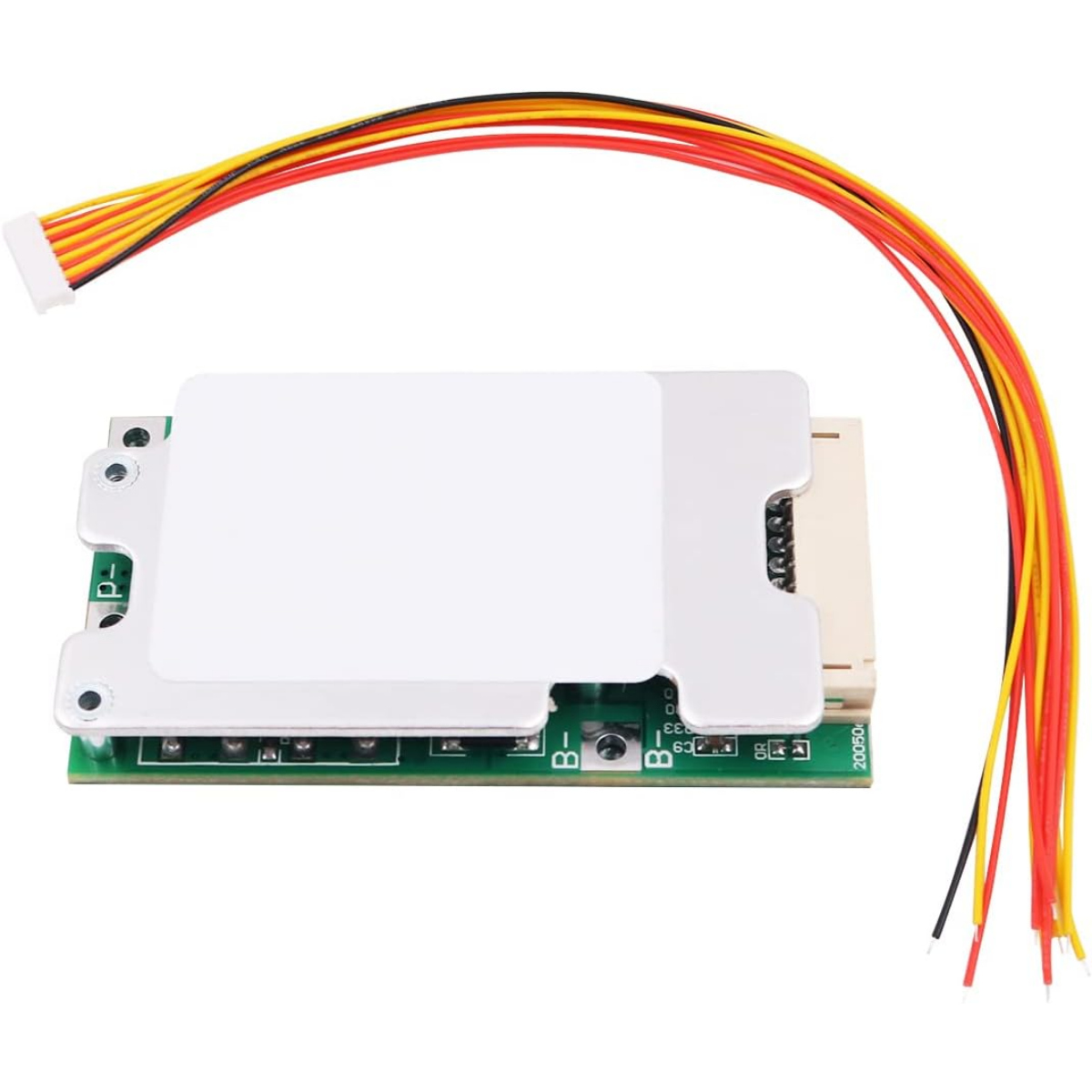

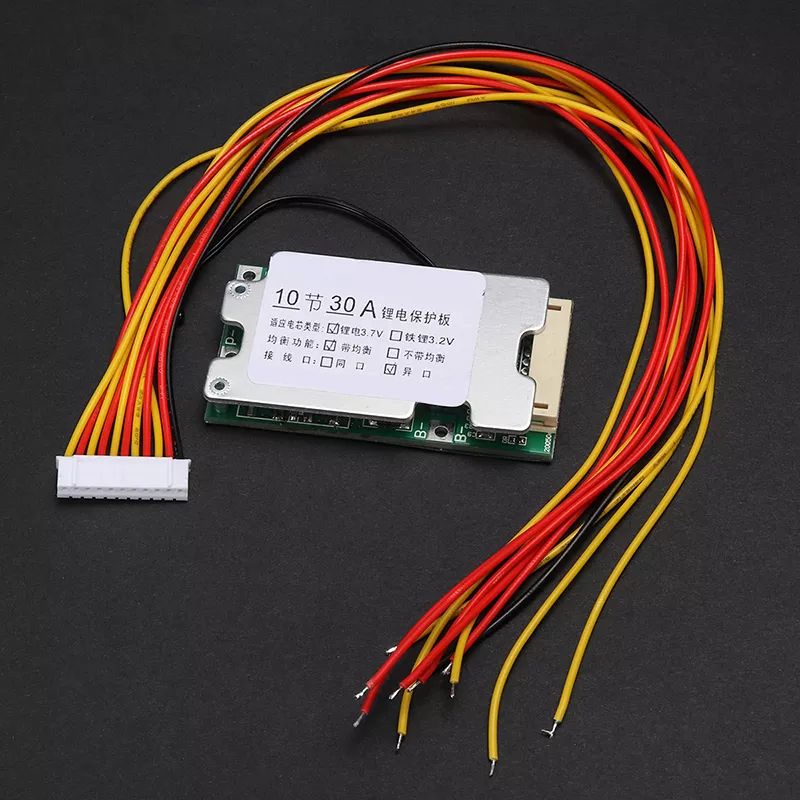

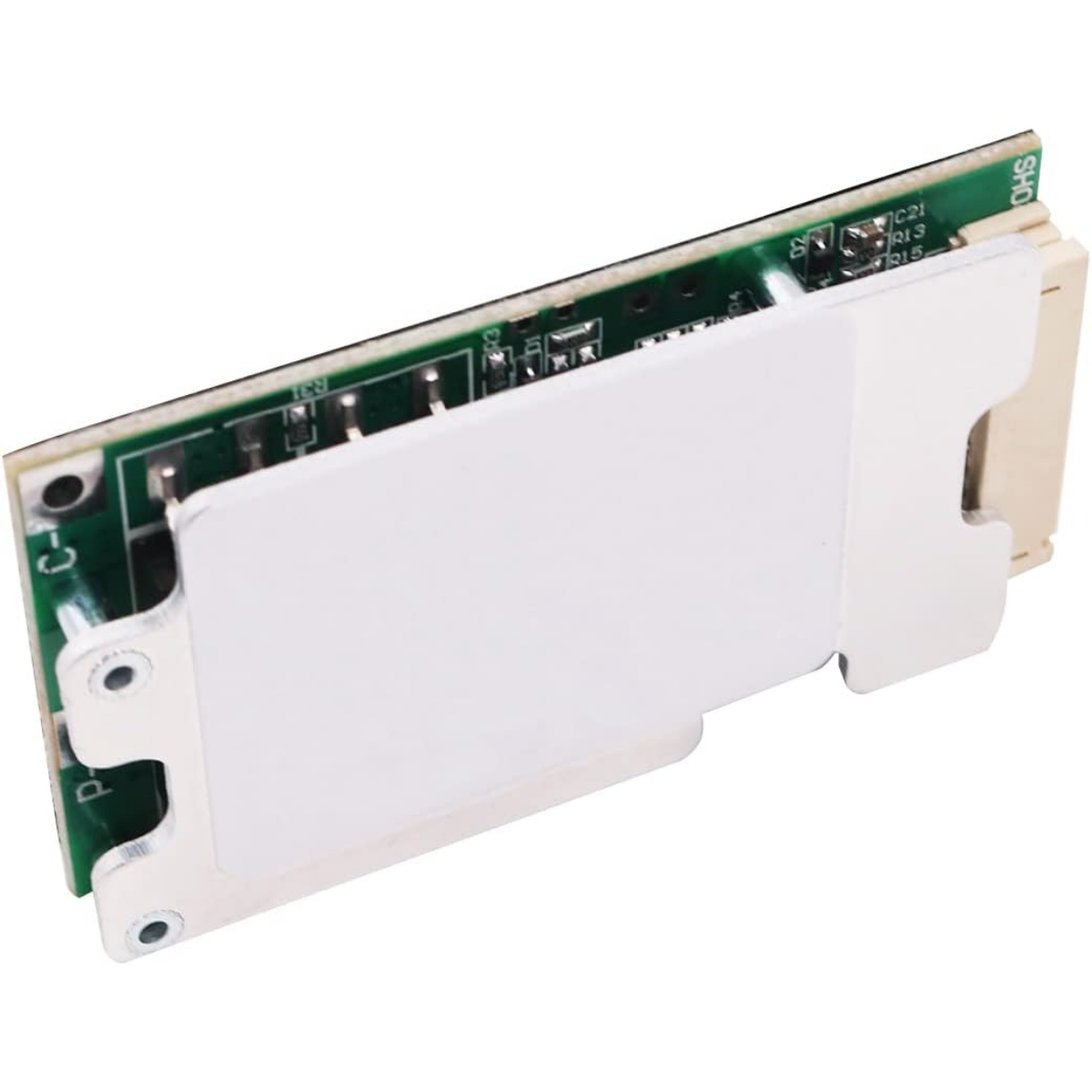

Lithium Battery Charger Protection Module (BMS) 10S 30A with Cell Balancing
Ensure the safety and longevity of your lithium battery packs with this robust 10S 30A BMS. Specifically designed for 3.7V Li-ion/Ternary cells (like 18650), this module acts as the “brain” of your battery, managing power flow and protecting against critical failures. It features a split-port design, meaning it has dedicated terminals for charging and discharging to optimize current handling and reduce heat. The integrated aluminum heat sink ensures stable operation even under high-load conditions, making it an ideal choice for high-power DIY projects.
Features
- Active Balancing.

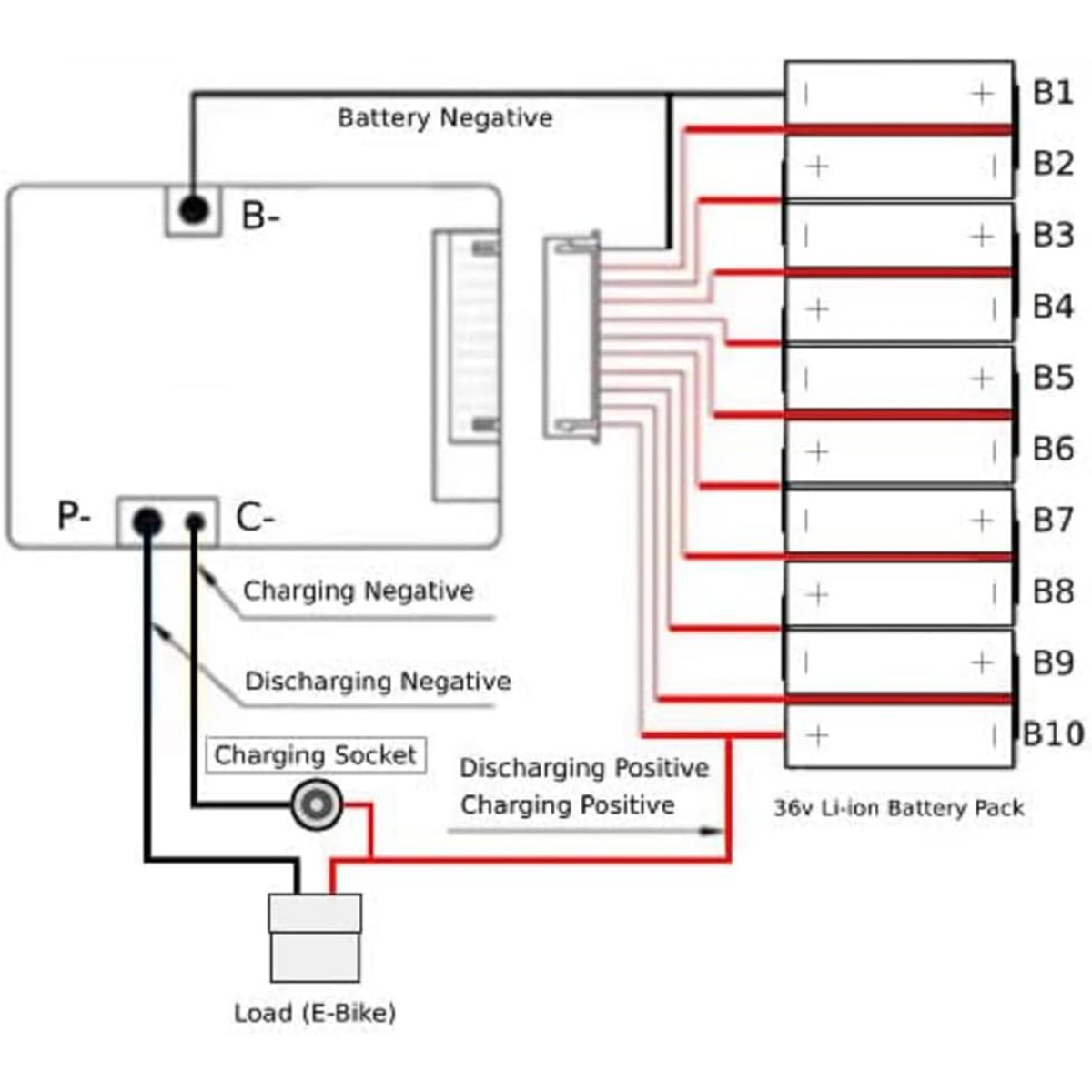

- Split Port Design.
- Comprehensive Protection:
- Overcharge Protection.
- Over-discharge Protection.
- Over-current & Short Circuit Protection.
- Thermal Management.
- High Reliability.
Specifications
| Parameter | Specification |
|---|---|
| Battery Configuration: | 10S (10 Cells in Series) |
| Battery Type: | 3.7V Li-ion / Ternary / Lithium Manganate |
| Nominal Voltage: | 36V |
| Continuous Discharge Current: | 30A |
| Dimensions: | 64mm×35mm×9mm |
Applications
- Electric Transportation.
- Power Tools.
- Solar Storage.
- Custom Battery Packs.
Package Content
