Lithium Battery Charger Protection Module (BMS) 3S 8A 12.6V

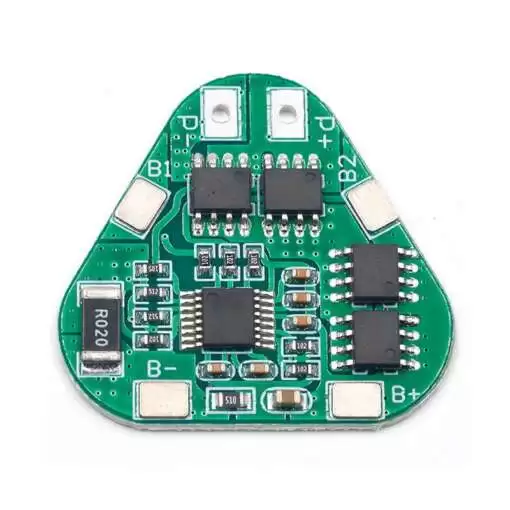

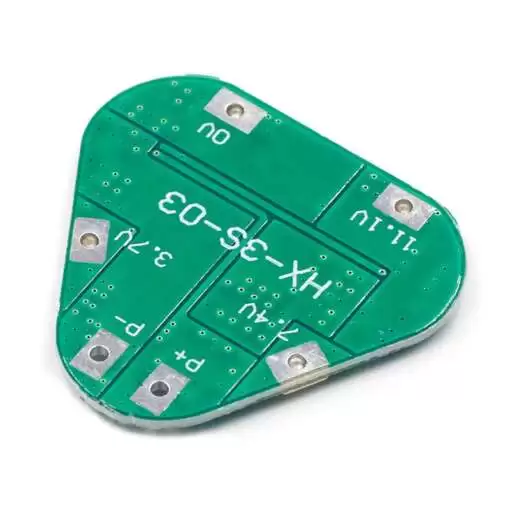

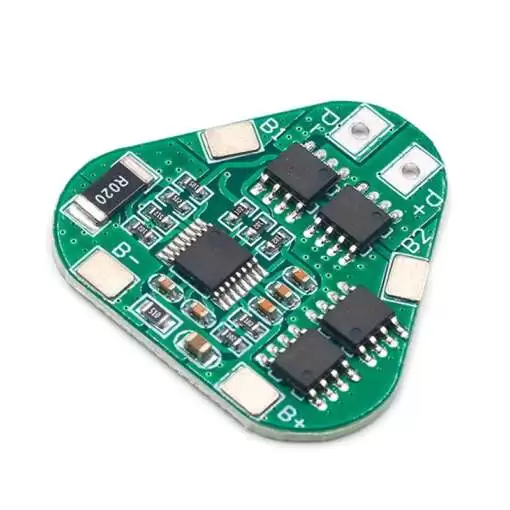

3s Li-Ion 8A 12.6V Triangle Protection board is a small PCB mounted Lithium Battery protection module. This small and smart protection module comes with various features like Short-circuits, Over-charge, Over-discharge and Over-current protection. It is straight forward to install and convenient to use in all your DIY portable projects.

Suitable for lithium-ion cells in a 12.6V (max Voltage) 3s configuration.

Product Features

• Short circuit protection
• Protection against overcharging
• Excessive Discharge Protection
• Overcurrent protection
• Compact size and lightweight.

Specifications:

• Charging Voltage: 12.6V
• Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
• Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
• Upper Limit Operating Current: 8A
• Upper Limit Instantaneous Current: 10A
• Quiescent Current: less than 30uA
• Internal Resistance: less than 45mohm
• Effective Life: more than 50,000 hours
• Operating Temperature: -40- +50 degrees
• Storage Conditions: -40- +80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
• Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
• Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
• Continuous charge current (upper limit): 8A.
