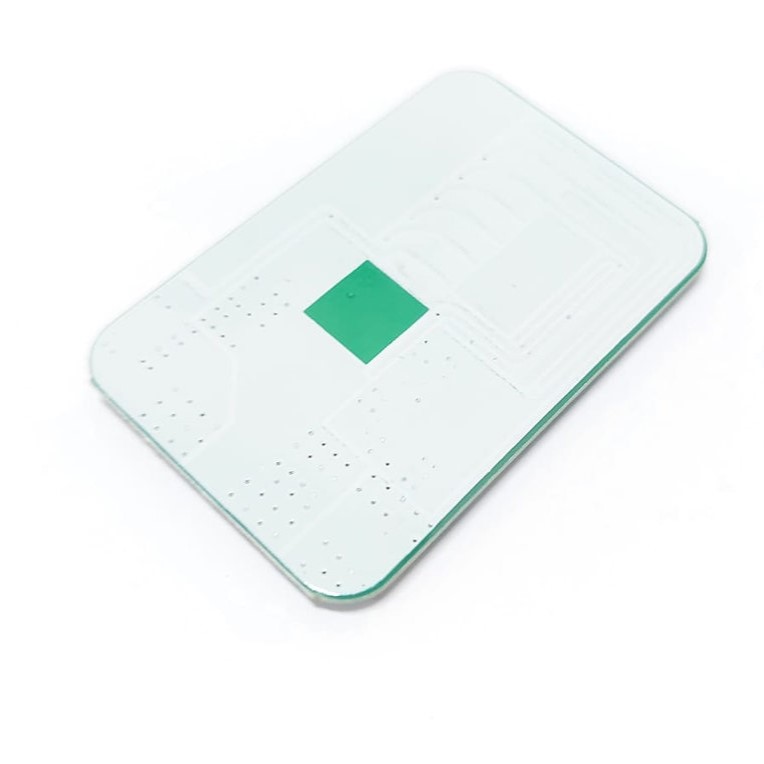

Lithium Battery Charging and Discharging Protection Module BMS 6S 12A 25.2V
PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board is a 6 string 22V circuit power tool mostly used for solar lighting, for dedicated 18650 battery packs. It is designed for 3.7V 18650 models lithium batteries for charging, Protection from overcharge and over-discharge. Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. Lithium battery (rechargeable type) so need protection, is determined by its own characteristics. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Protections
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
Features:
- Charging voltage: 25.5V
- maximum discharge current: 12A
- Instantaneous discharge current: 20A
- Overcharge detection voltage: 4.28 ± 0.05V
- Over discharge detection voltage: 2.55 ± 0.08V
- Over discharge detection delay: 0.1S
- The over-discharge release voltage: 2.9 ± 0.1V
- Temperature range: -30°C/ + 80°C
- Size: approx.54x36x3.5mm
- 6 strings (for 6 18650 batteries or polymer lithium batteries in series)
- 21.6V (rated voltage of polymer battery)
- 22.2V (rated voltage of 18650 or 3.7V lithium battery)
- 25.2V (voltage after the lithium battery is fully charged)
Application:
- Battery pack
- Power supply
- Power bank and charger

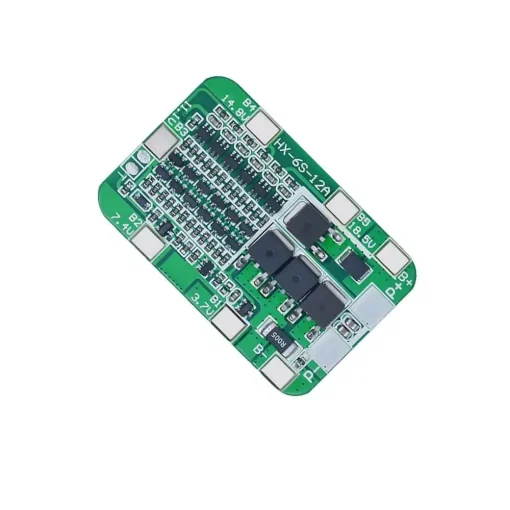

Welding point Description:
- B+ connect Battery positive end
- B1 connect the point between battery 1 and battery 2
- B2 connect the point between battery 2 and battery 3
- B3 connect the point between battery 3 and battery 4
- B4 connect the point between battery 4 and battery 5
- B5 connect the point between battery 5 and battery 6
- B- battery negative end
- P+ Charge/discharge positive end
- P- Charge/discharge negative end
