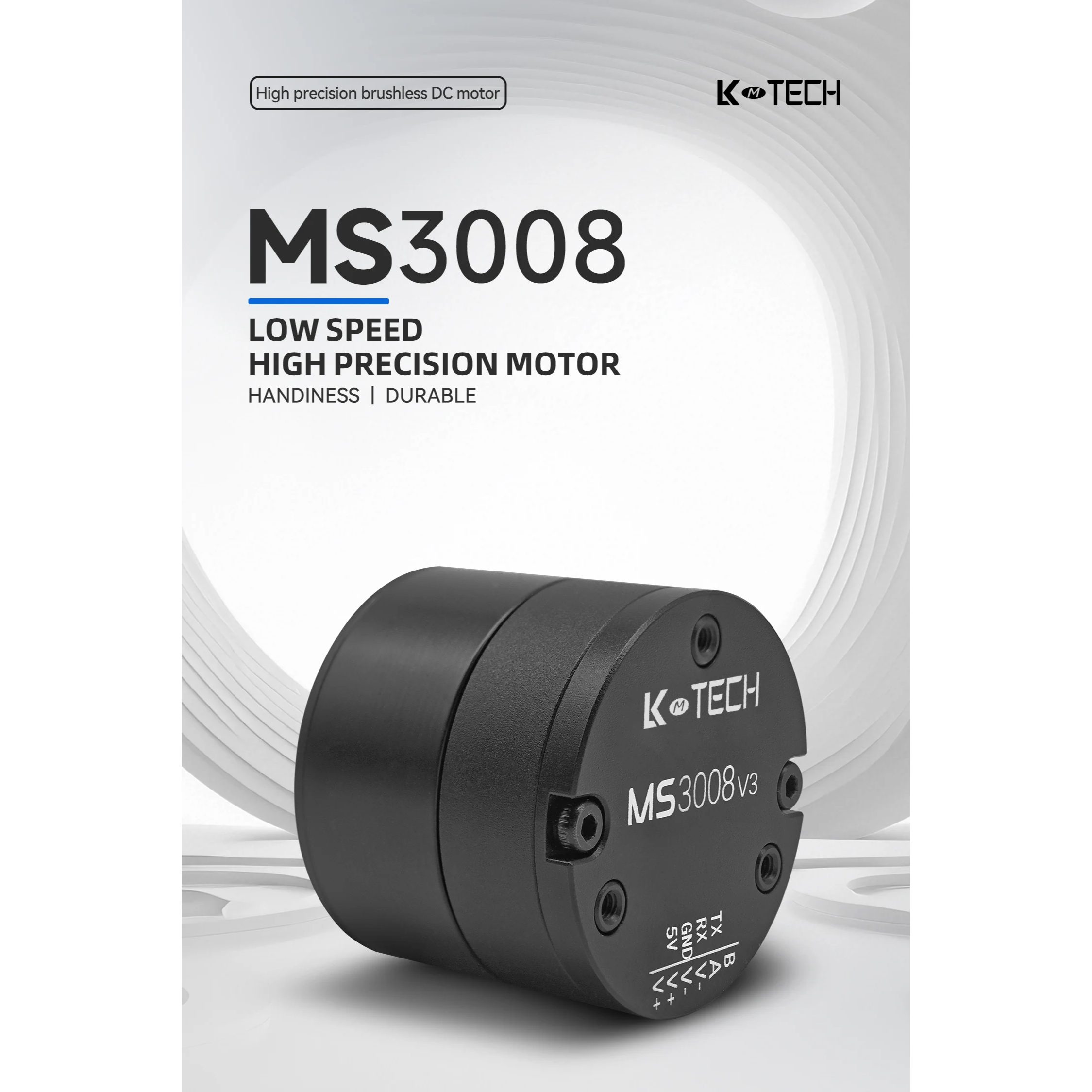

LKMTECH MS3008 V3 Servo BLDC Motor
The LKMTECH MS3008 V3 Servo BLDC Motor represents the pinnacle of precision engineering in the realm of brushless DC motors. Designed to meet the exacting standards of applications that require meticulous control and unwavering reliability at low speeds, this motor is a testament to LKMTECH’s commitment to innovation and quality. It is part of the MIS series, renowned for its compact design and exceptional performance, making it an ideal choice for applications such as pod heads, handheld cameras, laser radar systems, and 360° cameras.

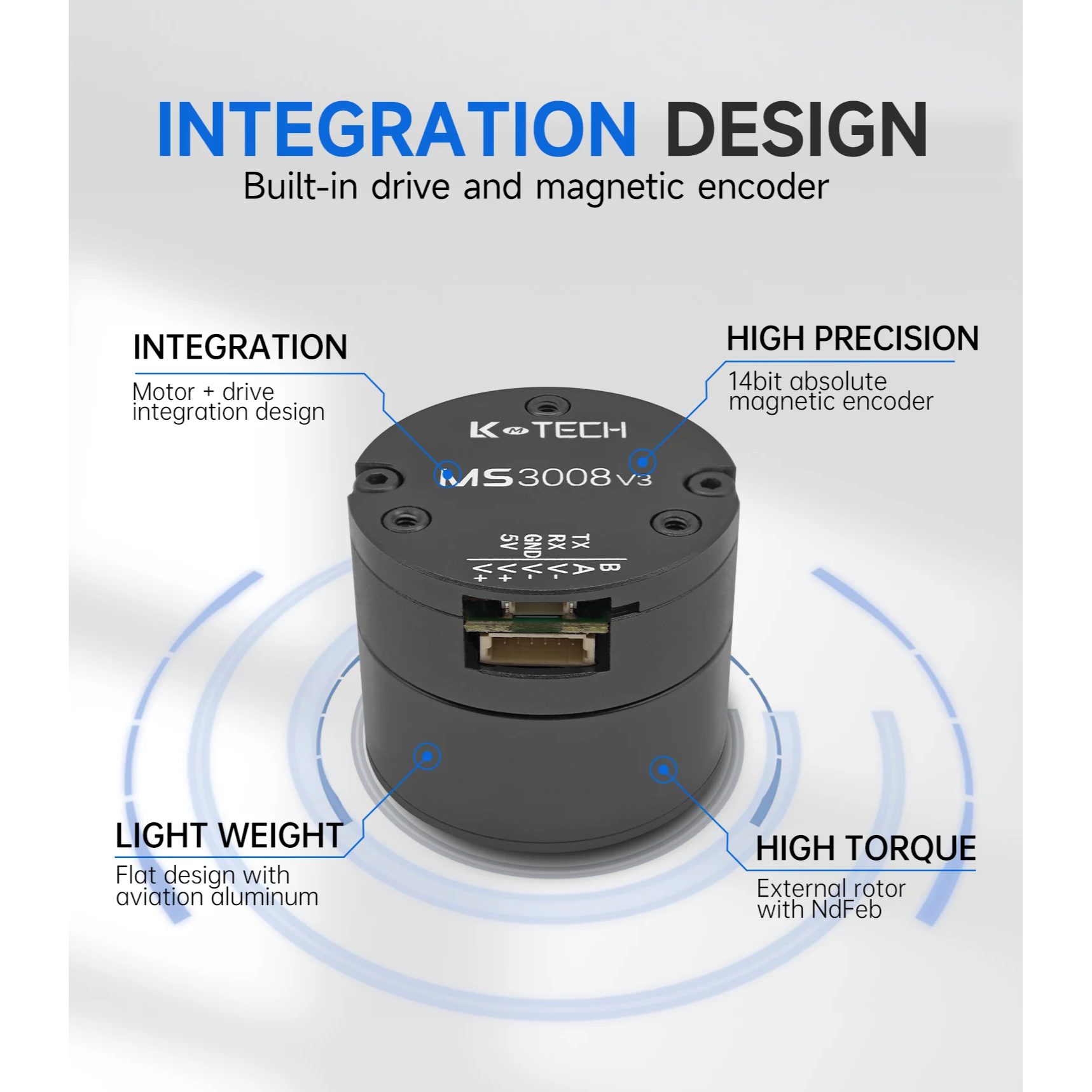

Features:
- Brushless structure with high-performance bearings for durability and smooth operation.
- Full N-tube three-phase full bridge drive for efficient power handling.
- 15-bit magnetic encoder for precise feedback.
Specifications:
| Parameter | Value |
|---|---|
| Turns | 54 |
| Rated Voltage (V) | 12 |
| Max Speed (rpm) | 2000 |
| Rated Torque (N.m) | 0.04 |
| Rated Speed (rpm) | 1160 |
| Rated Current (A) | 0.64 |
| Max Power (W) | 4.6 |
| Max Torque (N.m) | 0.09 |
| Speed Constant (rpm/V) | 96 |
| Torque Constant (N.m/A) | 0.06 |
| Winding Type | Y |
| Line Resistance (Ω) | 6 |
| Phase Inductance (mH) | 1.68 |
| Motor Poles | 14 |
| Rotor Inertia (gcm²) | 35 |
| Motor Temperature | YES |
| Bearing Rated Load (N) | 67 |
| Motor Weight (g) | 49 |
| Recommended Drive | D530v2 |
| Drive Input Voltage (V) | 6~16 |
| Communication | CAN |
| Communication Frequency (Hz) | CAN:1KHz(1Mbps) |
| Encoder | 15-bit Magnetic Encoder |
| Baudrate (RS485) (bps) | 9600, 19200, 57600, 115200, 230400, 406800, 1M, 2M |
| Control Mode | Open Loop (24KHz) / Speed Loop (4KHz) / Position Loop (2KHz) |
| Acceleration Curve | Trapezoidal acceleration |

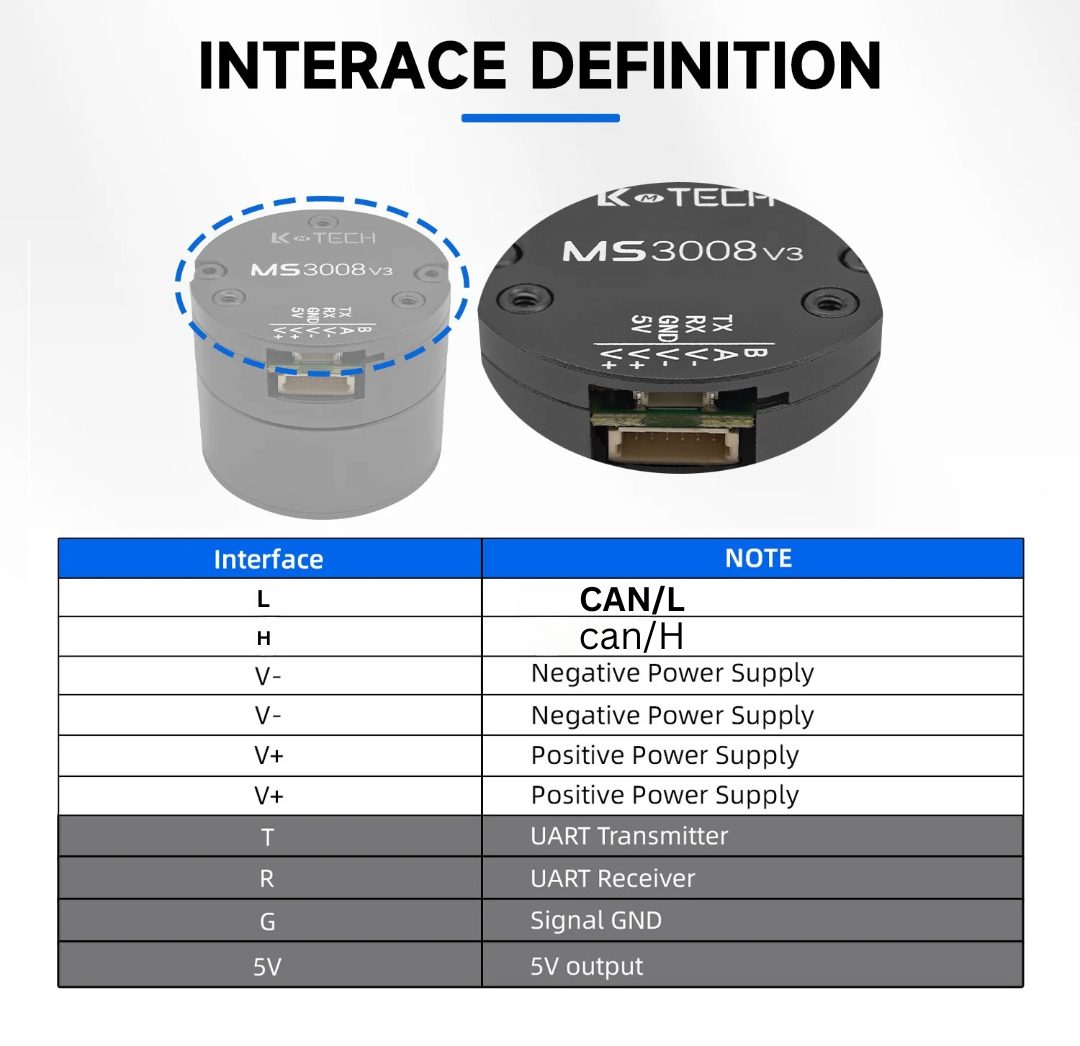

Configuration:
Application:
Package Include:
- 1x LKMTECH MS3008 V3 Servo BLDC Motor.
- 1x 6pin connection cable.
