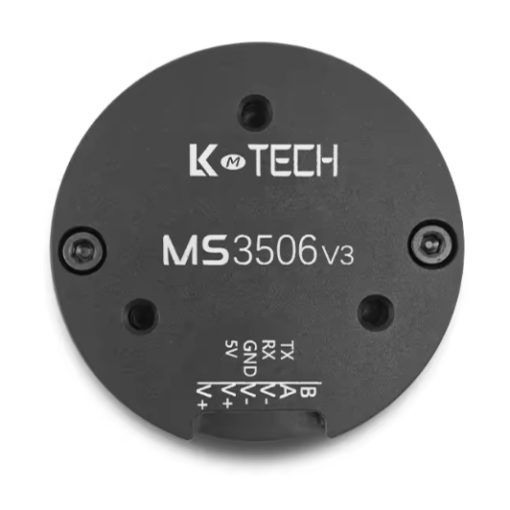

LKMTECH MS3506 V3 Servo BLDC Motor
The LKMTECH MS3506 V3 Servo BLDC Motor is a cutting-edge brushless DC motor engineered for applications demanding precise control and smooth operation at low speeds. Belonging to LKMTECH’s esteemed MS series, this motor delivers exceptional performance in a compact form factor, making it an ideal choice for applications such as pod heads, handheld cameras, laser radar systems, and 360° panoramic cameras. Its design caters to industries like robotics, automation, and aerospace, where precision and reliability are paramount.
Features:
- Advanced control system for torque, speed, and position control.
- Brushless design for enhanced durability and quiet operation.
- 15-bit magnetic encoder for precise feedback.
Specifications:
| Turns | 60 |
| Rated Voltage (V) | 12 |
| Max Speed (rpm) | 2100 |
| Rated Torque (N.m) | 0.05 |
| Rated Speed (rpm) | 1250 |
| Rated Current (A) | 0.79 |
| Max Power (W) | 6.4 |
| Max Torque (N.m) | 0.13 |
| Speed Constant (rpm/V) | 104 |
| Torque Constant (N.m/A) | 0.06 |
| Winding Type | Y |
| Line Resistance (Ω) | 4.5 |
| Phase Inductance (mH) | 1.47 |
| Motor Poles | 14 |
| Rotor Inertia (gcm²) | 58 |
| Motor Temperature | YES |
| Bearing Rated Load (N) | 91 |
| Motor Weight (g) | 50 |
| Recommended Drive | DS30v2 |
| Drive Input Voltage (V) | 6~16 |
| Communication | CAN |
| Communication Frequency (Hz) | CAN:1KHz(1Mbps) |
| Encoder | 15-bit Magnetic Encoder |
| Baudrate (RS485) (bps) | 9600, 19200, 57600, 115200, 230400, 406800, 1M, 2M |
| Control Mode | Open Loop (24KHz) / Speed Loop (4KHz) / Position Loop (2KHz) |
| Acceleration Curve | Trapezoidal acceleration |

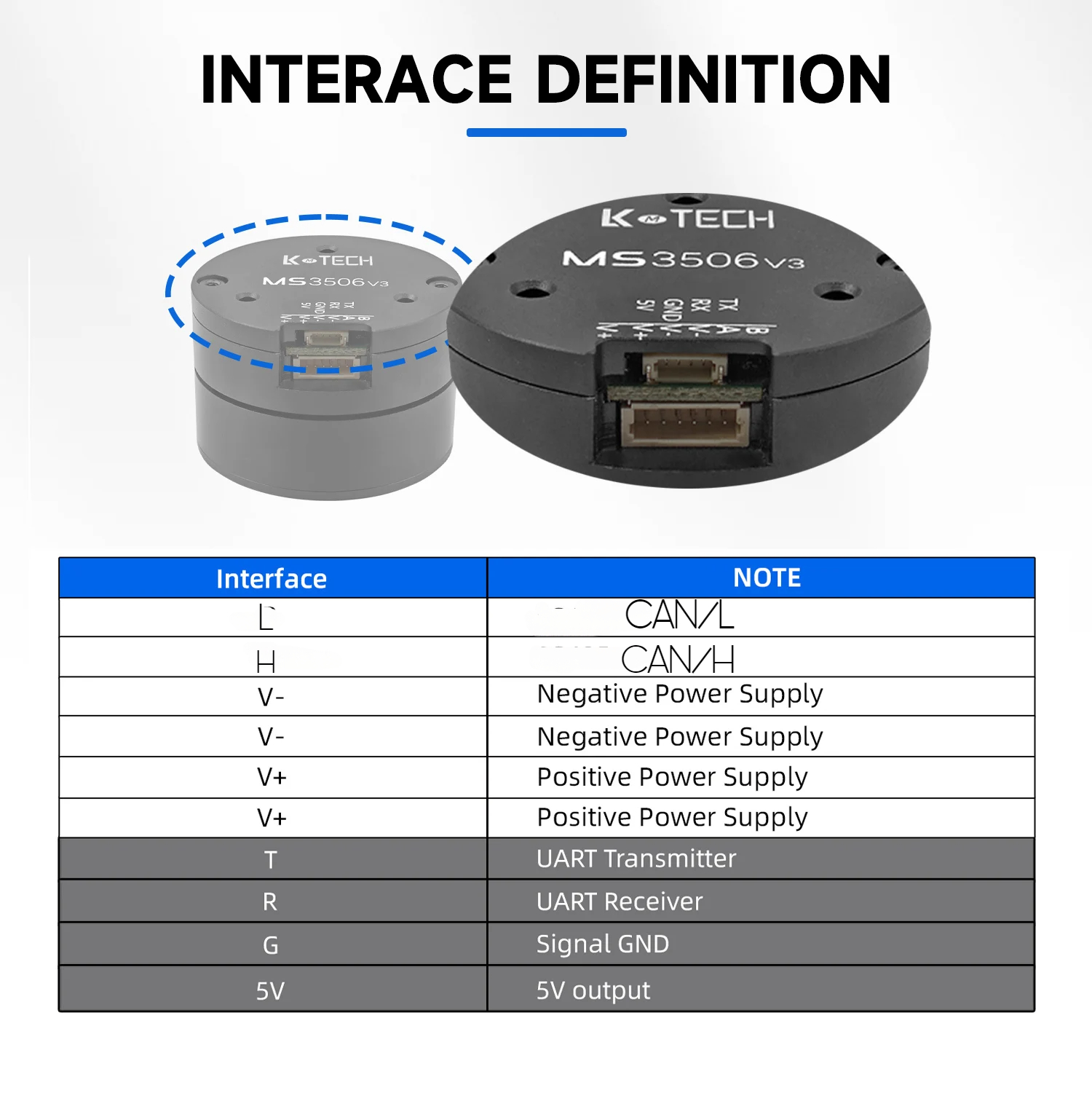

Configuration:
Application:
Package Include:
- 1x LKMTECH MS3506 V3 Servo BLDC Motor.
- 1x 6pin Connection Cable.
