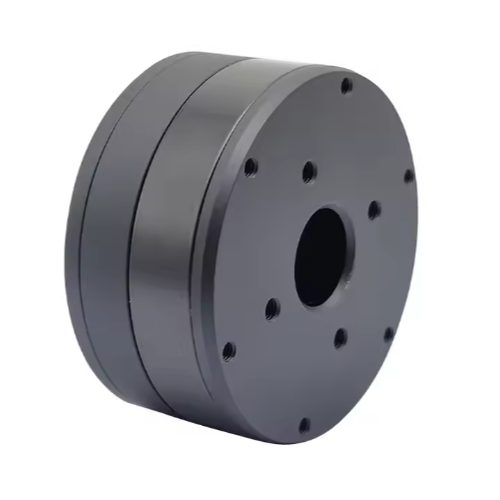

LKMTECH MS5005 V3 Servo BLDC Motor
The MS5005 V3 is a high-torque BLDC servo motor supporting CAN bus communication, designed for precise control in robotics and automation.
7,750.00 EGP
Buy NowLKMTECH MS5005 V3 Servo BLDC Motor
The LKMTECH MS5005 V3 Servo BLDC Motor is a state-of-the-art brushless DC motor engineered to deliver high torque and precise control for demanding applications. As a member of LKMTECH’s esteemed MS series, this motor combines compact design with robust performance, making it an excellent choice for robotics, automation, laser radar systems, and other precision motion control applications. Its advanced features and reliable operation cater to engineers and designers seeking high-performance solutions for complex systems.

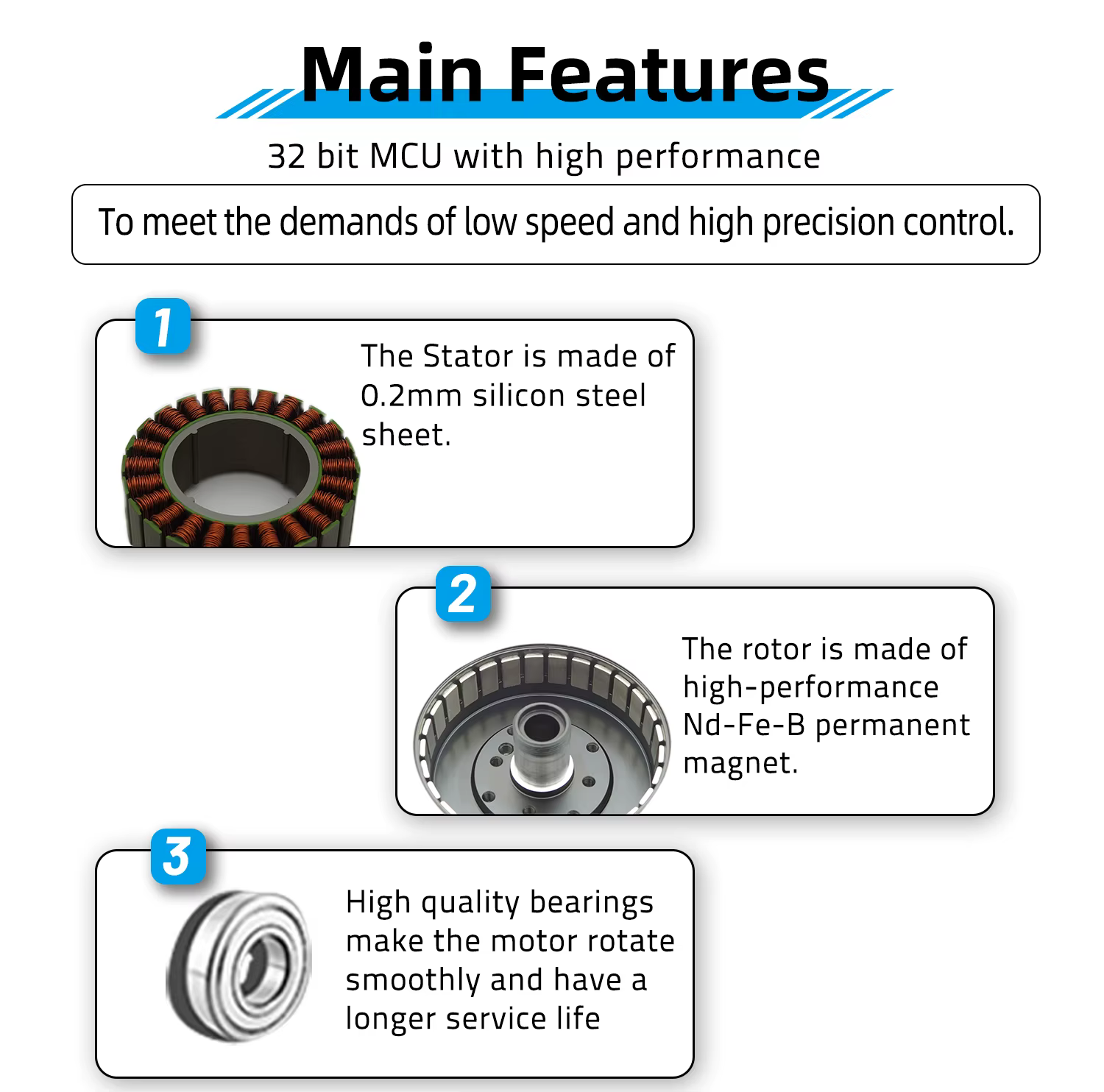

Features:
- Brushless design for durability and quiet operation.
- Supports CAN bus communication.
- High-resolution 15-bit or 18-bit magnetic encoder.
Specifications:
| Turns | 60 |
| Rated Voltage (V) | 16 |
| Max Speed (rpm) | 985 |
| Rated Torque (N.m) | 0.18 |
| Rated Speed (rpm) | 500 |
| Rated Current (A) | 0.8 |
| Max Power (W) | 6.7 |
| Max Torque (N.m) | 0.28 |
| Speed Constant (rpm/V) | 31.3 |
| Torque Constant (N.m/A) | 0.2 |
| Winding Type | Y |
| Line Resistance (Ω) | 6.6 |
| Phase Inductance (mH) | 2.83 |
| Motor Poles | 28 |
| Rotor Inertia (gcm²) | 136 |
| Motor Temperature Monitoring | YES |
| Bearing Rated Load (N) | 153 |
| Motor Weight (g) | 99 |
| Recommended Drive | DS40V3 |
| Drive Input Voltage (V) | 8.5~30 |
| Communication | CAN |
| Communication Frequency (Hz) | CAN: 1KHz (1Mbps) |
| Encoder | 18-bit Magnetic Encoder |
| Baudrate (RS485) (bps) | 9600, 19200, 57600, 115200, 230400, 406800, 1M, 2M |
| Baudrate (CAN) (bps) | 100K, 125K, 250K, 500K, 1M |
| Control Mode | Open Loop (24KHz) / Speed Loop (8KHz) / Position Loop (8KHz) |
| Acceleration Curve | Trapezoidal Acceleration |

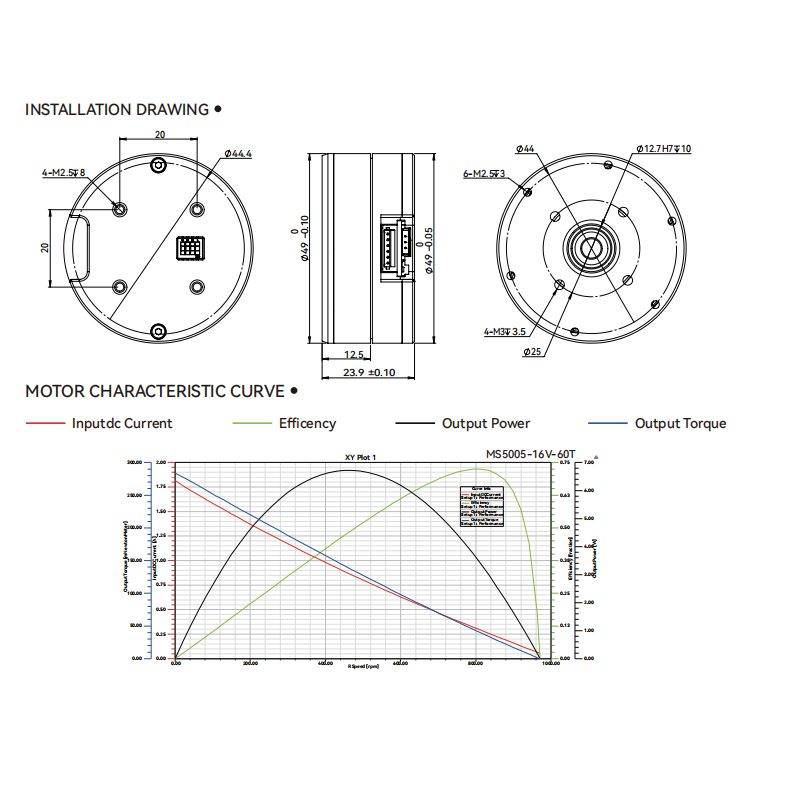

Configuration:
Application:
Package Include:
- 1x LKMTECH MS5005 V3 Servo BLDC Motor.
- 1x 6 Pin Connection Cable.
Data Sheet:
Software & Driver installation:
