LM2480 80V Triple Bias Clamp Dip IC 8 pin

10.00 EGP

Buy Now
Availability: In Stock
SKU:3496300083992
Features:
  • Wide range integrated triple bias clamp
  • High input impedance
  • Single supply operation
  • Matched to the LM126X family of preamplifiers
Application

CRT monitors requiring DC restoration at the cathodes

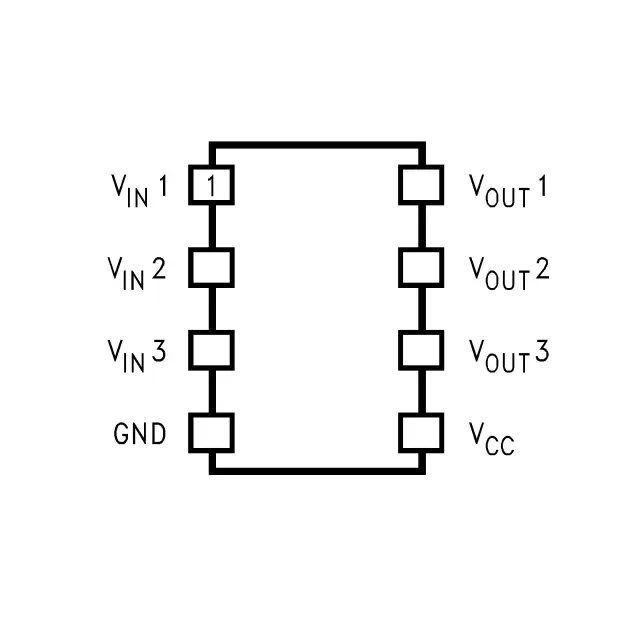

Pinout
Specifications
  • Supply Voltage, VCC                                                      +90V
  • Input Voltage, VIN                                                    0V to 5V
  • Storage Temperature Range, TSTG             -65°C to +150°C
  • Lead Temperature (Soldering, <10sec.)                      300°C
  • ESD Tolerance Machine Model                                       200V
  • Human Body Model                                                         2KV
LM2480 Datasheet
