LM339D 5mV 0.25uA 4 SOIC-14 Comparator SMD IC
The LM339D is a high-performance integrated circuit containing four independent voltage comparators. It is designed to operate from a single power supply over a wide voltage range and is ideal for low-power applications in industrial, automotive, and consumer electronics.
✅Features
- Quad Comparison: Four independent differential comparators in a single SOIC-14 package.
- Wide Supply Range: Operates on a single supply voltage from 2V to 30V.
- Ground-Sensing Input: Common-mode input voltage range includes ground, allowing direct sensing near 0V.
- High Differential Input: Differential input voltage range is equal to the maximum-rated supply voltage (±36V).
- Low Input Parameters: Features a low input offset voltage (5mV max) and low input bias current (250nA max).
- Logic Compatibility: Outputs are fully compatible with TTL, MOS, and CMOS logic systems.
- Low Power Consumption: Quiescent current is independent of the supply voltage magnitude.
📜📚Specifications
| Parameter | Typical Value | Maximum Value | Unit |
|---|---|---|---|
| Supply Voltage (VCC) | — | 2 to 30 | V |
| Input Offset Voltage (at 25°C) | 2 | 5 | mV |
| Input Bias Current (at 25°C) | 25 | 250 (0.25µA) | nA |
| Input Offset Current (at 25°C) | 5 | 50 | nA |
| Total Supply Current (VCC=5V to 30V) | 1 | 2.5 | mA |
| Response Time (100mV step, 5mV overdrive) | 1.3 | — | µs |
| ESD Rating (Human-Body Model) | 2000 | — | V |
| Operating Temperature Range | 0 | 70 | °C |

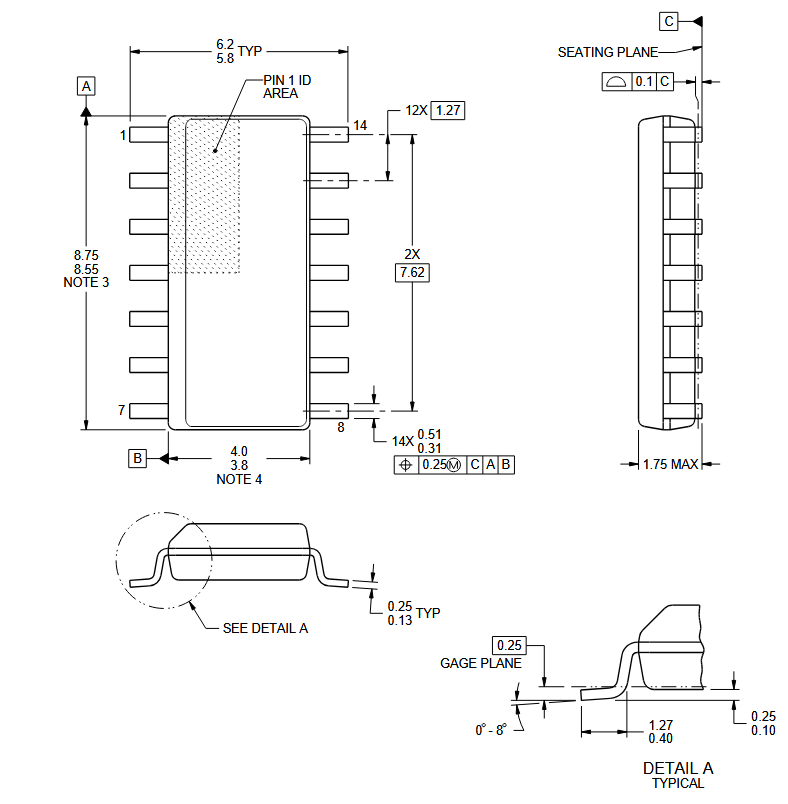

⚓Pin Configuration (SOIC-14 Package)

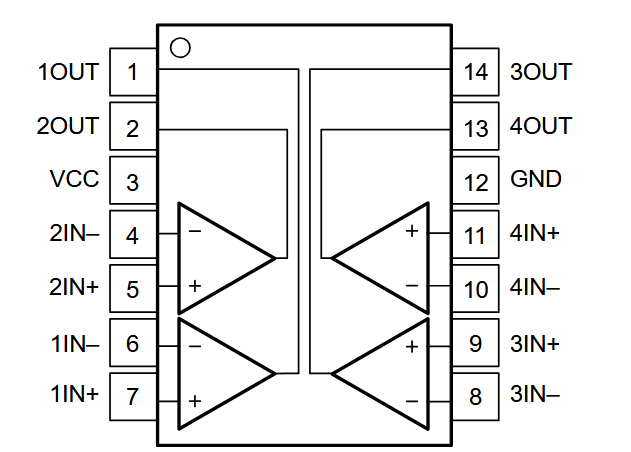

| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | OUT2 | Output of Comparator 2 |
| 2 | OUT1 | Output of Comparator 1 |
| 3 | VCC | Positive Supply Voltage |
| 4 | IN1- | Negative Input of Comparator 1 |
| 5 | IN1+ | Positive Input of Comparator 1 |
| 6 | IN2- | Negative Input of Comparator 2 |
| 7 | IN2+ | Positive Input of Comparator 2 |
| 8 | IN3- | Negative Input of Comparator 3 |
| 9 | IN3+ | Positive Input of Comparator 3 |
| 10 | IN4- | Negative Input of Comparator 4 |
| 11 | IN4+ | Positive Input of Comparator 4 |
| 12 | GND | Ground / Negative Supply |
| 13 | OUT4 | Output of Comparator 4 |
| 14 | OUT3 | Output of Comparator 3 |
Note: Pin names for channels 1 and 2 may be transposed depending on the manufacturer, but the electrical pinout remains identical.
