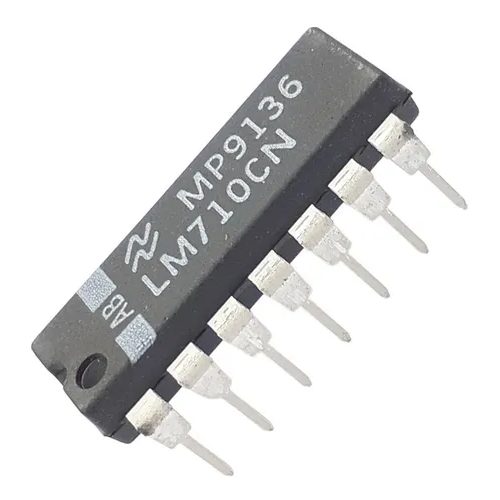

LM710CN Voltage Comparator IC PDIP-14
The LM710CN Voltage Comparator IC PDIP-14 is a high-speed voltage comparator intended for use as an accurate, low-level digital level sensor or as a replacement for operational amplifiers in comparator applications where speed is of prime importance. The circuit has a differential input and a single-ended output with saturated output levels compatible with practically all types of integrated logic.
The device is built on a single silicon chip which insures low offset and thermal drift. The use of a minimum number of stages along with minority-carrier lifetime control makes the circuit much faster than operational amplifiers in saturating comparator applications. In fact, the low stray and wiring capacitances that can be realized with monolithic construction make the device difficult to duplicate with discrete components operating at equivalent power levels.
Features
- High-speed comparator with typical response time ~40ns for small overdrives, enabling fast threshold detection and pulse discrimination.
- Low input offset voltage and low input bias to minimize error at the decision threshold.
- Single-ended output with useful sink/source capability.
- Peak output current up to 10mA for driving logic stages or small transistors.
- Available in PDIP-14 and for easy prototyping and board-level replacement.
PINOUT
| Pin | Name | Description |
|---|---|---|
| 1 | NC | No Connection |
| 2 | GND | Ground |
| 3 | +IN | Non-Inverting Input |
| 4 | –IN | Inverting Input |
| 5 | NC | No Connection |
| 6 | V– | Negative Supply Voltage |
| 7 | NC | No Connection |
| 8 | NC | No Connection |
| 9 | OUT | Output |
| 10 | NC | No Connection |
| 11 | V+ | Positive Supply Voltage |
| 12 | NC | No Connection |
| 13 | NC | No Connection |
| 14 | NC | No Connection |
Specifications
Absolute Maximum Ratings
| Positive Supply Voltage | +14V |
| Negative Supply Voltage | −7V |
| Peak Output Current | 10mA |
| Output Short Circuit Duration | 10 seconds |
| Differential Input Voltage | ±5V |
| Input Voltage | ±7V |
| Power Dissipation | 950mW |
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | −65°C to +150°C |
| Lead Temperature (Soldering, 10 sec.) | 260°C |
Note: for full electrical specifications, performance curves, or test circuits, please read the datasheet at the end of the page.
Applications
- High-speed threshold detection and pulse-height discrimination circuits.
- A/D converter front-end comparators and fast sampling/strobe logic.
- Schmitt trigger and level-shifting interfaces for mixed-signal designs.
- Line receivers, alarm and test equipment requiring fast, low-offset comparators.
- General-purpose fast comparator replacement in legacy and new designs.
Package Contents
- 1x LM710CN Voltage Comparator IC PDIP-14.
Documents
| Datasheet | LM710CN |
| CAD Files | Download |
