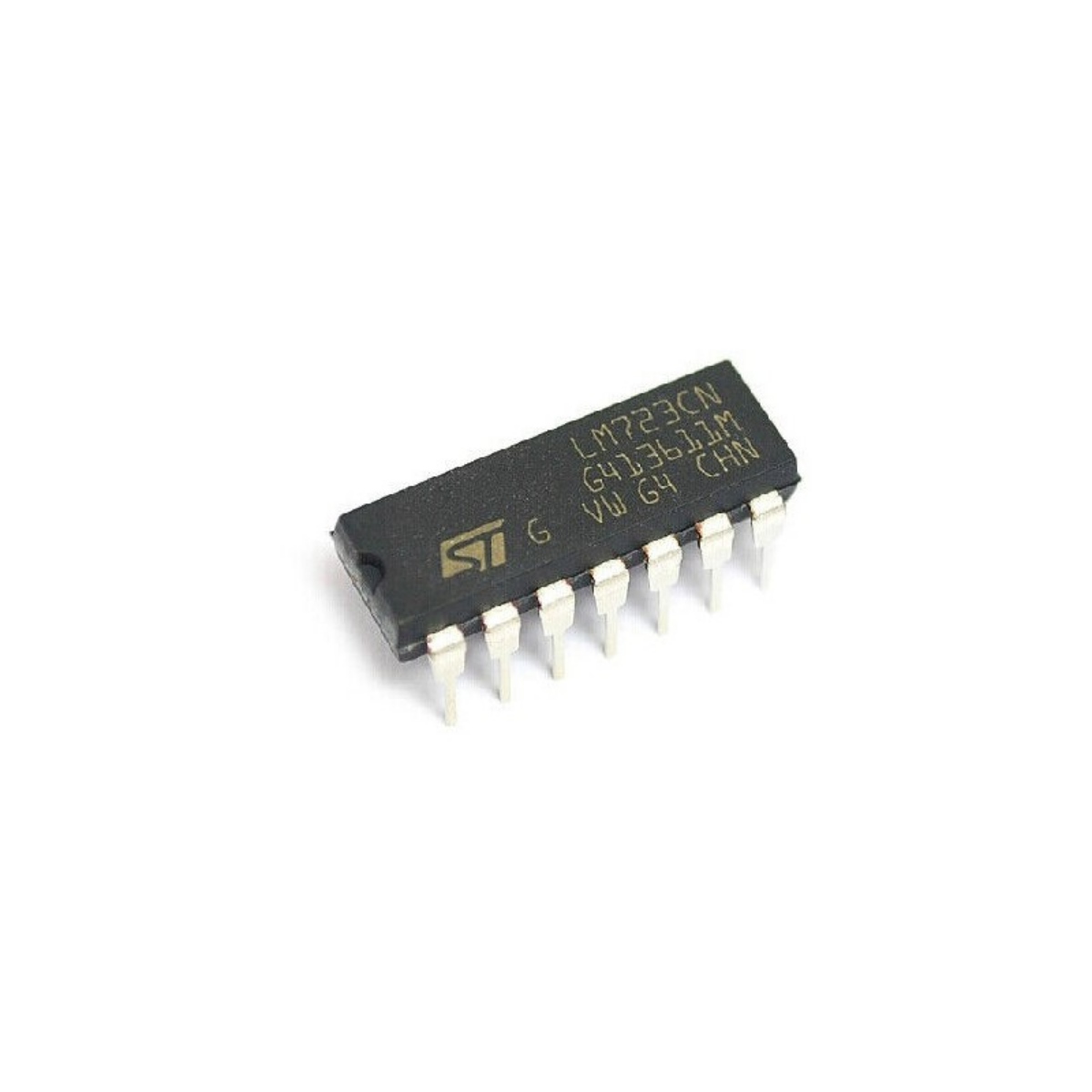

LM723CN Voltage Regulator

LM723CN Voltage Regulator

The LM723CN is a versatile voltage regulator designed to serve as a precision, adjustable power supply, and current regulation device. It is capable of providing a stable output voltage from 2V up to 37V, with a maximum output current of 150mA internally, which can be enhanced with external pass transistors for higher currents. This makes it suitable for a broad range of applications, including power management in electronic systems, battery chargers, and adjustable power supplies.

Features:

• Input Voltage Up to 40V.
• Output Voltage Adjustable From 2 to 37V.
• Positive or Negative Supply Operation.
• Series, Shunt, Switching or Floating Operation.
• Output Current to 150mA Without External Pass Transistor.
• ADJUSTABLE CURRENT LIMITING.

Specifications:

Pin Configuration:

• NC: No connection.
• CURRENT LIMIT: Sets the current limit with an external resistor.
• CURRENT SENSE: Monitors output current via a sensing resistor.
• INVERTING INPUT: Inverting input for internal comparator; used for feedback.
• NON-INVERTING INPUT: Non-inverting input for comparator; reference voltage comparison.
• VREF: Provides stable internal reference voltage (approx. 7.15V).
• V-: Connects to negative power supply or ground.
• NC: No connection.
• Vz: Sets Zener diode reference voltage for regulation.
• Vout: Provides regulated output voltage.
• Vc: Connects to frequency compensation network.
• V+: Connects to positive power supply.
• FREQUENCY COMPENSATION: Connects compensation network to stabilize regulator.
• NC: No connection.

Footprint:

Applications:

• Power supply designs.
• Battery chargers.
• Voltage reference circuits.
• Overvoltage and overcurrent protection.
• Linear regulators.
• Lab equipment and test instruments.
• Remote shutdown circuits.

Package Include:

1x LM723CN Voltage Regulator

Datasheet:

LM723CN
