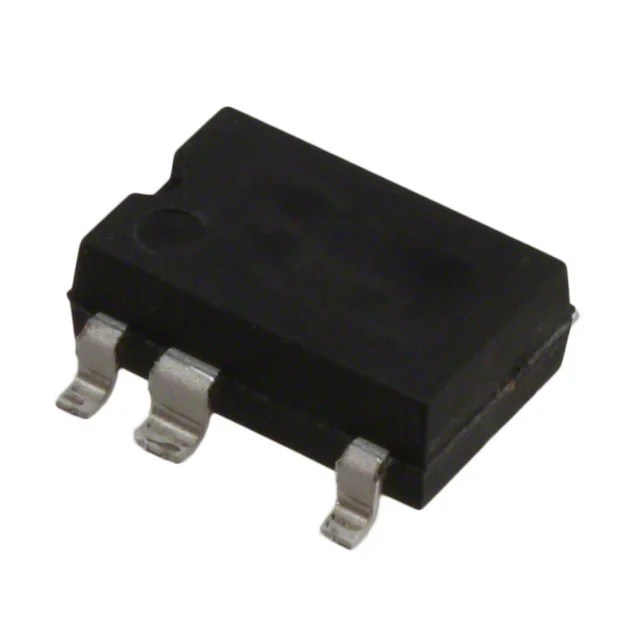

LNK3209G-TL AC to DC Controller Off-Line Switcher SMD-7P

LNK3209G-TL AC to DC Controller Off-Line Switcher SMD-7P

The LNK3209G-TL is an advanced integrated circuit from the LinkSwitch-TN2 family, engineered for non-isolated off-line power conversion. This device combines a high-voltage 725V power MOSFET with control circuitry to deliver efficient performance in buck, buck-boost, and flyback configurations. It excels in applications requiring minimal standby power and robust protection features, ensuring reliable operation across a wide input voltage range. With its compact SMD-8C package and frequency jittering for reduced EMI, the LNK3209G-T-L simplifies design while meeting global energy efficiency standards.

Features:

• Integrated 725V MOSFET for high surge withstand.
• Supports buck, buck-boost, and flyback topologies.
• Selectable current limit modes for optimized output.
• Frequency jittering to minimize EMI filter requirements.
• Auto-restart for short-circuit and open-loop protection.
• Output overvoltage and line input overvoltage protection.

Specifications:

Pin Configuration:

Applications:

• Appliances and white goods.
• Metering and smart utility devices.
• Smart LED drivers and lighting controls.
• Industrial controls and automation systems.
• IoT devices and sensors.
• Home and building automation.

Package Include:

1x LNK3209G-T-L AC to DC Controller Off-Line Switcher SMD-7P

Datasheet:

LNK3209G-TL
