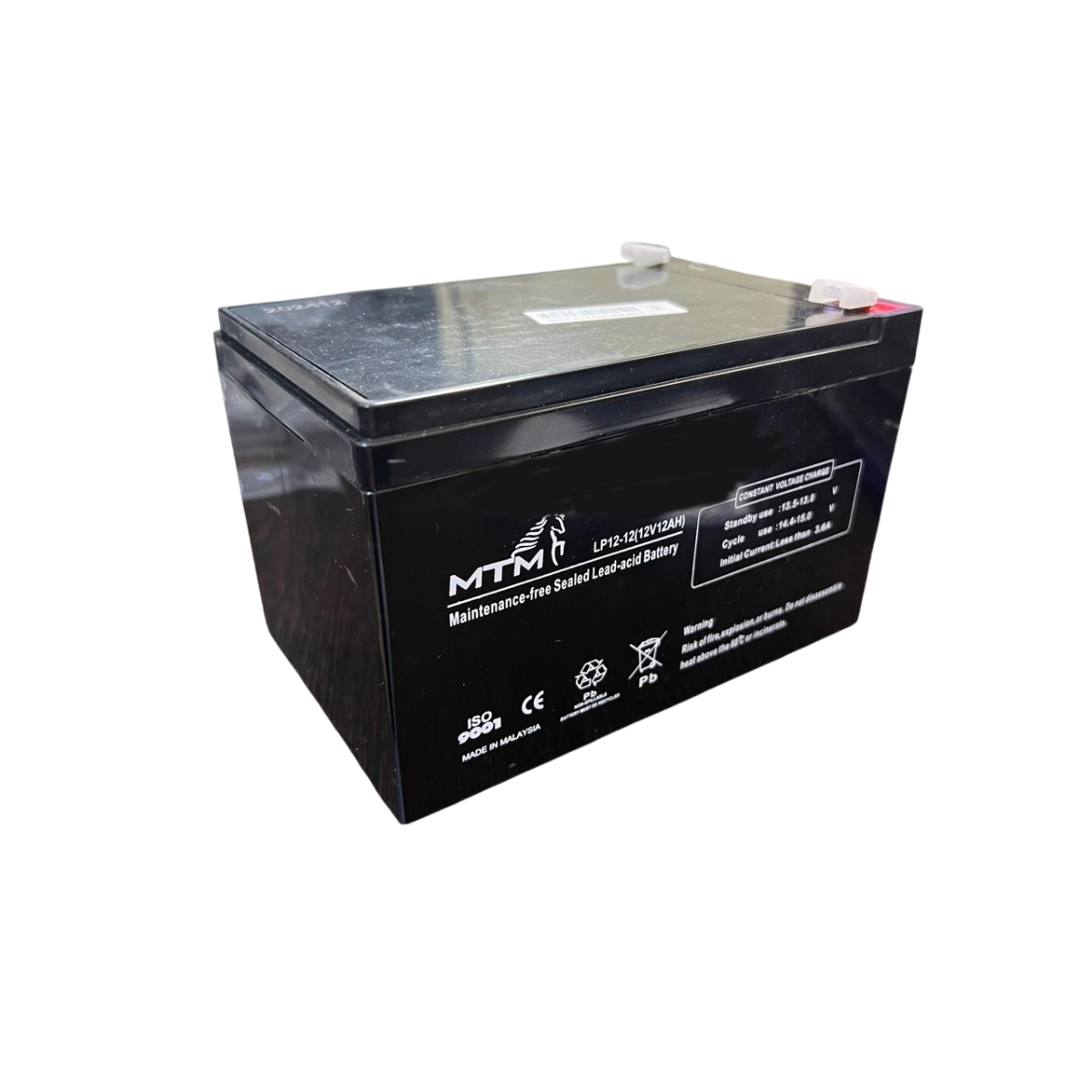

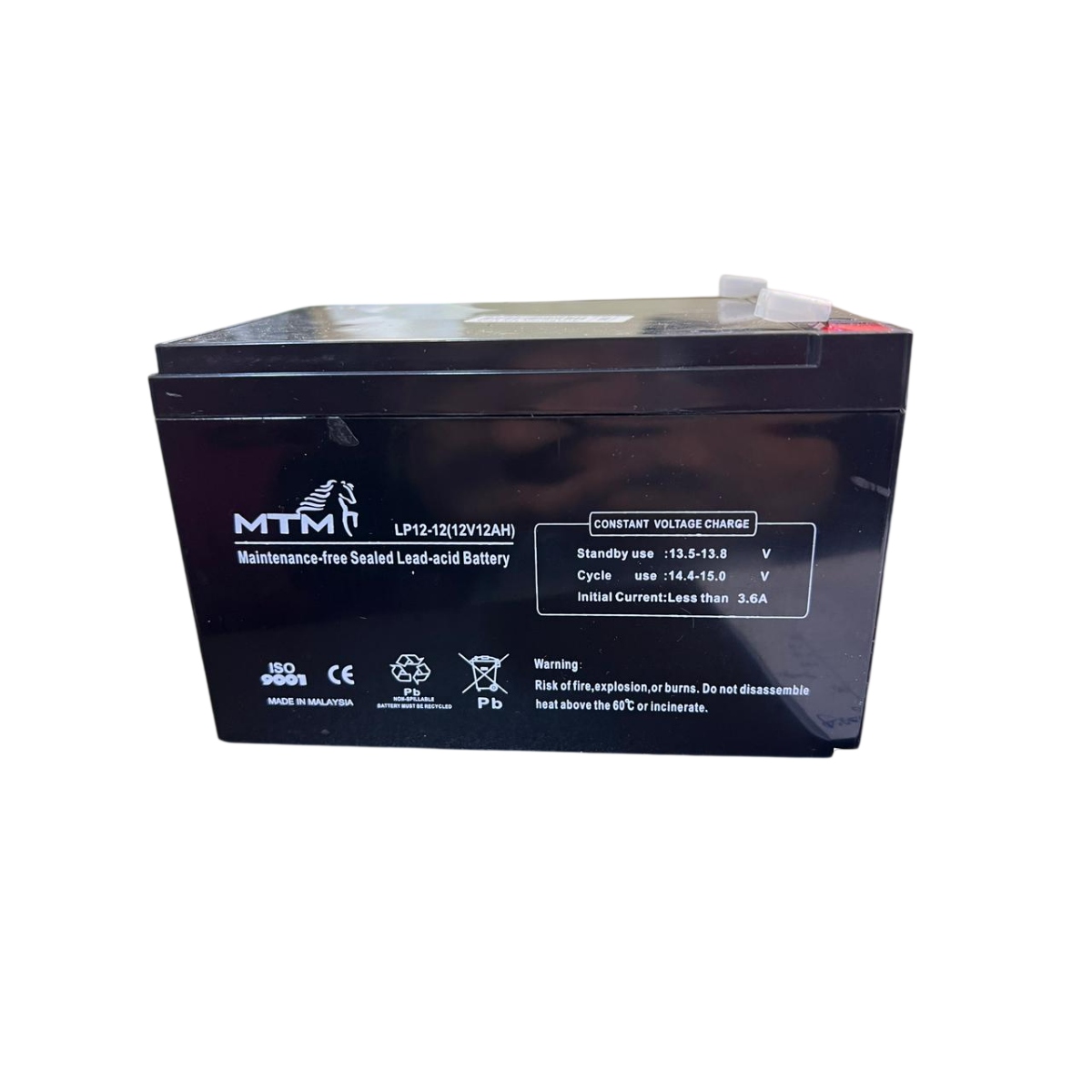

LP12-12 Acid Battery 12V 12Ah
The LP12-12 12V 12Ah Acid Battery is a maintenance-free, valve-regulated lead-acid (VRLA) battery designed to deliver reliable electrical power for a wide variety of applications. Using sealed technology, it eliminates the need for regular fluid topping-up, reduces the risk of leaks, and allows safe installation in a range of orientations. This compact battery is engineered to be durable and robust, with a rugged ABS casing that withstands vibration and typical handling while ensuring long-term performance.
With its 12 AH capacity at a nominal 12 V, this battery is well-suited for both standby systems where uninterrupted power is expected and light cyclic use where occasional discharge and recharge occur. Its sealed design ensures safe indoor use and low self-discharge, making it a practical choice for installations where consistent power delivery and low maintenance are key priorities.
Features:
- Sealed, maintenance-free design.
- Valve-regulated lead-acid (VRLA) technology.
- Compact and rugged ABS housing.
- Spill-proof and safe for indoor installation.
- Reliable power delivery with consistent voltage.
- Suitable for both standby and light cyclic applications.
- Easy installation with standard terminal connections.
- Durable construction for long service life.
Specifications:
| Parameter | Value |
|---|---|
| Battery Type: | Sealed Lead-Acid (SLA / VRLA) |
| Nominal Voltage: | 12VDC |
| Rated Capacity: | 12Ah (20hr rate) |
| Technology: | Valve-Regulated Lead Acid |
| Terminal Type: | F2 / Faston tabs |
| Float Charge Voltage: | ~13.5 – 13.8V |
| Cycle Charge Voltage: | ~14.4 – 15.0V |
| Initial Current: | Less Than 3.6A |
| Container Material: | ABS Plastic |
| Weight: | ~3350g |
| Operating Temp. Range: | Discharge: -15°C to +50°C |
| Storage Temp. Range: | -15°C to +40°C |
| Design Life: | ~3-5 years standby |
Pinout:
| Terminal | Function |
|---|---|
| + | Positive DC output |
| – | Negative DC output |
Applications:
- Uninterruptible Power Supply (UPS) systems.
- Emergency and exit lighting.
- Alarm and security systems.
- Telecommunications and networking backup.
- Solar energy storage (small setups).
- Portable power and tools.
- Mobility devices and scooters.
- Backup power for instrumentation.
Packages:
- 1x LP12-12 Acid Battery 12V 12Ah.
