Luckfox Pico Mini B RV1103 Linux Micro Development Board
The Luckfox Pico Mini B RV1103 is a compact and highly integrated Linux micro development board based on the Rockchip RV1103 chip. It combines a single-core ARM Cortex-A7 processor running at 1.2GHz with a RISC-V MCU, a 0.5TOPS NPU, and a third-generation ISP3.2 supporting 4-megapixel input at 30fps. With 64MB DDR2 memory and 128MB SPI NAND FLASH, it provides sufficient resources for development projects. The board features a MIPI CSI 2-lane camera interface for vision applications and 17 GPIO pins supporting functions like PWM, UART, SPI, I2C, and ADC. Its castellated holes with immersion gold design facilitate easy embedding into various products.
Features:
- Single-core ARM Cortex-A7 at 1.2GHz with RISC-V MCU.
- 0.5TOPS NPU, supports int4, int8, int16 quantization.
- ISP3.2 with 4-megapixel input, HDR, WDR, noise reduction.
- 64MB DDR2 memory, 128MB SPI NAND FLASH.

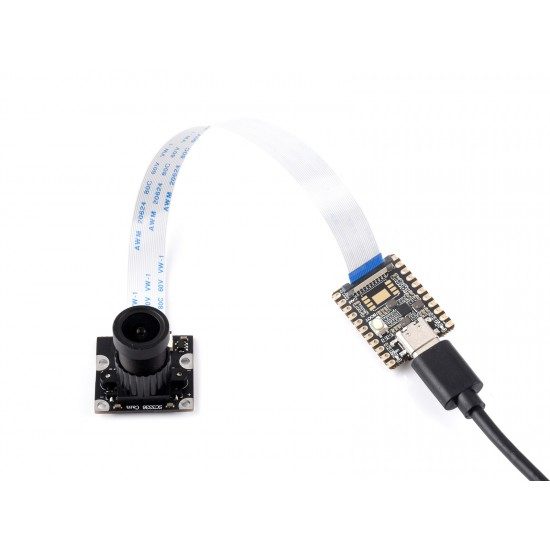

- MIPI CSI 2-lane camera interface.
- 17 GPIO pins (14 PWM, 4 UART, 1 SPI, 1 I2C, 2 ADC).
- USB 2.0 Host/Device via USB Type-C.
- 28 x 21 mm with castellated holes.
- Intelligent encoding, saves over 50% bit rate.
- TF card slot, Ethernet pads, ACT-LED, USER-LED, BOOT button.
Specifications:
|
Specification |
Details |
|---|---|
|
Model |
Luckfox Pico Mini B |
|
Chip |
Rockchip RV1103 |
|
Processor |
Cortex A7@1.2GHz + RISC-V MCU |
|
NPU |
0.5TOPS, supports int4, int8, int16 |
|
ISP |
Input 4M @30fps (Max) |
|
Memory |
64MB DDR2 |
|
Storage |
128MB SPI NAND FLASH |
|
USB |
USB 2.0 Host/Device |
|
Camera Interface |
MIPI CSI 2-lane |
|
GPIO |
17 × GPIO pins (with PWM, UART, SPI, I2C, ADC) |
|
Power Supply |
USB Type-C |
|
Dimension |
28 x 21 mm |
|
Operating System |
Linux |
|
Additional Interfaces |
TF card slot, Ethernet pads (castellated holes) |
Pin Configuration:
What’s On Board:
- USB Type-C connector for power supply and program burning
- ACT-LED system operation status indicator (in the default system)
- USER-LED
- BOOT button Press it when powering on to enter download mode
- SLC NAND FLASH Only available on the B version, and reserved pads for A version
- CSI camera interface MIPI CSI 2-lane
- TF card slotRV1106 Vision processor SoC with built-in ARM Cortex-A7 core
Applications:
- Embedded systems development.
- IoT projects.
- AI and machine learning.
- Camera and vision systems.
- Prototyping and proof-of-concept.
Package Includes:
- 1 x Luckfox Pico Mini B RV1103 Linux Micro Development Board
