LUXONIS OAK-1 PoE A00124 Camera
The LUXONIS OAK-1 PoE is an integrated AI vision system designed for edge computing applications. It combines a high-resolution 12 MP Sony IMX378 color camera with an Intel Movidius Myriad X VPU for on-device AI, depth processing, and computer vision tasks. Powered via Power over Ethernet (PoE), it eliminates the need for separate power cables and streams processed data over Gigabit Ethernet. The device is housed in an IP67-rated enclosure, making it suitable for industrial and outdoor use. It supports real-time object detection, spatial AI, and 3D mapping, ideal for robotics, surveillance, and automation systems.
The Luxonis OAK-1 PoE is an advanced edge-AI camera module designed for industrial, robotics, and automation systems requiring reliable image recognition and neural inference without relying on a host computer. It integrates a high-resolution RGB sensor with the on-board RVC2 neural processing engine, enabling on-device execution of computer vision and AI models. Its Power over Ethernet (PoE) capability means both power and data are delivered via a single RJ45 network connection, making it ideal for distributed vision deployments, surveillance, and remote monitoring.
The camera is housed in a rugged IP67-rated enclosure for protection against dust and water — suitable for outdoor and harsh environments. It supports standard networking protocols and can stream video as well as inference results at high resolutions and frame rates. The built-in eMMC storage allows standalone program execution, and flexible boot options make integration into embedded systems simpler.
Features:
- Integrated Movidius Myriad X VPU for AI and depth processing.
- Single Sony IMX378 12 MP RGB camera with auto/fixed focus.
- Power over Ethernet (802.3af compliant).
- Gigabit Ethernet for data communication.
- IP67-rated rugged enclosure.
- Onboard memory: 16GB eMMC, QSPI NOR Flash, EEPROM.
- Supports RAW video output and real-time vision pipelines.
- Mounting holes for M4 screws and 1/4″-20 tripod mount.
Specifications:
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| VPU | Intel Movidius Myriad X | – | – |
| Camera Sensor | Sony IMX378 (PY004) | – | 12 MP |
| Resolution | 4056 × 3040 | pixels | Up to 60 FPS |
| Frame Rate | 60 | FPS | Full resolution |
| Field of View (FOV) | 78° / 66° / 54° | degrees | Diagonal / Horizontal / Vertical |
| Auto-Focus | Supported | – | Focus range: 8 cm to ∞ |
| Focus Distance | 8 cm – ∞ | – | Auto-focus |
| Shutter Type | Rolling Shutter | – | – |
| Optical Format | 1/2.3″ | inches | Sensor size |
| Aperture (F-number) | f/1.8 ± 5% | – | – |
| Focal Length | 4.81 | mm | – |
| Pixel Size | 1.55 | µm | – |
| Spectrum | Visible light only | – | No IR |
| PoE Standard | IEEE 802.3af (Class 3) | – | – |
| Input Voltage (PoE) | 37 – 57 | V | – |
| Power Consumption | 4 – 7.5 | W | Depends on workload |
| Operating Temperature | 0 – 60 | °C | – |
| Enclosure Rating | IP67 | – | Dust & water resistant |
| Dimensions | 81.9 × 81.9 × 31 | mm | W × H × D |
| Storage | 16 GB eMMC + QSPI NOR + EEPROM | – | Onboard |
Applications:
- Industrial automation and machine vision.
- Robotics navigation and perception.
- Surveillance and IP camera systems.
- Security and access control.
- Remote sensing and edge AI deployments.

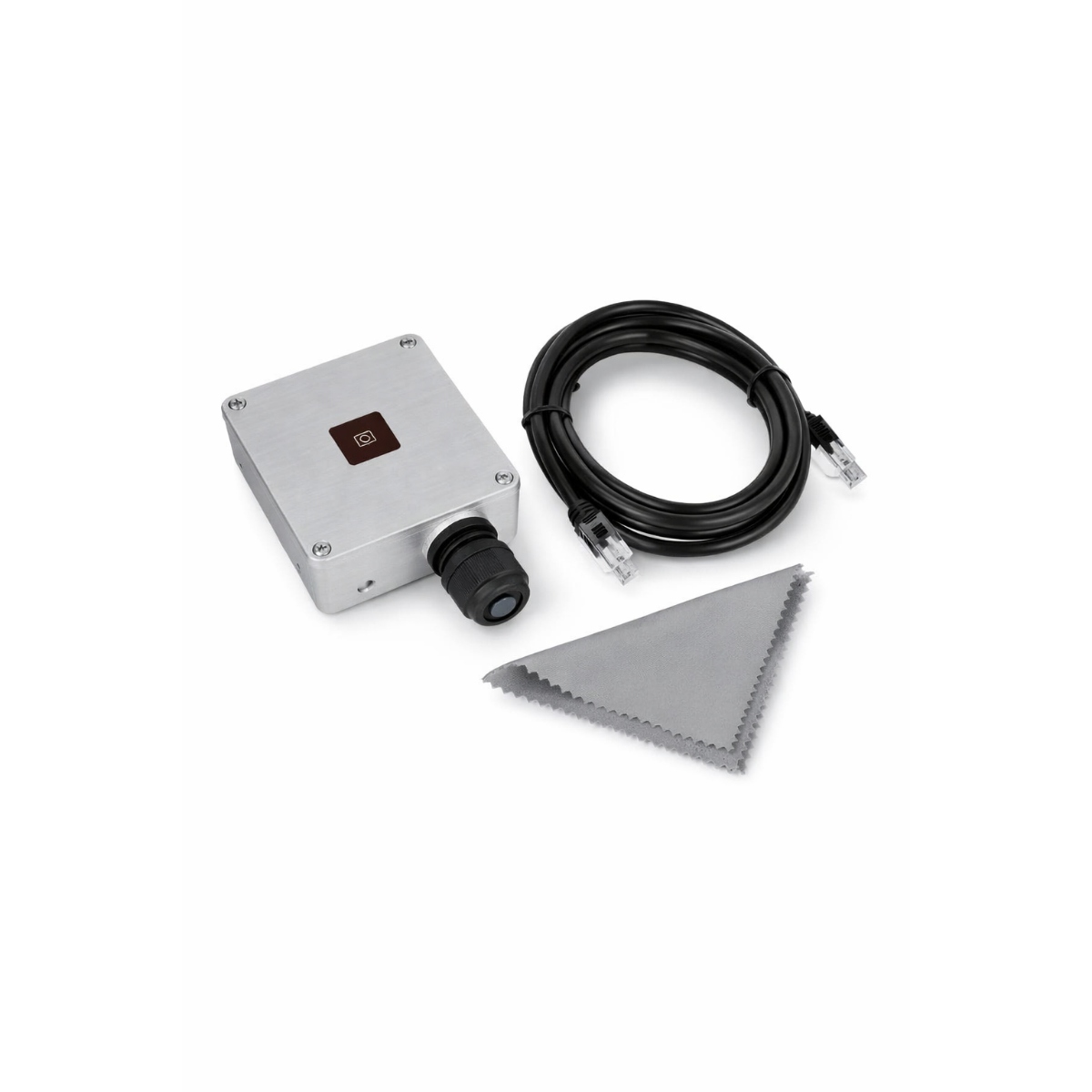

Packages:
- 1x OAK-1 PoE camera.
- 1x Ethernet cable, 2m.
- 1x handkerchief
