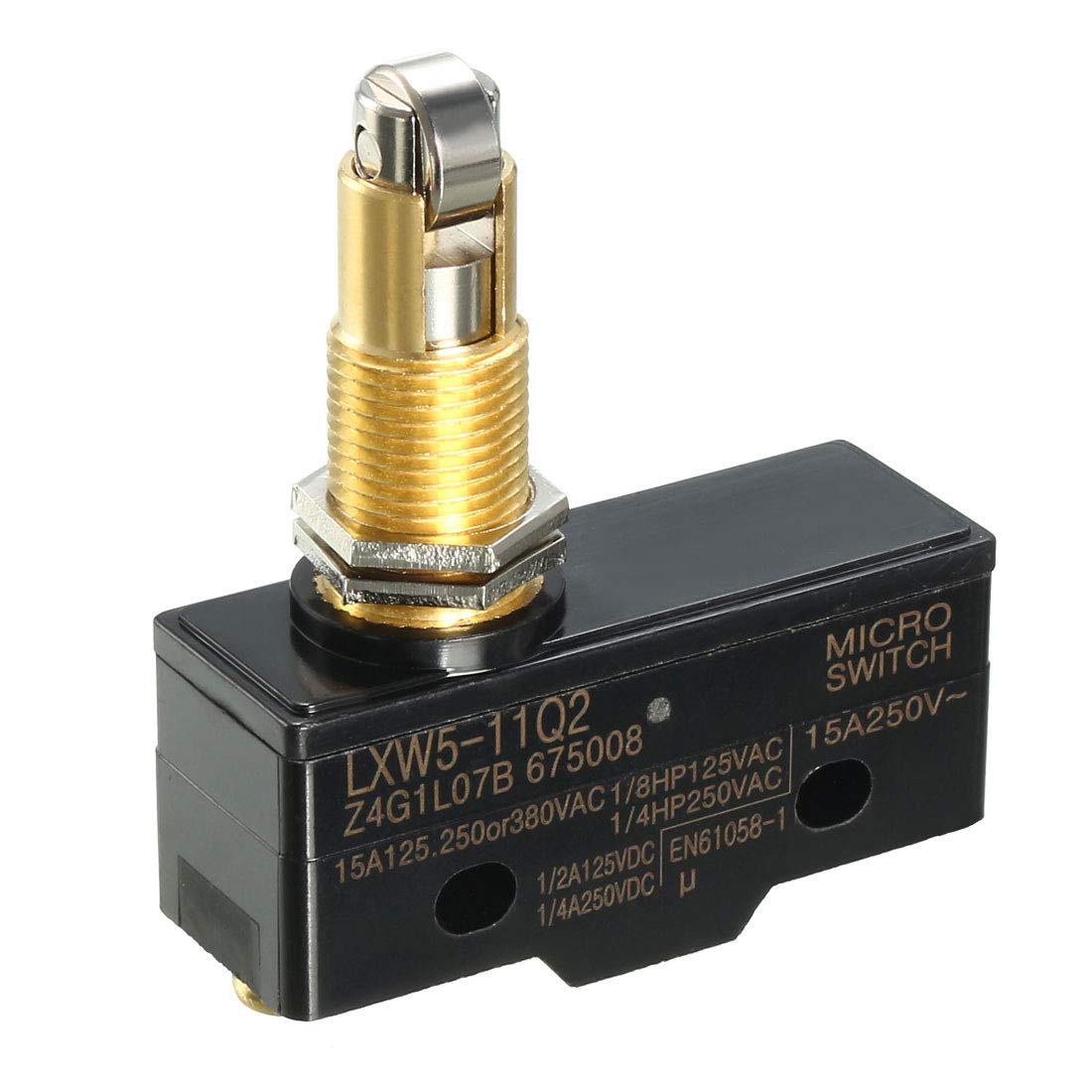

LXW5-11Q2 Limit Switch with Panel Mount 15A 250VAC

Limit Switch with Panel Mount LXW5-11Q2 15A 250VAC

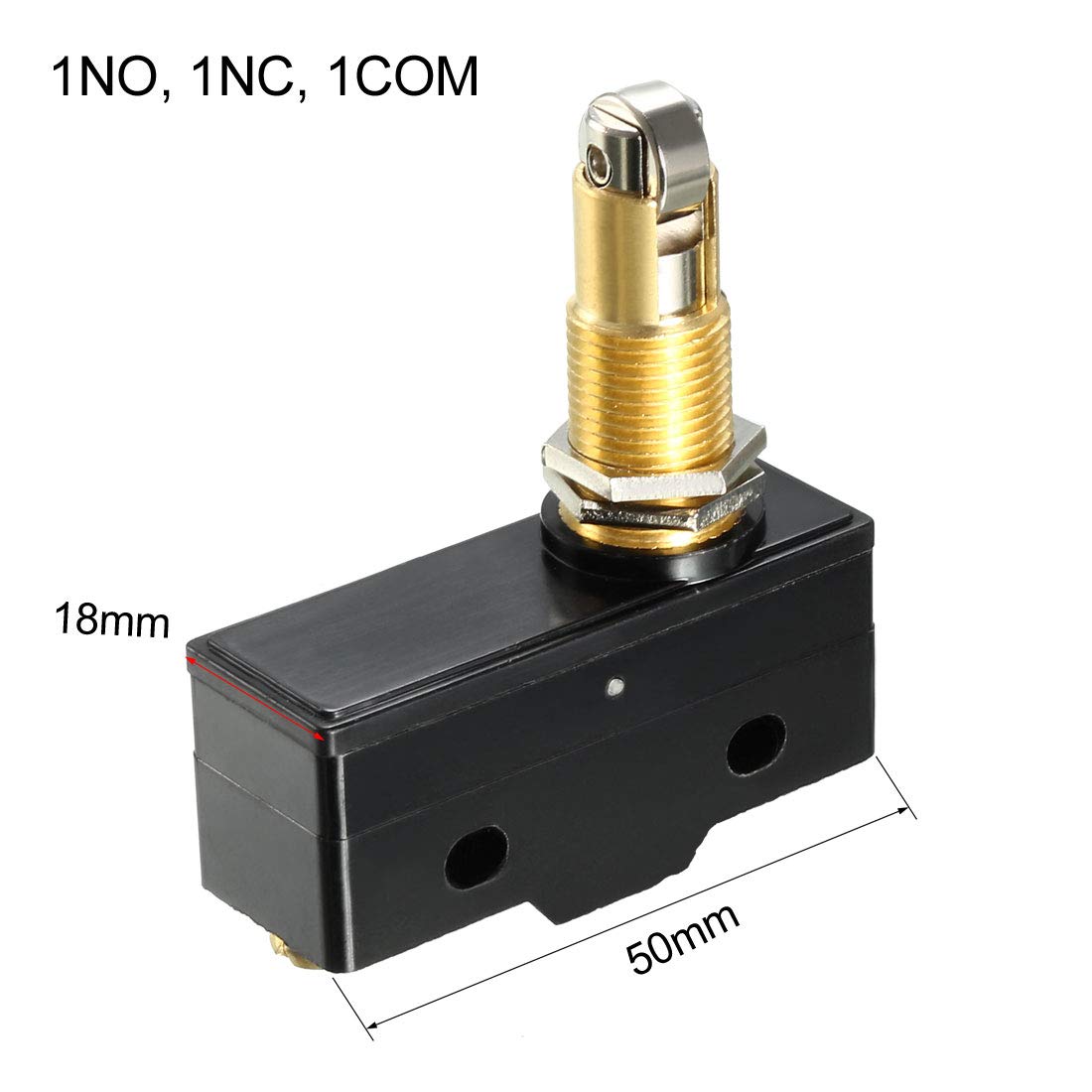

The LXW5-11Q2 is a panel-mounted micro limit switch designed for precise position sensing in mechanical systems. It features a cross-roller plunger actuator, suitable for applications requiring accurate movement detection. The switch operates with a single-pole double-throw (SPDT) contact configuration, offering both normally open (NO) and normally closed (NC) contacts.

Constructed with durable materials, the LXW5-11Q2 ensures reliable performance in various industrial environments. The switch is designed to withstand mechanical stress and environmental factors, providing longevity and consistent operation.

This limit switch is equipped with screw terminals for secure electrical connections. Its panel-mount design allows for easy integration into control panels, making it a versatile choice for industrial automation and machinery applications.

Features:

• Contact Configuration: SPDT (1NO + 1NC)
• Actuator Type: Cross-roller plunger
• Mounting Type: Panel mount

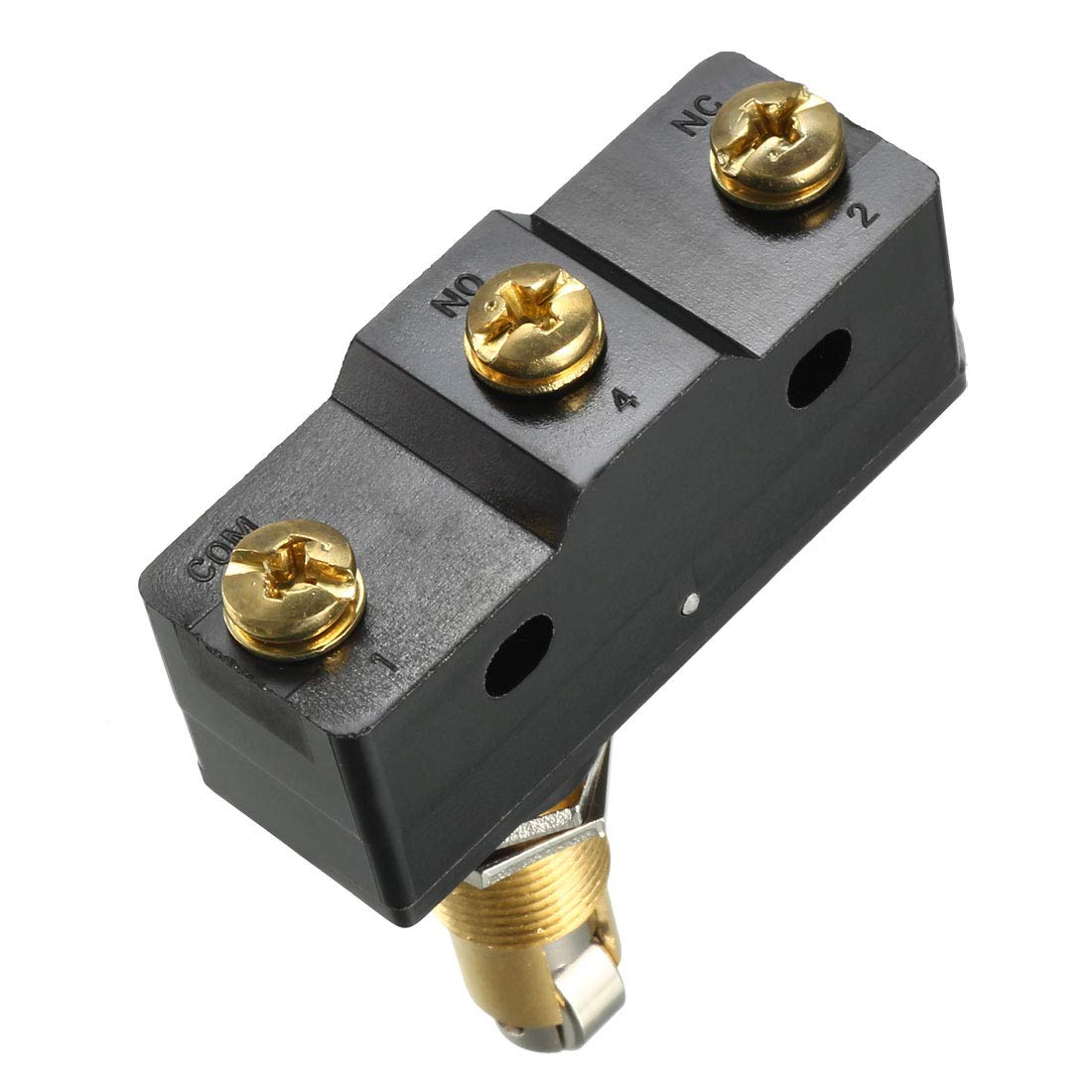

• Termination Style: Screw terminal
• Protection Degree: IP62
• Contact Material: Copper or Silver
• Operating Temperature Range: -25°C to +85°C
• Rated Voltage: Up to 380VAC or 220VDC
• Rated Current: 15A
• Thermal Current: 10A
• Contact Resistance: ≤30mΩ
• Insulation Resistance: ≥100MΩ at 500VDC
• Dielectric Strength: 1000VAC (same polarity), 2000VAC (between current-carrying metal part and ground)

Specifications:

Applications:

• Industrial Automation.
• Control Circuits.
• Mechanical Interlocking.
• Position Detection in Machinery.
• Safety Interlock Systems.

Package Contents:

• 1x Limit Switch with Panel Mount LXW5-11Q2 15A 250VAC
