M51397AP SECAM chroma system IC DIP-30
The M51397AP SECAM Chroma System IC DIP-30 is a specialized semiconductor integrated circuit developed by Mitsubishi Electric for use in SECAM color television receivers. This IC incorporates a comprehensive chroma processor tailored for dual PAL/SECAM systems, enabling seamless integration into multi-standard television sets. It processes chroma signals by demodulating and regenerating color information, ensuring accurate reproduction of SECAM-encoded video.
Features:
- Automatic mode switching for dual systems.
- Common delay line for dual systems.
- Minimum external components.
- Directly drives chroma output transistors.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage Rated | 12VDC |
| Supply Voltage Range | 11-13VDC |
| Supply Voltage Max | 14VDC |
| Power Dissipation Max | 1.4W |
| Supply Current Typical | 75mA |
| Operating Temperature | -20to+65°C |
| Storage Temperature | -40to+125°C |
| Package Type | DIP-30 |

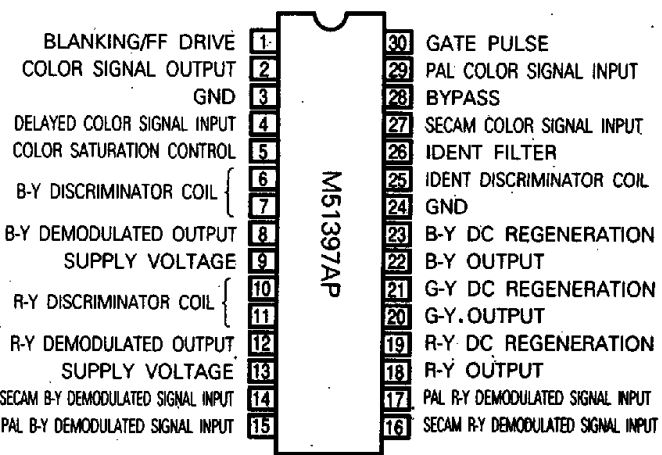

Pin Configuration:
Applications:
Applications:- Chroma signal processing in SECAM color television receivers.
- Dual PAL/SECAM mode support in multi-standard TVs.
- Video processor integration for analog TV systems.
- Restoration and repair of vintage television equipment.
- Educational projects in analog signal processing.
Package Include:
1x M51397AP SECAM Chroma System IC DIP-30.
