Magnetic Reed Switch Door Sensor with Wire MC-36 (Normal Close)
Magnetic Reed Switch Door Sensor with Wire MC-36 Brown (Normal Close) is a recessed magnetic contact sensor with 30cm cable for door/window security.
85.00 EGP
Buy NowMagnetic Reed Switch Door Sensor with Wire MC-36 (Normal Close)

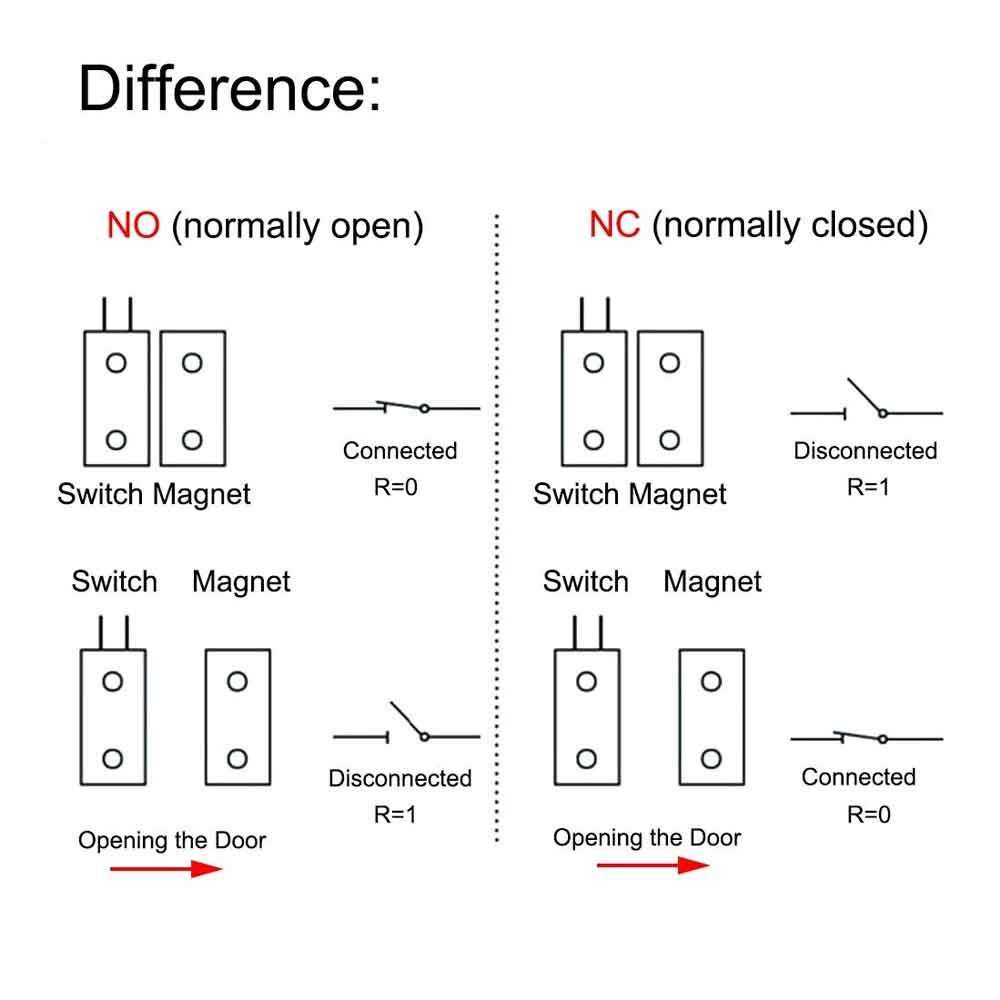

The Magnetic Reed Switch Door Sensor MC-36 in is a reliable and easy-to-install solution for security systems, commonly used in alarm systems for doors and windows. This sensor operates with a magnetic field, ensuring that when the door or window is opened or closed, the reed switch is triggered, sending a signal to activate the security system. It features a “Normal Close” (NC) configuration, which means the circuit remains closed when the magnet is in proximity and opens when the magnet is moved away.
Features:
- Brown color for discreet installation.
- Normal Close (NC) type for reliable operation.
- Easy installation with pre-attached wires.
- Reliable reed switch mechanism for precise triggering.
- Compact and durable design.
- Suitable for door/window security applications.
Specifications:
| Parameter | Value |
|---|---|
| Model | MC-36 |
| Output State | NC (Closed when magnet is near) |
| Actuation Distance | 15–25 mm |
| Max Switching Voltage | 100 V DC |
| Max Switching Current | 0.5 A UP TO 1A |
| Max Power Rating | 10 W |
| Housing Material | ABS Plastic |
| Color | Brown , White |
| Wire Length | 30cm |
Applications:
- Door and window security systems.
- Home and commercial alarm systems.
- Industrial automation systems.
- Safety and intrusion detection.
Package Include:
1x Magnetic Reed Switch Door Sensor with Wire MC-36 (Normal Close)
| Color | Brown, White |
|---|
