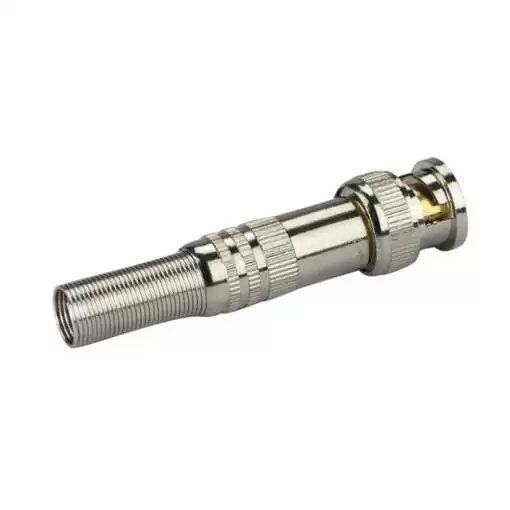

Solder Less Twist Spring Male Jack BNC Connector For Coaxial Cable / CCTV Camera
The BNC Solderless Twist Spring Male Jack Connector is a convenient and easy-to-install connector designed for use with coaxial cables, particularly for CCTV cameras, RF applications, and video transmission. This type of connector eliminates the need for soldering, making it an ideal solution for quick and hassle-free connections. It features a twist-on and spring mechanism that ensures a secure and reliable connection with minimal signal loss.
Features:
- No need for soldering, making installation simple and time-saving.
- Ensures a firm and stable connection without requiring additional tools.
- Provides extra grip and minimizes disconnection due to vibrations.
- Works with RG59, RG6, and other standard coaxial cables.
- Made from high-quality nickel-plated brass or zinc alloy, ensuring resistance to corrosion and wear.
- Low Signal Loss maintains signal integrity, making it ideal for video and RF applications.
Specifications:
- Connector Type: BNC Male
- Installation: Solderless, twist-on with spring mechanism
- Material: Nickel-plated brass alloy housing
- Alloy casing, shielded with half Copper plating (copper core pin welding)
- Needle core: Copper Plated
- Shielding ring: Zinc Alloy
- Wiring card: alloy
- Installation category: welding free
- Cable Compatibility: RG59, RG6, and other coaxial cables
- Contact resistance: inner conductor ≤2.0mΩ; external resistance ≤0.2mΩ
- Outer layer: alloy nickel plating
- Characteristic impedance: 75Ω
- Frequency range: 0~2GHz
- Insulation resistance: ≥4000MΩ
- Medium withstand voltage: 1200V
- Voltage standing wave ratio: ≤1. 3
- Connector durability: 500 product materials and coating
- Application: CCTV, RF transmission, video surveillance, networking, broadcast, and testing equipment
Setup Guide:
Applications:
- CCTV Camera Systems.
- Broadcast and Video Equipment.
- RF Communication Systems .
- Test and Measurement Equipment.
- Networking and Telecommunications.
Package Contents:
1 X Solder Less Twist Spring Male Jack BNC Connector.
