Manual LED Dimmer Control DC12-24V / 30A PWM
LED Dimmer is A high-power PWM used to smoothly control brightness of 12V–24V LED strips and lighting systems.
325.00 EGP
Buy NowManual LED Dimmer Control DC12-24V / 30A PWM

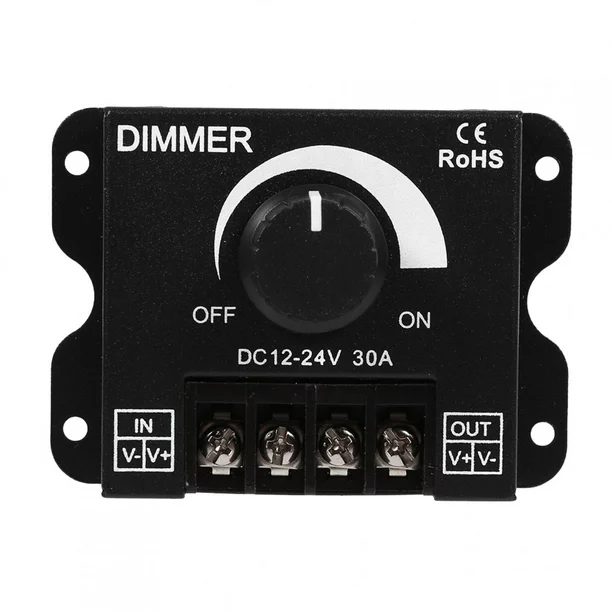

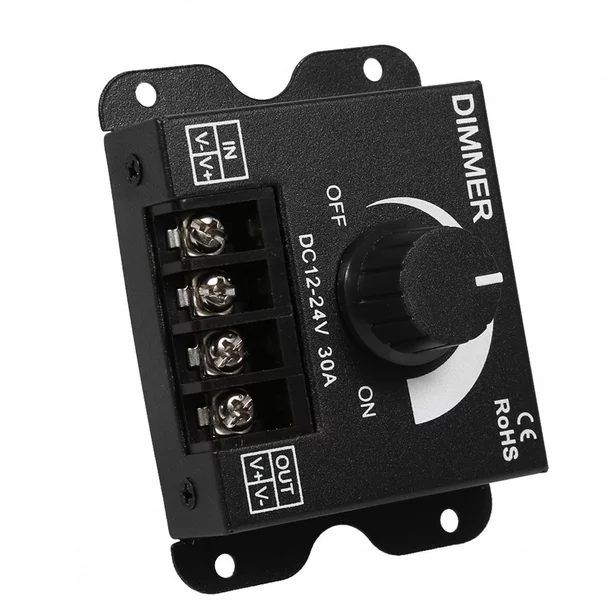

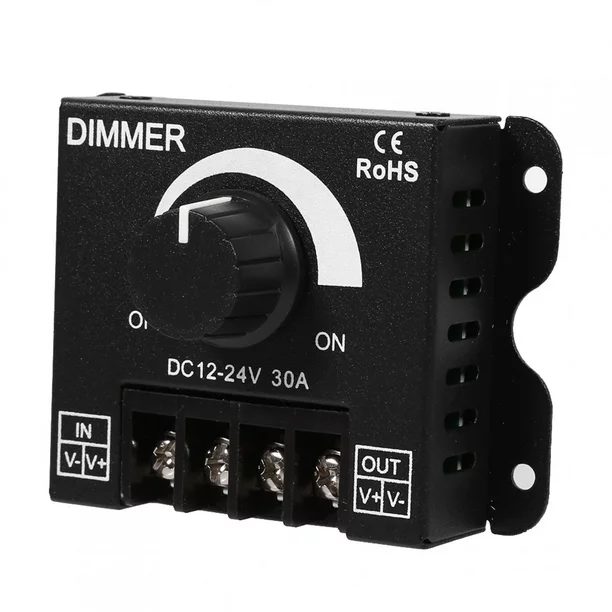

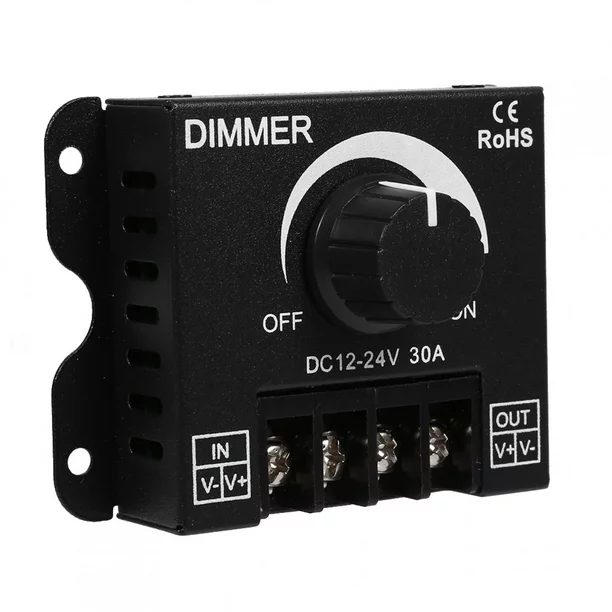

This manual LED dimmer controller is designed to regulate the brightness of LED lighting systems using Pulse Width Modulation (PWM) technology, ensuring smooth dimming without flickering or color distortion. It supports both 12V and 24V DC systems, making it highly versatile for various lighting setups such as LED strips, modules, and other constant-voltage LED devices. The rotary knob allows precise manual adjustment from fully off to maximum brightness, giving users full control over lighting intensity.
Built with a durable metal housing and capable of handling high current loads up to 30A, this dimmer is ideal for high-power lighting applications. Its efficient design minimizes energy loss and heat generation while maintaining stable performance. The compact size allows easy integration into DIY projects, commercial lighting installations, and automotive lighting systems where reliable and adjustable brightness control is required.
Features:
- 0-100% brightness can be adjustable, making the light soft, and stable without flickering.
- When PWM digital is dimming, it can avoid rush current, protecting your LED light from being damaged.
- Constant voltage and constant current output can be connected with amplifiers to extend its load.
- Simple to use. With a knob controller, it’s operated by manual. It also has an auto memory function, which makes it much more convenient to use at home.
- Easy to install.
Specifications:
| Parameter | Value |
|---|---|
| Color | Shown as a picture |
| Material | Metal |
| Brightness Adjustable Range | 0% – 100% |
| Input Voltage | DC 12V – 24V |
| Input Current | 0 – 30A (Less than 30A) |
| Power | 12V: 360W / 24V: 720W |
| Static Power Consumption | 1W |
| Working Temperature | -20°C to 60°C |

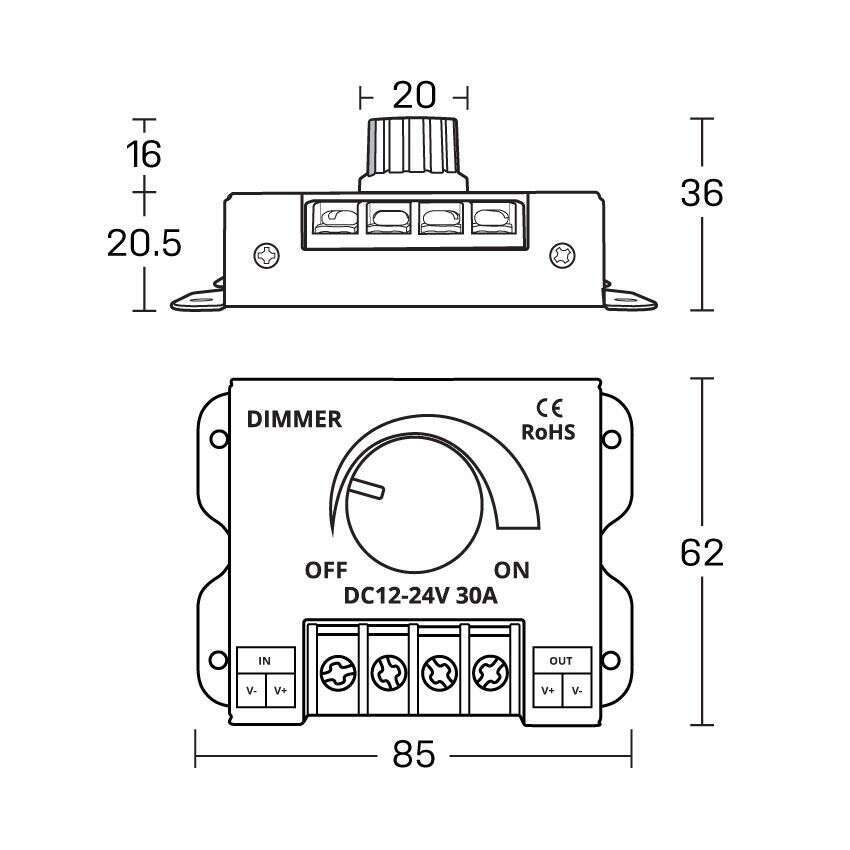

| Dimensions (L × W × H) | 85 × 62 × 36 mm |
| Package Weight | 130 g |

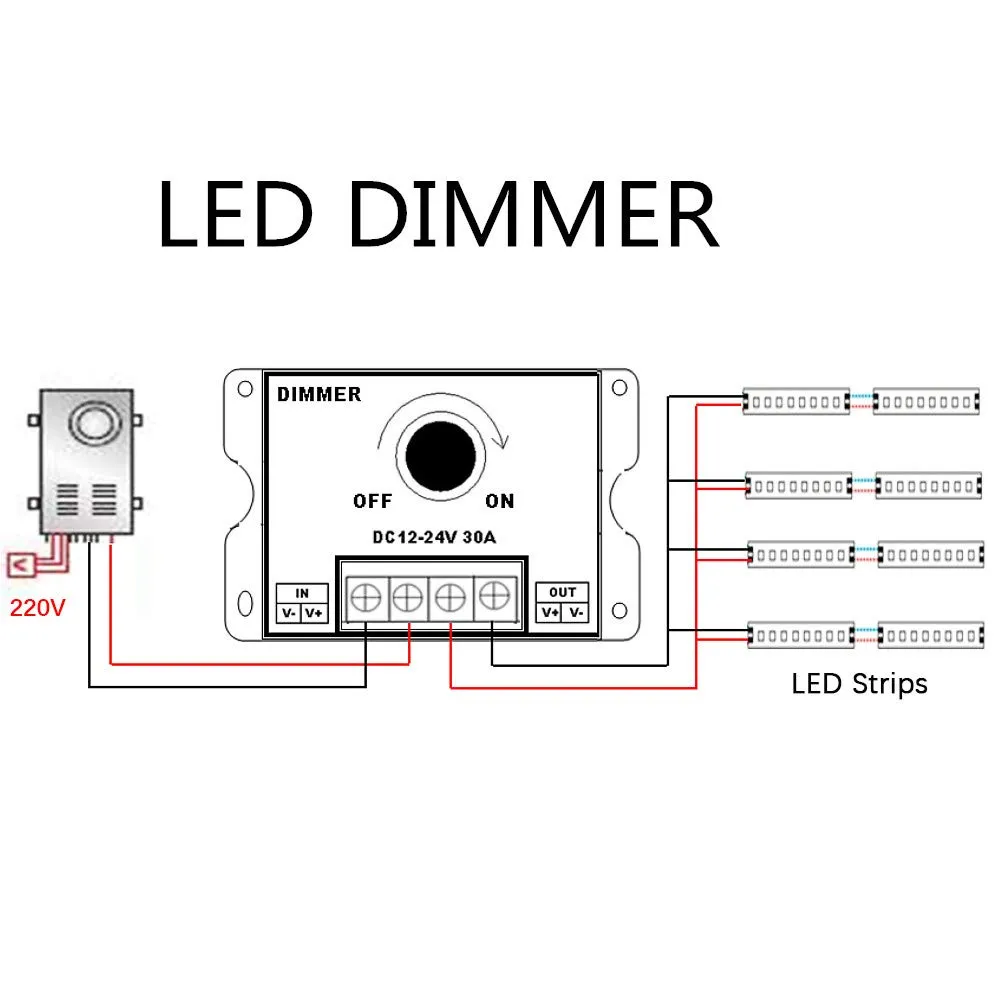

Pinout:
| Terminal | Description |
|---|---|
| V+ (Input) | Positive DC input |
| V- (Input) | Negative DC input |
| V+ (Output) | Positive to LED/load |
| V- (Output) | Negative to LED/load |
Applications:

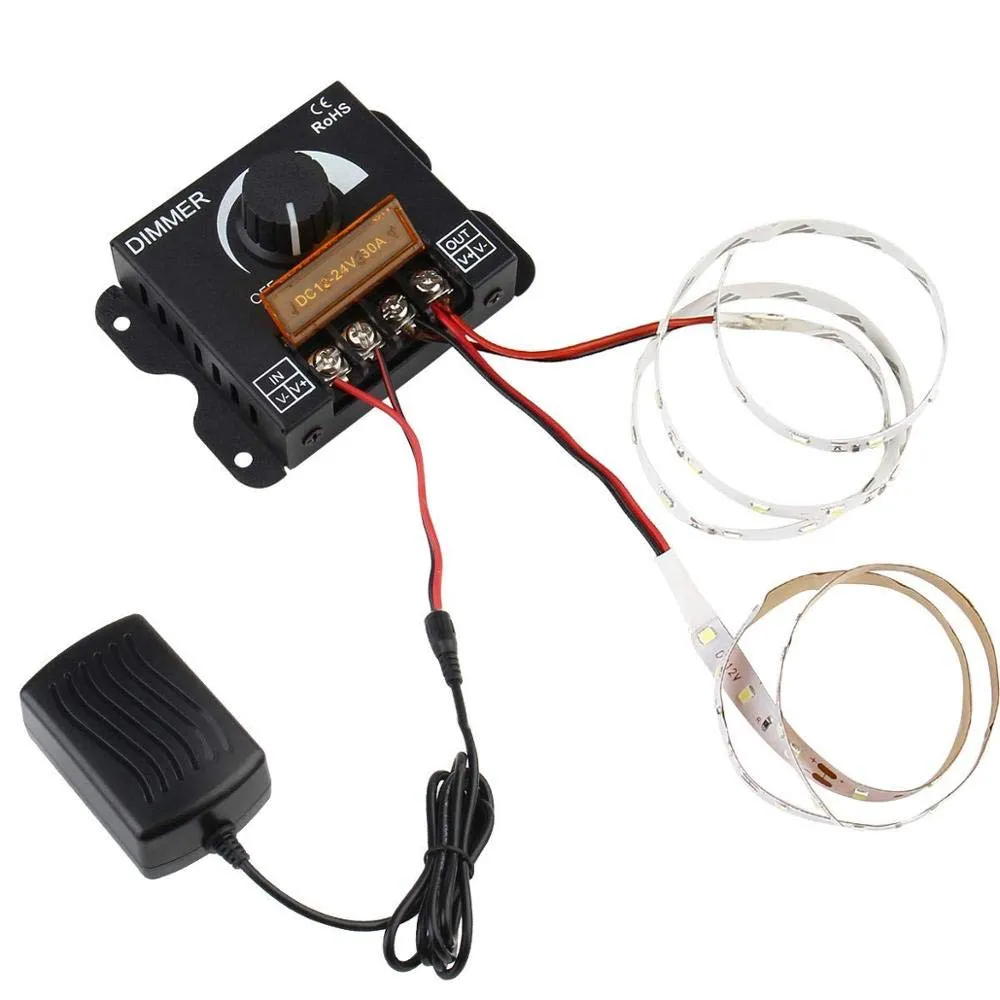

- LED strip light dimming.
- Home and commercial lighting control.
- Automotive LED lighting systems.
- DIY lighting projects.
- Advertising light boxes.
- Cabinet and decorative lighting.
Package Included:
- 1 x Led Dimmer Switch .
- 1 x Use Manual.
