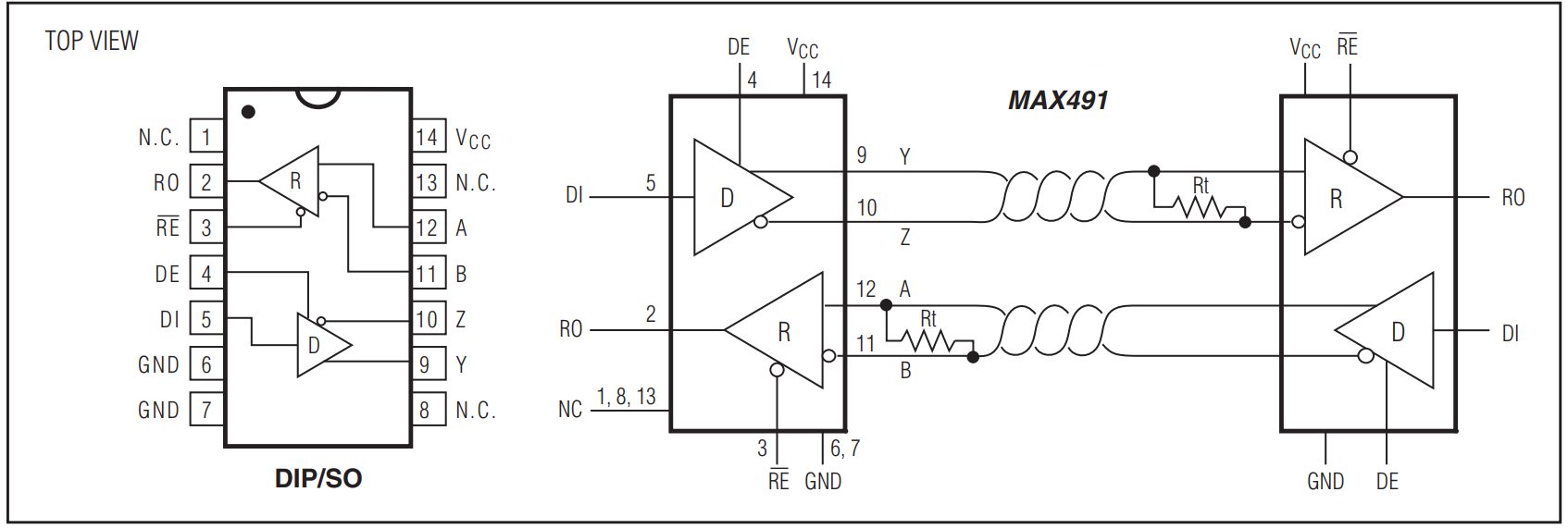

Pinout:
Specifications:
| Product Attribute | Attribute Value |
| Manufacturer: | Analog Devices Inc. |
| Brand: | Analog Devices / Maxim Integrated |
| Product Category: | RS-422/RS-485 Interface IC |
| Series: | MAX491 |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOIC-14 |
| Function: | Transceiver |
| Number of Drivers: | 1 Driver |
| Number of Receivers: | 1 Receiver |
| Receiver Hysteresis | 70 mV |
| Data Rate: | 2.5 Mb/s |
| Supply Voltage – Max: | 5 V |
| Supply Voltage – Min: | 5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Duplex: | Full Duplex |
| Height: | 1.5 mm (Max) |
| Length: | 8.75 mm (Max) |
| Operating Supply Current: | 500 uA |
| Operating Supply Voltage: | 5 V |
| Product Type: | RS-422/RS-485 Interface IC |
| Width: | 4 mm (Max) |
| Unit Weight: | 338 mg |
