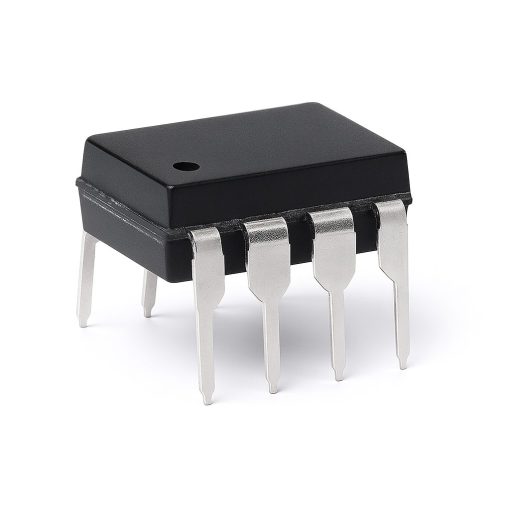

The MC1330 is a silicon monolithic integrated circuit designed primarily for use in color and monochrome television receivers. It serves as a comprehensive replacement for the third IF, detector, video buffer, and AFC buffer sections of a receiver.
✅Features
- Broad Application
- High Linearity
- High Gain
- Signal Quality
- High Output
- Stability
- AFT Support
Maximum Ratings
| Rating |
Value |
Unit |
| Power Supply Voltage |
24 |
Vdc |
| DC Video Output Current |
5.0 |
mAdc |
| DC AFT Output Current |
2.0 |
mAdc |
| Junction Temperature |
150 |
°C |
| Operating Ambient Temperature Range |
0 to +75 |
°C |
| Storage Temperature Range |
-65 to +150 |
°C |
Electrical Characteristics
| Characteristic |
Pin |
Min |
Typ |
Max |
Unit |
| Zero Signal DC Output Voltage |
4 |
7.0 |
— |
8.7 |
Vdc |
| Supply Current |
5, 6 |
11 |
17.5 |
24 |
mA |
| Maximum Signal DC Output Voltage |
4 |
— |
0 |
0.5 |
Vdc |
| Conversion Gain (1.0 Vp-p Output, 30% Mod) |
7 |
25 |
36 |
65 |
mVrms |
| AFT Buffer Output at Carrier Frequency |
1 |
300 |
475 |
650 |
mVp-p |
💻Applications
- Television Receivers
- Video Demodulation
- TV-IF Amplifiers
📖DataSheet
