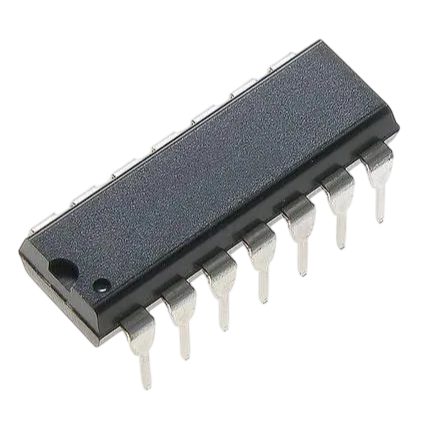

MC14000U-BCP Motorola Dual 3-In NOR Gate Plus Inverter IC PDIP-14
Compact, low-power MC14000U CMOS logic IC providing two independent 3-input NOR gates plus one inverter in a PDIP-14 package; CD4000 replacement.
10.00 EGP
Buy NowMC14000U-BCP Motorola Dual 3-In NOR Gate Plus Inverted IC PDIP-14
The MC14000U-BCP Motorola Dual 3-In NOR Gate Plus Inverted IC PDIP-14 is a CMOS logic device that integrates two independent 3-input NOR gates and a single inverter in a PDIP-14 package, designed for low power dissipation, high input impedance and wide supply operation from 3.0V to 18V for use in battery and mains-powered digital systems and direct replacement for CD4000UB.
Features
- Two independent 3-input NOR gates plus one inverter in a single PDIP-14 package.
- Wide operating supply range: 3.0V to 18V.
- Diode protection on all inputs for improved noise and ESD robustness.
- Very low quiescent supply current characteristic of CMOS logic.
- Pin-for-pin replacement for CD4000/MC14000 family devices.

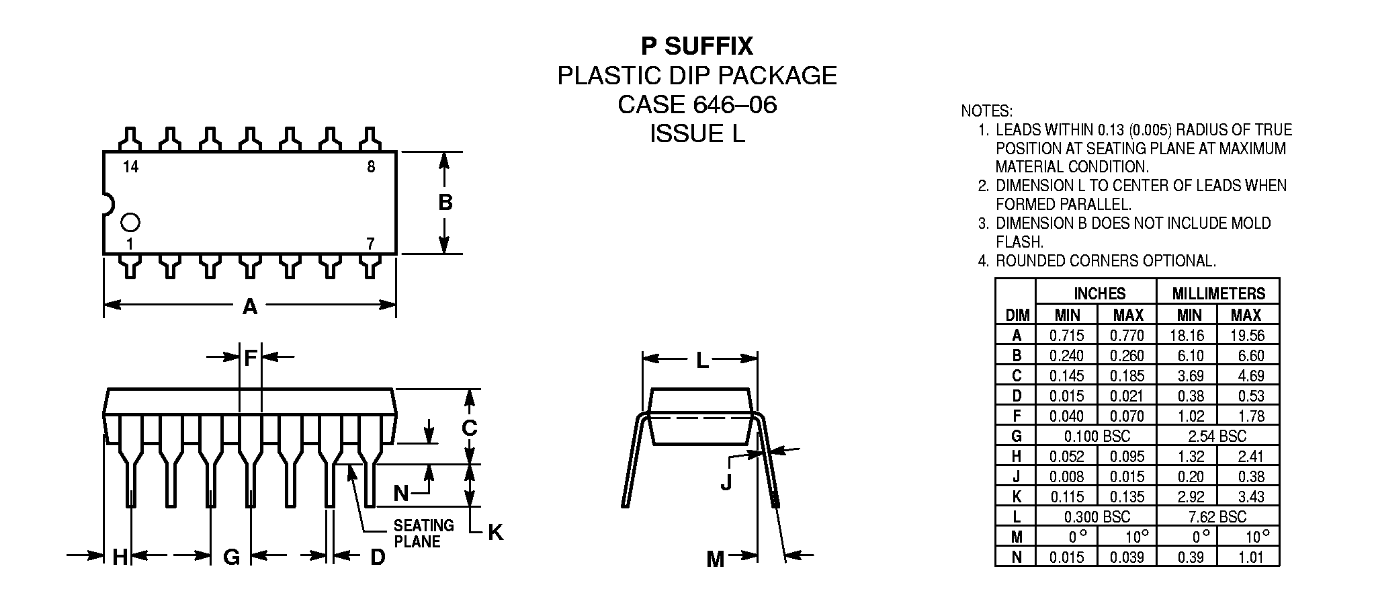

- Standard PDIP-14 footprint for easy prototyping and through-hole mounting.
PINOUT
| Pins | Labels | Function |
|---|---|---|
| 1-2 | NC | No Connection |
| 3…5 | 1A…3A | Inputs for the first NOR gate |
| 6 | OUTA | Output of the first NOR gate |
| 7 | VSS | Ground (Negative power supply) |
| 8 | 1C | Input for the inverter |
| 9 | OUTC | Output of the inverter |
| 10 | OUTB | Output of the second NOR gate |
| 11…13 | 1B…3B | Inputs for the second NOR gate |
| 14 | VDD | Positive power supply |
Specifications
MAXIMUM RATINGS (Voltages Referenced to VSS)
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VDD | DC Supply Voltage | -0.5 to +18.0 | V |
| Vin; Vout | Input or Output Voltage (DC or Transient) | -0.5 to VDD + 0.5 | V |
| Iin; Iout | Input or Output Current (DC or Transient): per Pin | ±10 | mA |
| PD | Power Dissipation | 500 | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature (8-Second Soldering) | 260 | °C |
Note: for full electrical specifications, curves, or testing circuits, please read the datasheet document down below.
Applications
- Low-power digital logic and gating in battery-powered systems.
- Glue logic, address decoding and simple combinational logic blocks.
- Sensor interfaces, alarm and control circuits.
- Prototyping and educational circuits requiring multi-input NOR functionality.
Package Contents
- 1x MC14000UBCP Motorola Dual 3-In NOR Gate Plus Inverted IC PDIP-14.
Documents
| Datasheet | MC14000UBCP |
