Features:
- 8 MHz bus operation at 5V operation for 125 nsec minimum instruction cycle time.
- Efficient instruction set including multiply and divide.
- Fully static low-voltage, low-power design with wait and stop modes.
- Easy to learn and use architecture.
- C optimized architecture provides compact code.
- Improves reliability by resetting the MCU when voltage drops below trip point.
- Two trip points allow optimum operation in both 5V and 3V nominal systems.
- Integration reduces system cost.
Pin Assignments :
Specifications:
| Product Attribute | Attribute Value |
| Datasheet | MC68HC908JK1CP |
| Product Category | 8-bit Microcontrollers – MCU |
| Series | HC08 |
| Model | MC68HC908JK1CP |
| Core Processor | HC08 |
| Program Memory Type | Flash |
| Number of ADC Channels | 12 Channel |
| Number of Timers/Counters | 2 Timer |
| Data Bus Width | 8 bit |
| Program Memory Size | 1.5 kB |
| Data RAM Size | 128 B |
| Maximum Clock Frequency | 8 MHz |
| ADC Resolution | 8 bit |
| Number of I/Os | 15 I/O |
| Supply Voltage – Min | 2.7 V |
| Supply Voltage – Max | 5.5 V |
| Operating Temperature | – 40 °C to + 85 °C |

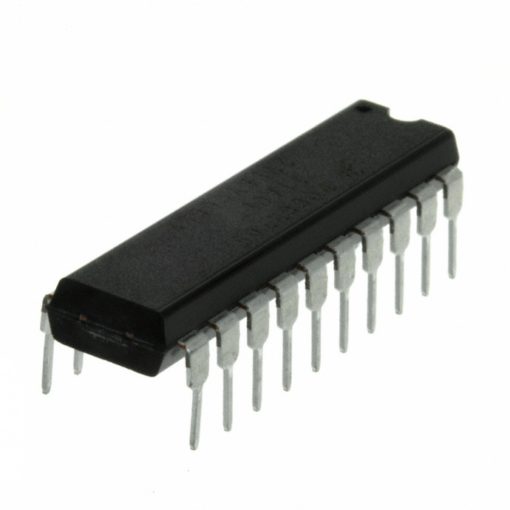

| Package/Case | DIP-20 |
| Mounting Style | Through Hole |
Applications:
- Appliances.
- Security systems.
- Microwave applications.
- Satellite receivers.
- Automotive body electronics.
- Sensors and flow measurement devices.
- Industrial compressor (HVAC).
- Instrument control panels.
- HVAC blowers and fans.
