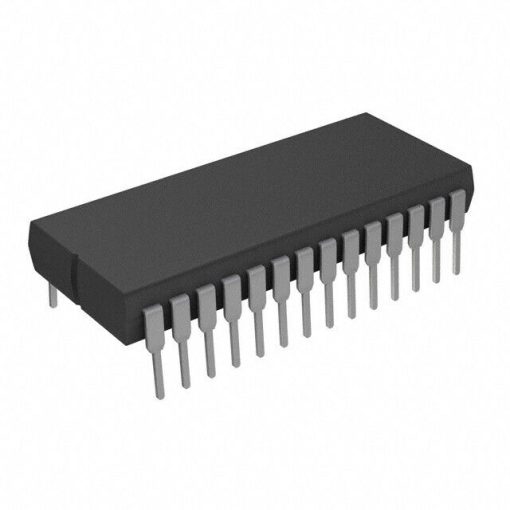

MC68HC908JL3CP HCMOS Microcontroller IC DIP-28

MC68HC908JL3CP HCMOS Microcontroller IC DIP-28

The MC68HC908JL3CP is a member of the Motorola HC08 microcontroller family, designed to provide an integrated solution for various control applications. This microcontroller features an 8-bit CPU architecture and is available in a 28-pin Dual In-line Package (DIP). It is optimized for embedded applications, offering robust processing capabilities within a compact form factor.

It features a wide range of peripherals, including multiple general-purpose I/O ports, integrated timers, and an analog-to-digital converter. These peripherals make the MC68HC908JL3CP suitable for tasks that require real-time control and processing, such as sensor interfacing and signal processing.

This device incorporates various power-saving features, including low-power modes, making it ideal for battery-operated systems. The MC68HC908JL3CP is highly flexible and can be configured to meet the needs of diverse applications, from automotive to industrial control systems.

Features:

• Object code fully upward-compatible with the M68HC05 Family.
• 16-bit stack pointer with stack manipulation instructions.
• 16-bit index register and stack pointer.
• 8-MHz CPU internal bus frequency.
• 64-Kbyte program/data memory space.
• 16 addressing modes.
• Fast 8-bit by 8-bit multiply and 16-bit by 8-bit divide instructions.
• Efficient C language support.
• Low-power stop and wait modes.
• Enhanced binary-coded decimal (BCD) data handling.

Specifications:

Pinout Diagram:

Pin Configuration:

Applications:

• Automotive Control Systems.
• Industrial Control Systems.
• Consumer Electronics.
• Home Automation.

Package Contents:

• 1x MC68HC908JL3CP HCMOS Microcontroller IC DIP-28

Datasheet
