Pinout:
Specifications:
| Manufacturer: | Microchip |
| Brand: | Microchip Technology |
| Product Category: | Switching Voltage Regulators |
| Type: | Step-Down Regulator |
| Mounting Style: | SMD/SMT |

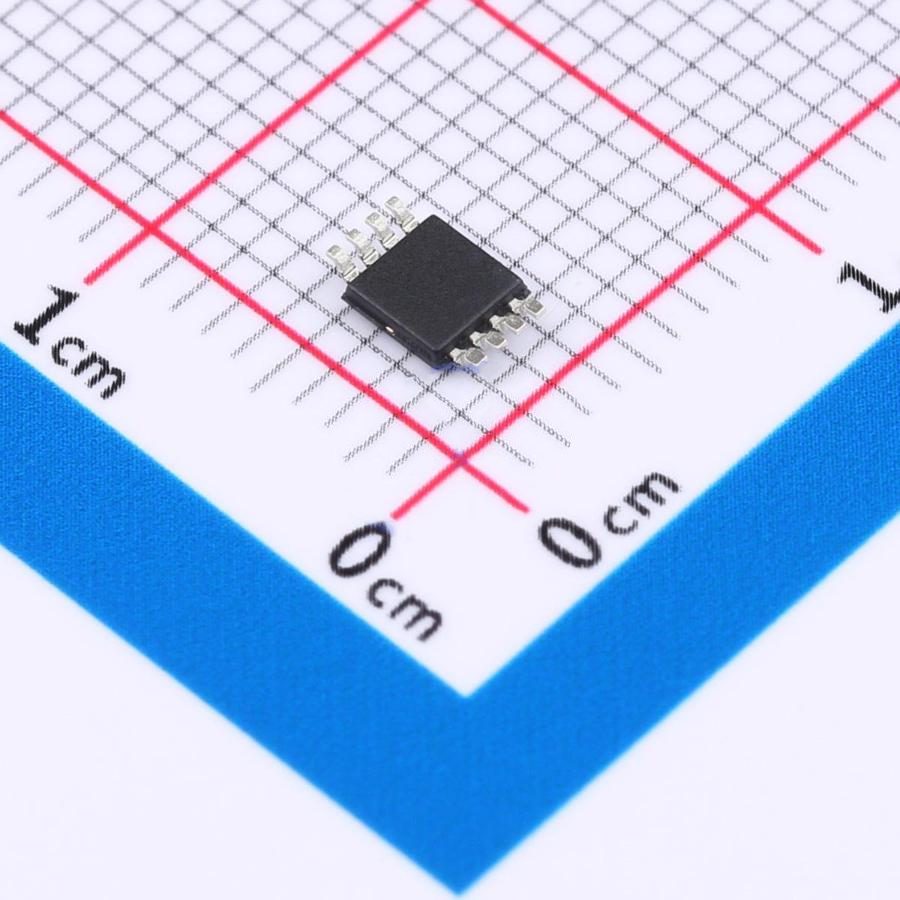

| Package/Case: | MSOP-8 |
| Topology: | Integrated Buck and Synchronous Switches |
| Input Voltage: | 2.7 V to 5.5 V |
| Output Voltage: | 800 mV to 5 V |
| Output Current: | 1 A |
| Number of Outputs: | 1 Output |
| Input Voltage – Min: | 2.7 V |
| Input Voltage – Max: | 5.5 V |
| Quiescent Current: | 120 uA |
| Switching Frequency: | 1.4 MHz |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Load Regulation: | 0.25 % |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Subcategory: | PMIC – Power Management ICs |
| Unit Weight: | 140 mg |
Applications:
- Network Interface Cards
- Portable Computers0
- Set-Top Boxes
- DSL Modems and Routers
- USB-Powered Devices
- GBIC Modules
- High-Speed Data System Bus Termination
- Medical Instruments
- Cellular/GSM/PHS Phones
- +5V or +3.3V Distributed Voltages
