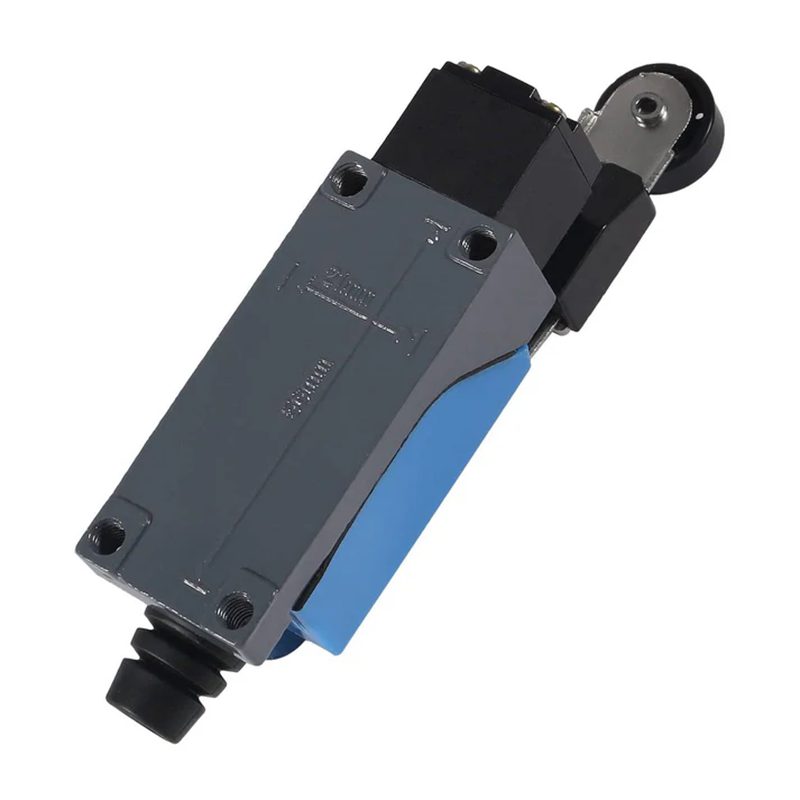

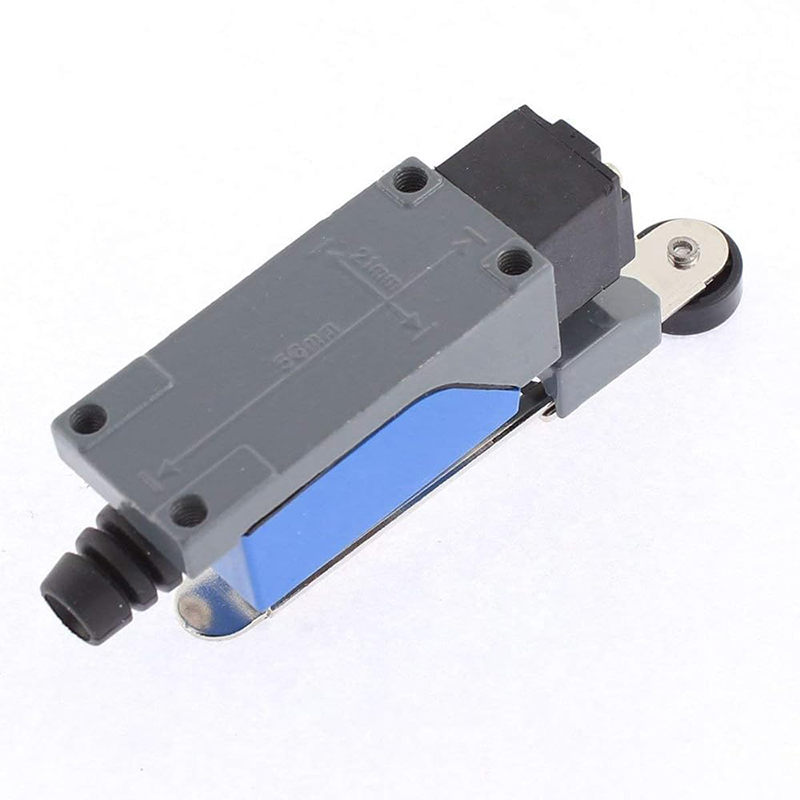

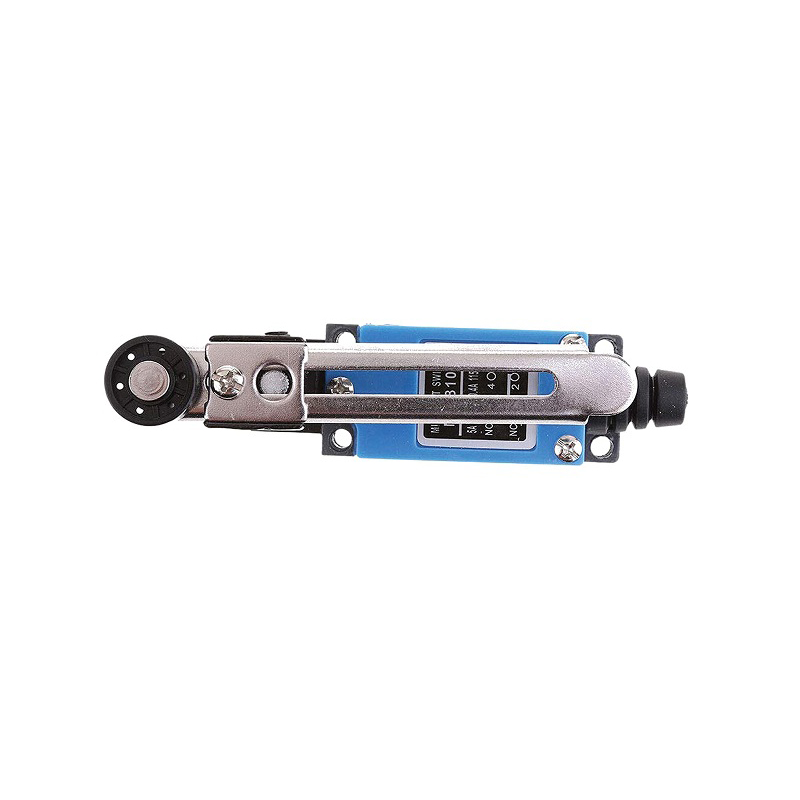

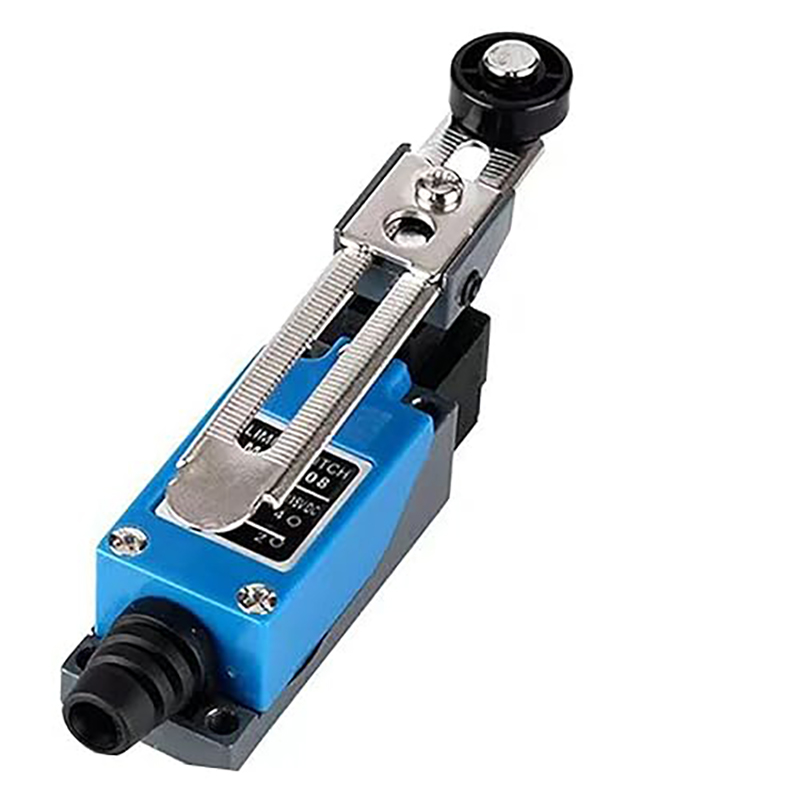

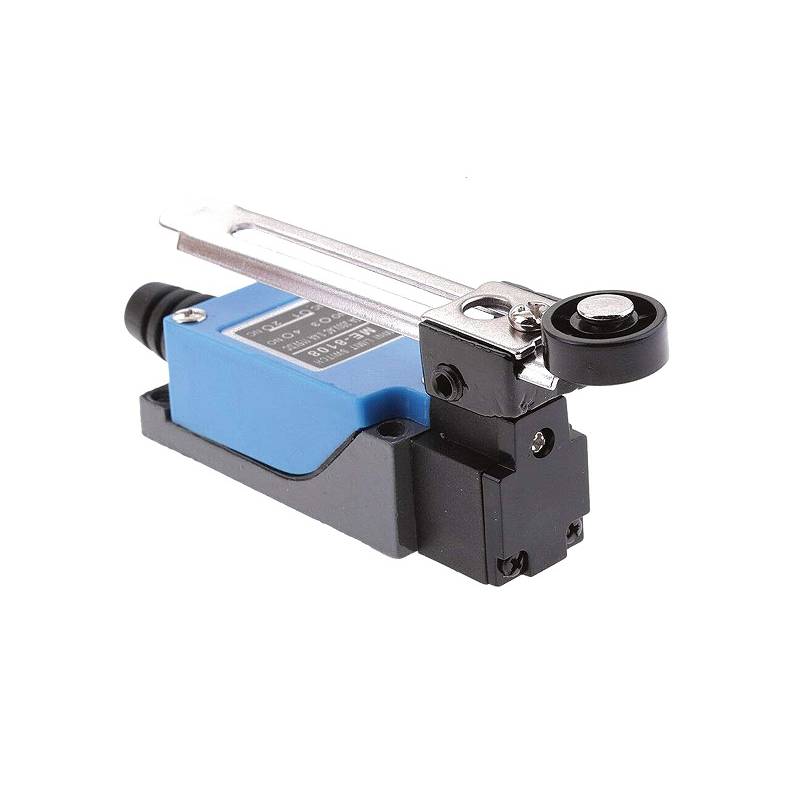

ME-8108 Limit Switch Adjustable/Rotatable Roller Arm Type
The ME-8108 Limit Switch with an adjustable and rotatable roller arm is a compact electromechanical position sensing device designed for industrial automation and machinery control. Featuring a robust housing made of reinforced plastic and aluminum casting, it withstands harsh working environments while maintaining reliable electrical contact performance. Its adjustable roller lever actuator allows for versatile actuation angles, helping it accurately detect object presence or movement even in constrained spaces.
Internally, the ME-8108 incorporates a double-circuit configuration with a built-in micro-switch and double spring mechanism that enhances mechanical lifespan and responsiveness. The design simplifies wiring through a fully openable terminal section, making installation and maintenance efficient. It offers protection against dust and water ingress, which is crucial for demanding industrial and outdoor applications.
As a position sensor, this limit switch provides dependable feedback to control circuits in automated systems, conveyor lines, and machinery ends of travel. Its adjustable roller arm can be fine-tuned for precise actuation points, making it suitable for repetitive movement detection. With long mechanical and electrical life, the ME-8108 supports continuous operation with minimal downtime, making it a practical choice for manufacturers and engineers seeking durable and adaptable limit switch solutions.
Features:
- Adjustable and rotatable roller arm actuator for versatile actuation.
- Double-circuit limit switch design.
- Highly rigid construction with reinforced plastic and aluminum castings.
- Built-in micro-switch with double spring mechanism for extended life.
- Easy-wiring design with fully openable terminal section.
Specifications:
| Specification | Details |
|---|---|
| Model: | ME-8108 |
| Actuator Type: | Adjustable / rotatable roller arm |
| Contact Configuration: | Double circuit (1NO + 1NC) |
| Operation Speed: | 0.5 mm/s – 50 cm/s |
| Operating Frequency: | Mechanical: 120 ops/minute Electrical: 30 ops/minute |
| Contact Resistance: | 25 mΩ max |
| Insulation Resistance: | ≥100 MΩ at 500 VDC |
| Dielectric Strength: | 1000 VAC – 1500 VAC (standard insulation) |
| Shock Resistance: | Mechanical: 1000 m/s² Malfunction: 300 m/s² |
| Ambient Temperature: | −5 °C to +65 °C |
| Humidity: | < 95 % RH |
| Weight: | 90 g |
Applications:
- Automated production line position sensing.
- Conveyor movement detection.
- Machine travel end-of-stroke control.
- Packaging machinery position feedback.
- Material handling limit feedback.
Package Contents:
- 1x ME-8108 Limit Switch Adjustable/Rotatable Roller Arm Type
