Features
- SIP6 package with industry standard pinout
- Input voltage range: 4.5V to 5.5V
- Line regulation: 1.2% for 1% input variation
- Load regulation: 10%
- Operating temperature range: -40°C to +90°C
- Complies with EN55032 radiated Class A without additional components
- High efficiency up to: 78%
- Protections: Short circuit
- 1.5KVDC I/O isolation
- Low cost
Specifications
| Product Attribute | Attribute Value |
| Manufacturer: | MEAN WELL |
| Product Category: | Isolated DC/DC Converters – Through Hole |
| Mounting Style: | Through Hole |
| Number of Outputs: | 2 Output |
| Output Power: | 1 W |
| Output Voltage-Channel 1: | 12 V |
| Output Current-Channel 1: | 42 mA |
| Output Voltage-Channel 2: | – 12 V |
| Output Current-Channel 2: | 42 mA |
| Isolation Voltage: | 1.5 kV |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 90 C |
| Package/Case: | SIP-6 |

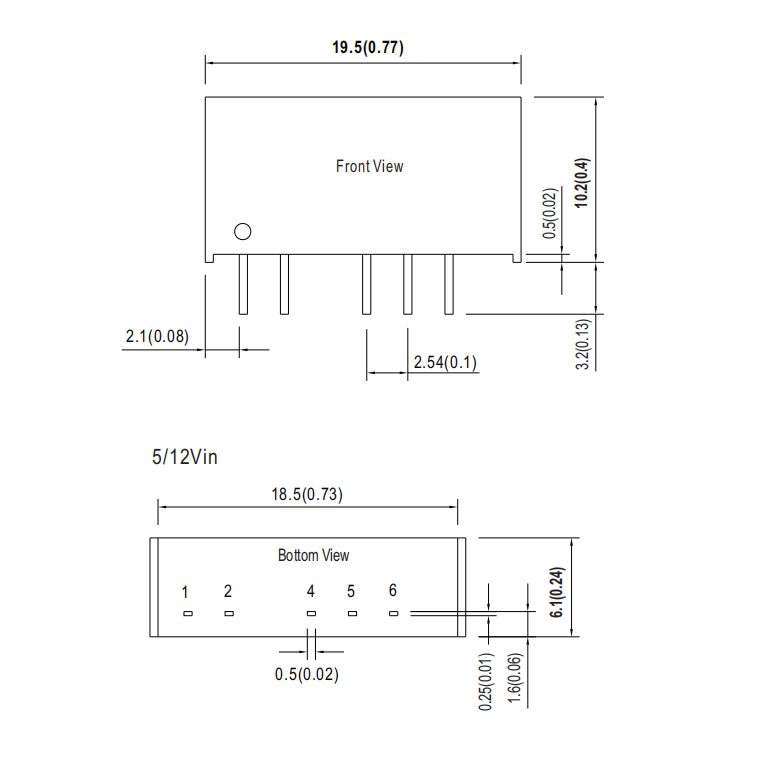

| Length: | 19.5 mm |
| Width: | 6.1 mm |
| Height: | 10.2 mm |
| Industry: | Industrial |
| Product: | Isolated |
| Series: | DPU01 |
| Cooling Method: | Convection |
| Dimensions: | 19.5 mm x 6.1 mm x 10.2 mm |
| Efficiency: | 78 % |
| Input Voltage: | 4.5 V to 5.5 V |
Applications
- Telecom and Datacom systems
- Wireless networks
- Industrial control facilities
- Instrument
- Analyzer
- Detector
- Data switch
