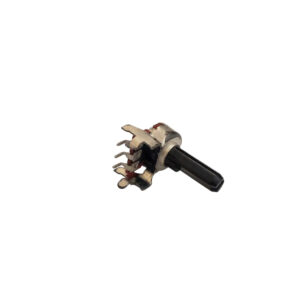

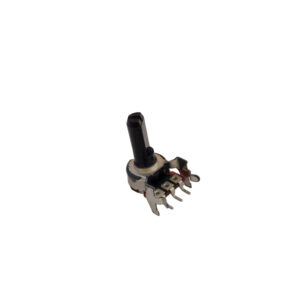

Metal Potentiometer 10KΩ 3Pin Plastic Shaft 15mm

Features:

• The 10KΩ Potentiometer is a three-terminal variable resistor that is used to vary or change the resistance.
• It is used to change different parameters in an electronic circuit, such as voltage, current, and so on.
• The 10KΩ Potentiometer is a passive electronic component that has two end terminals with a resistive element and the sliding contact called the wiper acts as the third terminal. Two other terminals present are used to facilitate stabilized mounting on PCB.
• It is mostly used in applications where a single turn can provide enough control resolution.
• An adjustable potentiometer can open up many interesting user interfaces.
• Turn the pot and the resistance changes.

Specifications:

• Type: Linear Potentiometer
• Material : Plastic + Metal
• Mounting Type : Through Hole
• Number of Terminals : 5 Pins
  •  3 Pins for Connections
  •  2 Pins for Mounting on PCB
• Rotation Angle : 300 º
• Resistance:  10KΩ (Adjustable)
• Tolerance: ±20%
• Rated Voltage(Max.): 250 V
• Rated Power: 0.05 W
• Total Length: 25 mm
• Total Width: 15 mm
• Shaft Length: 15 mm
• Distance between Connections Pins: 3 mm
• Distance between Installation Pins: 13 mm

Applications:

• Audio Control.
• Tuning.
• Dimming.
• Speed Regulation.
• Temperature Regulation.
• Mechanical equipment.
• Medical equipment.
• Sewing machines.
