- An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes.
- Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot
Specifications:
- 20K ohm Single Linear Taper Rotary Potentiometers
- 20K Ohm, 1/5W Power, 3 Terminals
- Top adjustment type and knurled shaft for easy operation in the daily use time.
- Mainly used to control electrical devices such as volume controls on audio equipment.
- Knurled shaft with split design for push-on knob.
- Material: Metal Electronic Parts

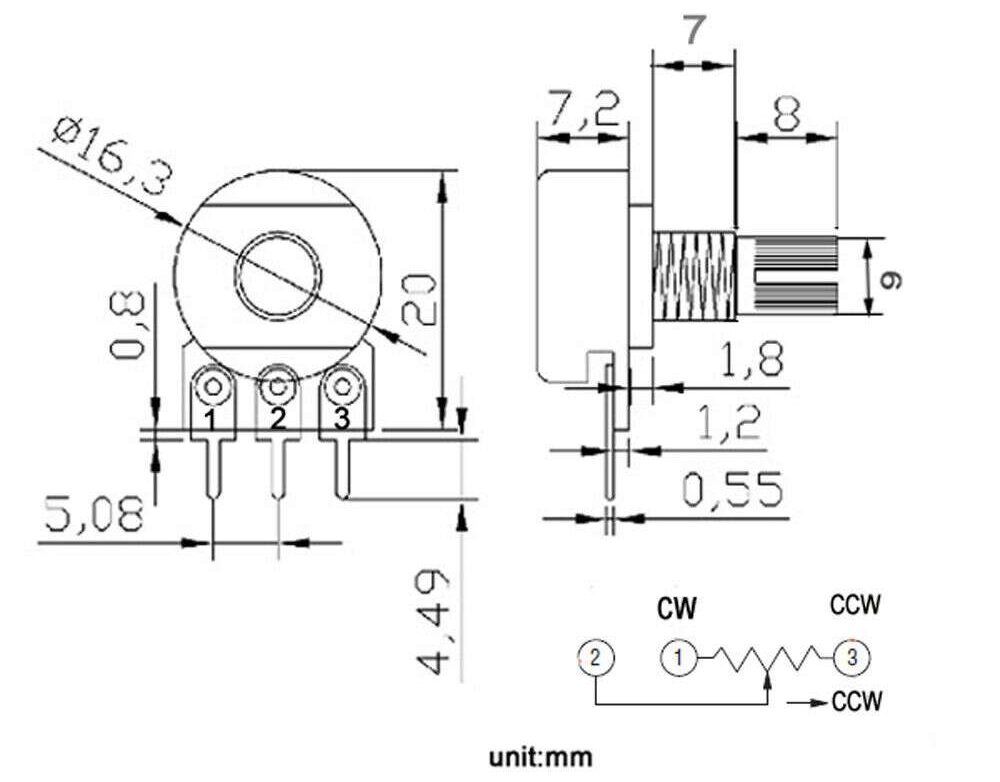

Dimensions:
Package Included:
1x Pot 20k
