MH7464 1x 4 input AND-OR-INVERT Dip-14

MH7464 1x 4 input AND-OR-INVERT Dip-14

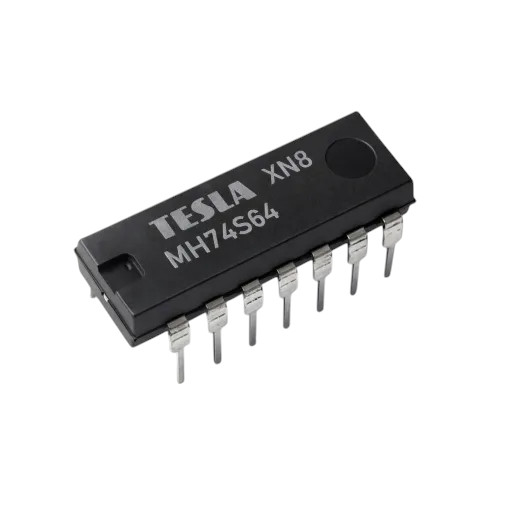

The MH74S64 is a high-speed Schottky TTL (Transistor-Transistor Logic) integrated circuit. It is categorized as a digital integrated circuit and is a featured component of the 1983 Tesla Component Catalog. This chip is a complex logic gate that performs an AND-OR-INVERT function using a 4-2-3-2 input configuration. This allows multiple logic operations to be combined into a single output with the high-speed performance characteristic of the “S” (Schottky) series of TTL logic. The physical unit is housed in a classic 14-pin Dual In-line Package (DIP).

✅Features

• Schottky Technology
• Efficient Logic
• Standard DIP-14 Package

📜📚Specifications

💻Applications

• Vintage Computer Restoration
• Complex Logic Implementation
• High-Speed Signal Processing
• Educational Kits

🎁Package Content

• 1 x MH7464 1x 4 input AND-OR-INVERT Dip-14

📖DataSheet

• MH74S64
