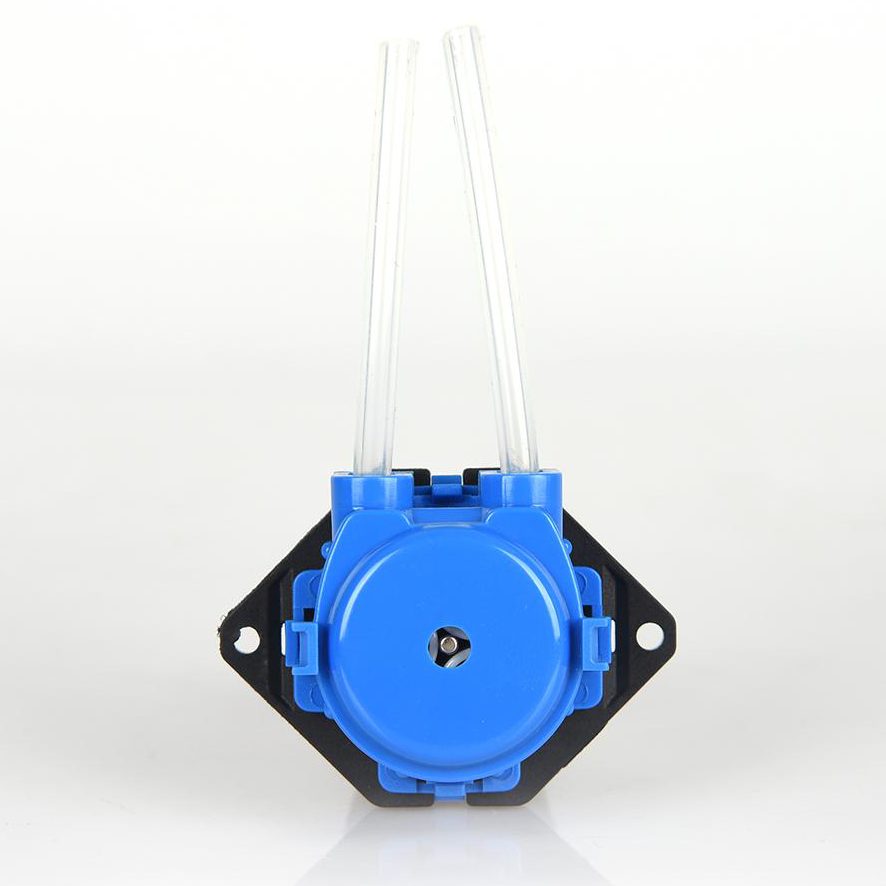

NKP-DC-S06 12V DC Brushed Motor Peristaltic Pump
When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 12V DC supply and can produce a flow rate of up to 37ml per minute. If speed control is required we suggest using a simple PWM signal
Features
- Convenient and quick replacement of pump tube
- The forward and reverse rotation of the pump can be changed by control
- Low noise and low cost
- Simple structure, maintenance-free
- With three rotors, moderate pulsation
Applications:
- Sweeping robot
- Fuel stoves
- Soap dispenser
- Fully automatic liquid-based cell dyeing machine
Technical Parameters
| Motor type | DC brushed motor |
| Flow range | ≥37ml/min |
| Power | 5W |
| Control method | Switch control |
| Weight | about 100g |
| Rated voltage | 12V |
| Pump tube life | 200h |
| Motor life | 800h |
| Tube material | Silicone tube |
| Tube size | 2mm×4mm(flow≥36ml/min) |
| Reference noise value | <50dB |
| Number of rotors | 3 |
Dimensions (Unit: mm)
