Product Description: Servo MG-90S – micro – Continuous Rotation – 360° – Aluminium+Plastic gear
This servo rotates fully forward or backward instead of moving to a position. You can use any servo code, hardware, or library to control these servos. Good for making simple moving robots. Comes with three different horns, as shown.
Micro servo with a weight of 13,4 g. It is characterized by stable work and easy installation. It has a Half Metal gearbox. The operating voltage is from 4.8 V to 6 V. With 6 V supply, the torque of the servo is 2.2 kg.cm. At the same time, the servo can run smoothly with minimal power and can be powered by ordinary battery or USB. Moreover, users can directly control the servo using servo libraries in Arduino IDE. The power cord length is 25 cm and the product dimensions are 22.5 x 12.2 x 28.5 mm.
This servo features:
- Gear Material: Aluminium+Plastics
- Ball Bearing for smooth operation
- Over torque protection for durability
Servo specifications
- Model: MG-90S
- Housing material: plastic
- Servo type: micro
- Supply voltage: from 4.8 V to 6.0 V
- Parameters for 4.8 V:
- Torque: 1.8 kg.cm (0.2 Nm)
- Speed: 0.1 s/60°.
- Parameters for 6.0 V:
- Torque: 2.2 kg.cm (0.23 Nm)
- Speed: 0.08 s/60°
- Range of motion: 0° to 360°
- Cable length: 25 cm

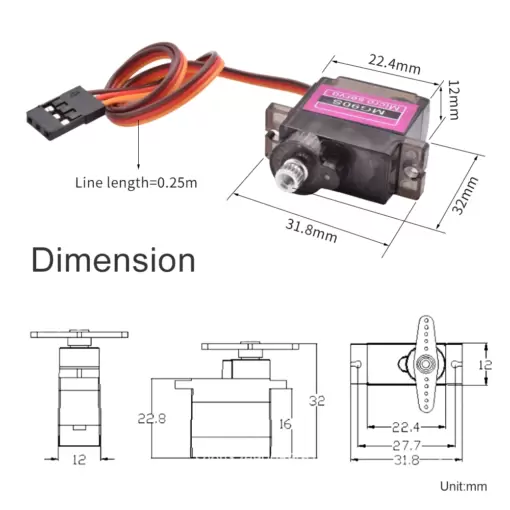

- Dimensions: 22.5 x 12.2 x 28.5 mm
- Weight: 13.4 g
- Dead Band Width : 2 usec
