MiniQ Wheel Set (Wheel 18mm +Bracket) for N20 Gear Motor

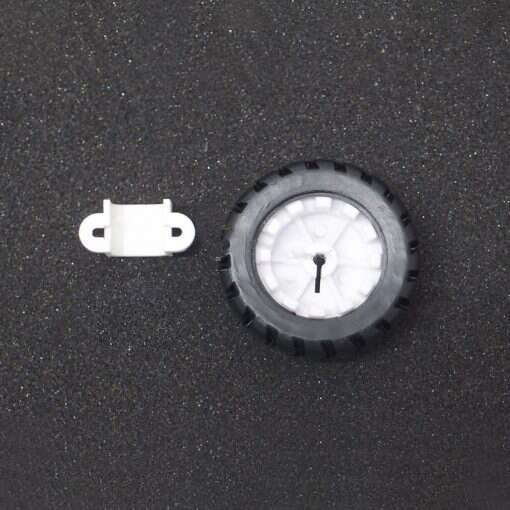

MiniQ Wheel and Bracket Set

This MiniQ Wheel and Bracket Set comes with a 43mm wheel and a mounting bracket with screw, ideal for making robots. The tire is soft black rubber with deep tread for added traction in rugged terrain. The compact bracket enables convenient mounting for our N20 micro metal gear motors. The plastic bracket encloses the otherwise exposed gears, and the mounting tabs capture the nuts for easy installation.

Specifications:

Tire Material: Rubber
Wheel Material: Plastic
Outside Diameter: Ø 43 mm
Tire Width: 18 mm
Aperture: D Shaft Ø3mm Bore.
Mounting Bracket: Height: 11mm x Width: 25mm (include M2 screw/nut)
Material: ABS plastic

Package Includes:

1 x (43mmx18mm) Wheel 3mm Shaft

1 x Motor Bracket
