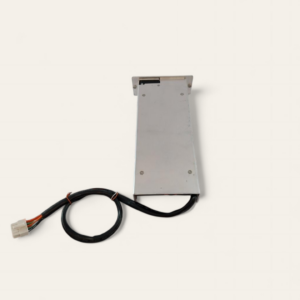

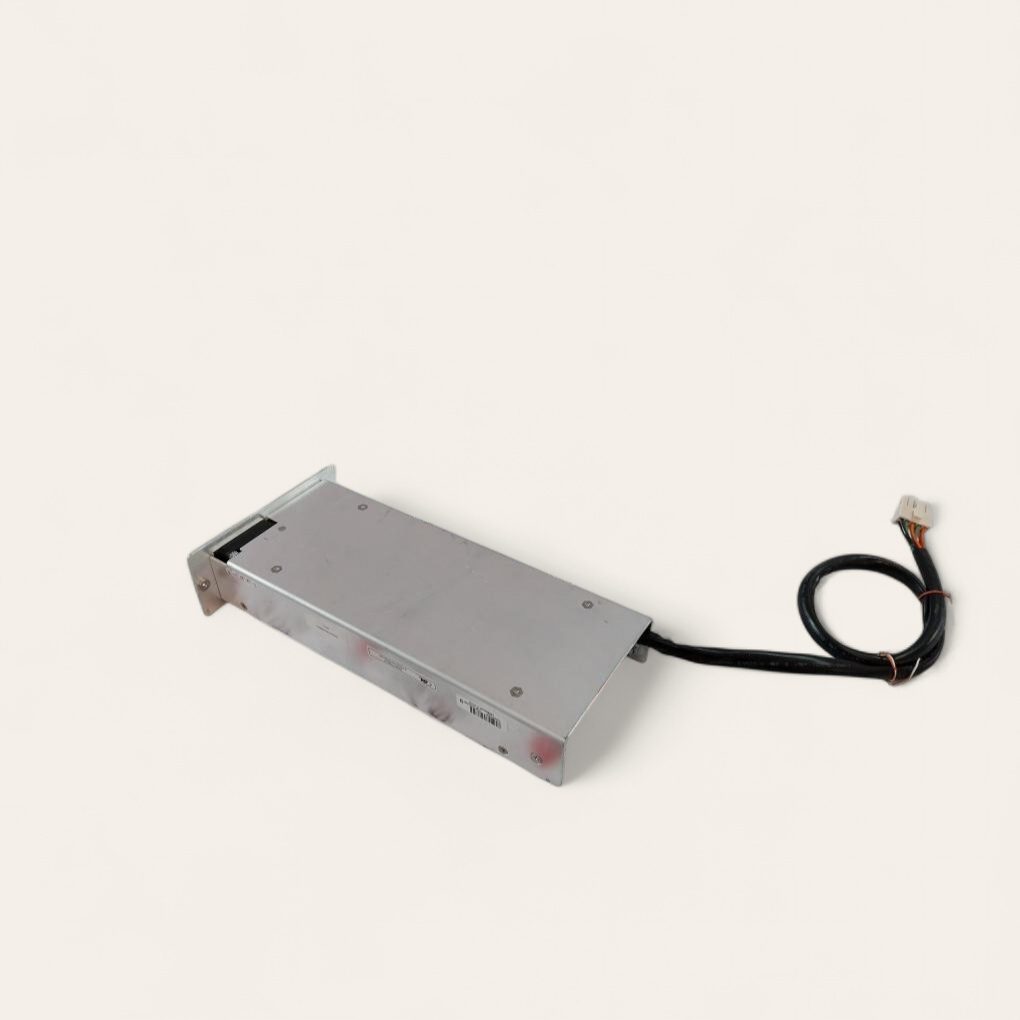

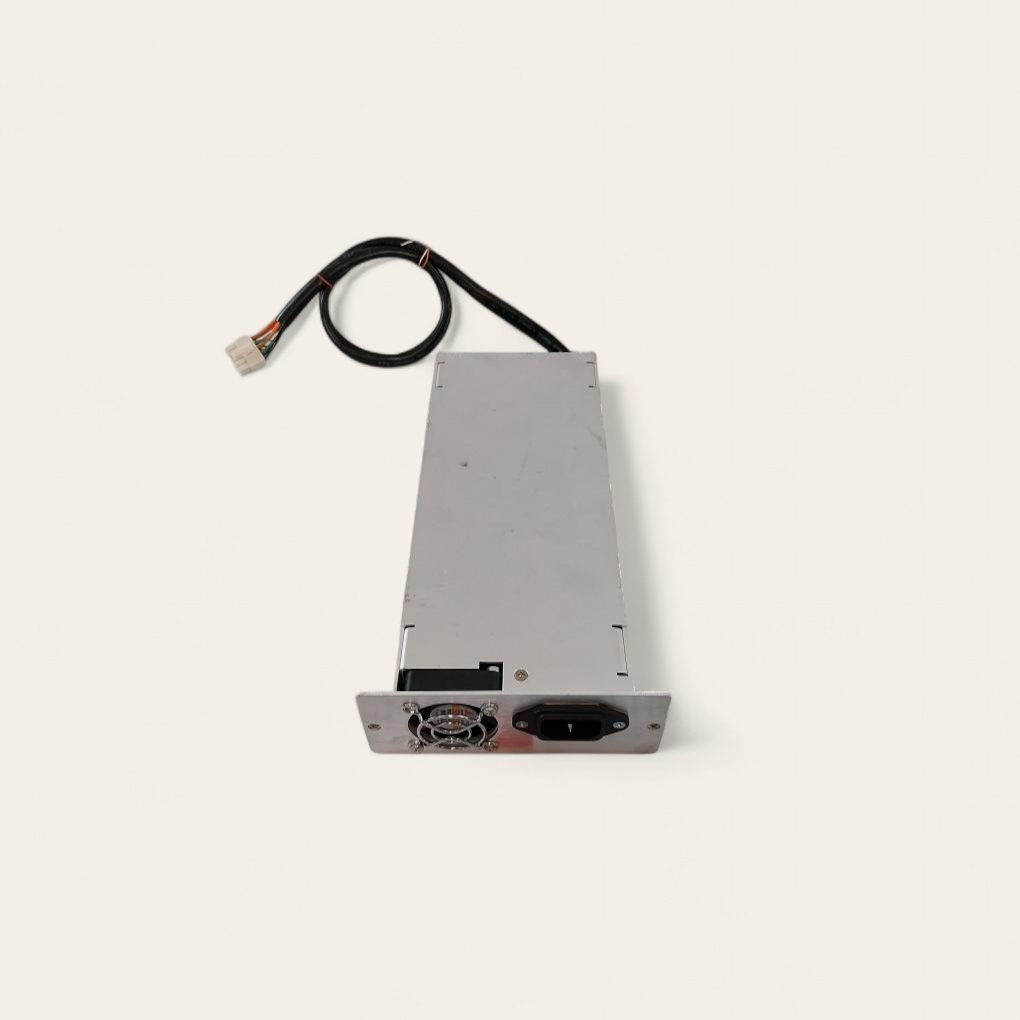

MINT2270B1976E04 Medical Power Supply I/P 100-240VAC O/P 24VDC-11.25A & 5VDC-2A

Features:

• The power supply in electro-medical equipment is of paramount importance for the safety of patients and operators using it, which is why medical power supplies must necessarily possess properties that meet certain high standards.
• Active Power Factor Correction (PFC)  to improve the power quality.
• Wide Operating Voltage.
• Low Leakage Current.
• Low Consumption.
• Over Load Protection (OLP).
• Over Voltage Protection (OVP).
• Over Temperature Protection (OTP).
• Short Circuit Protection (SCP).
• Means Of Patient Protection (MOPP):
  • Classification to ensure the safety of the patient and Caregiver.
  • Device in which the power supply is installed.
• High Efficiency.

Specifications:

•  Model: MINT2270B1976E04
• Cooling Fan (Built in): 40 mm
• Input Operating Voltage(AC): 100 – 240 V
• Input Operating Current: 4 – 2 A
• Input Operating Frequency: 47 – 63 HZ
• Output Voltage(DC):
  • 24 V  /  11.25 A
  • 5 V   /  2 A
• Efficiency:  85%
• Dimensions (Height x Width x Depth): 260 x 125 x 50 mm
• Ambient Temperature:
  • Operating: -10°C to +50°C
  • Storage: -20°C to +80°C
