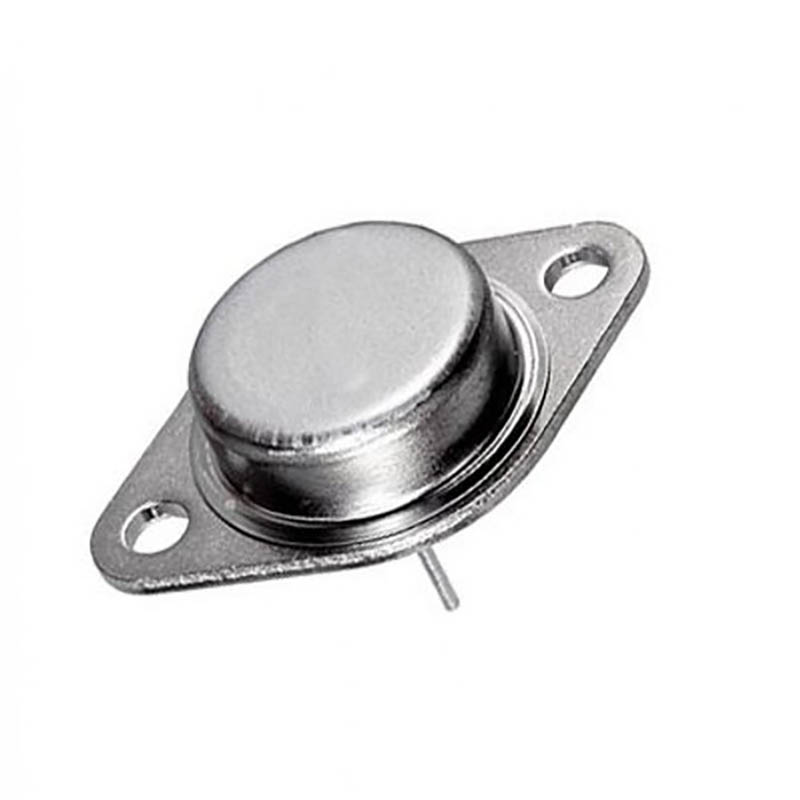

MJ10016 NPN bipolar Darlington Transistor 500V 50A 250W TO-3

MJ10016 NPN bipolar Darlington Transistor 500V 50A 250W TO-3

The MJ10016 is an NPN Darlington power transistor housed in a TO-3 type package. Designed for high-voltage and high-speed power switching, it excels in applications requiring inductive circuits where fall time is critical. Its structure incorporates a base-emitter speedup diode, optimizing the transistor for faster switching.

This transistor is capable of handling high continuous collector currents up to 50A, making it suitable for demanding power applications. It features robust voltage ratings, with a collector-emitter voltage of 500V, offering reliability in high-voltage environments. The transistor’s durability is further enhanced by its high power dissipation capability of up to 250W, providing efficient heat management in power systems.

Ideal for line-operated switch-mode power supplies, the MJ10016 is widely used in various power switching applications such as inverters, motor controls, and solenoid drivers. Its optimized speed and high current handling make it a versatile choice for demanding applications, ensuring consistent performance in complex electrical systems.

Features:

• High Power Dissipation: Capable of dissipating up to 250W of power.
• High Voltage and Current Ratings: Supports collector-emitter voltage up to 500V and continuous collector current of 50A.
• Fast Switching Speed: Features a base-emitter speedup diode for improved switching time.
• Durability: Optimized for use in rugged, high-power environments.
• Thermal Efficiency: Effective thermal management with a junction-to-case thermal resistance of 0.7°C/W.
• Broad Operating Temperature Range: With a junction temperature range of −65°C to +200°C.

Specifications:

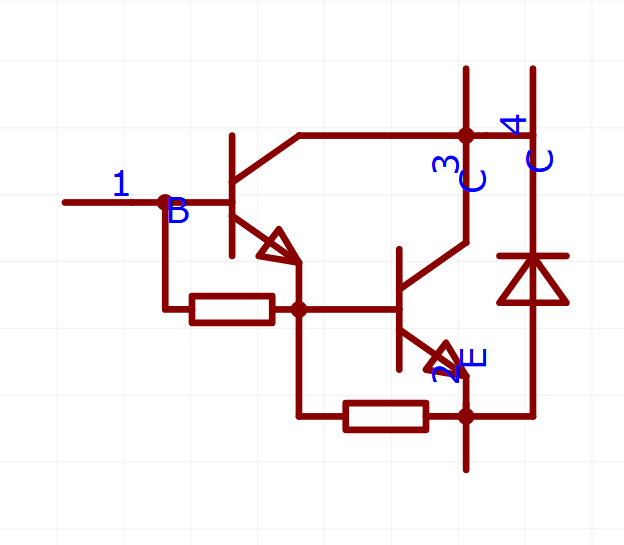

Pinout Diagram:

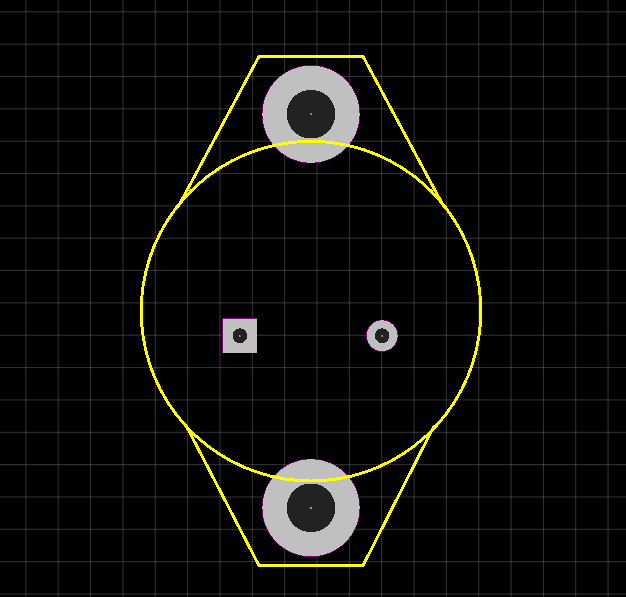

Footprint:

Applications:

• Switching Regulators.
• Inverters.
• Solenoid and Relay Drivers.
• Motor Controls.

Package Contents:

• 1x MJ10016 NPN bipolar Darlington Transistor 500V 50A 250W TO-3
