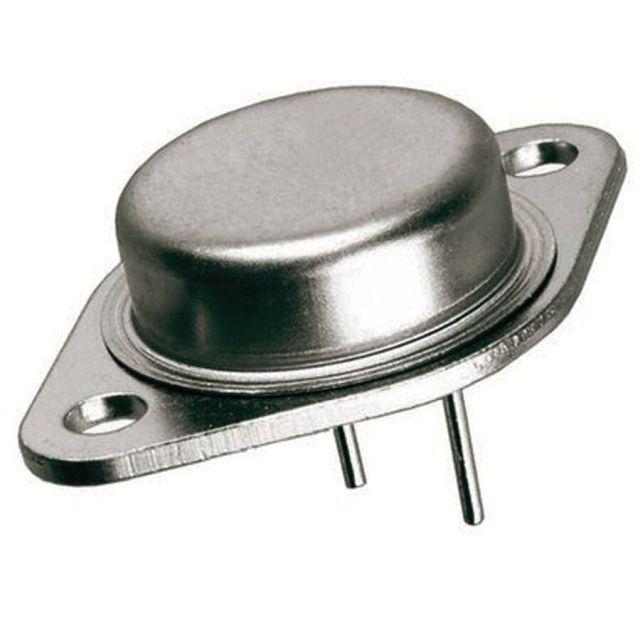

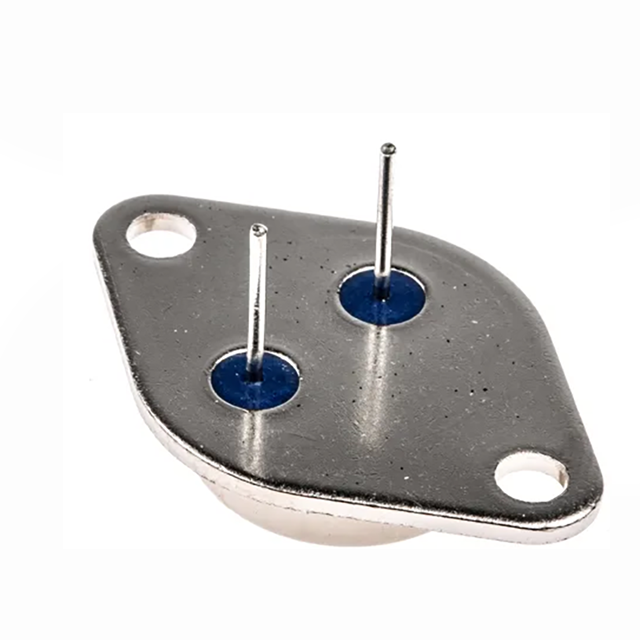

MJ15003 MJ15003G NPN Transistor 20A 140V 2-Pin TO-204AA
MJ15003G is a high-performance NPN power transistor with a 140V collector-emitter voltage, 20A collector current, and 250W power dissipation, ideal for demanding applications.
75.00 EGP
Buy NowMJ15003G NPN Power Transistor (20A, 140V, 250W)
Features:
- High Current Capacity: Handles up to 20A collector current.
- High Voltage Rating: Withstands up to 140V collector-emitter voltage.
- High Power Dissipation: Capable of dissipating up to 250W.
- High Gain: Minimum DC current gain (hFE) of 25 at 5A and 2V.
- Fast Switching: Transition frequency of 2MHz.
| Specification | Value |
|---|---|
| Type | NPN Power Transistor |
| Collector-Emitter Voltage (Vceo) | 140V |
| Collector Current (Ic) | 20A |
| Power Dissipation (Ptot) | 250W |
| DC Current Gain (hFE) | Minimum 25 at Ic = 5A, Vce = 2V |
| Transition Frequency (ft) | 2MHz |
| Package | TO-204AA (TO-3) |
Applications:
- Audio Amplifiers: Used in high-power audio amplification circuits.
- Motor Drives: Suitable for controlling motors in industrial applications.
- Power Supplies: Employed in high-current power supply designs.
- Switching Regulators: Utilized in power conversion circuits requiring efficient switching.
- Inverters: Applied in DC to AC power conversion systems.
