Features:
- High DC Current Gain.
- High Current Gain − Bandwidth Product.
Pin Configurations:
Specifications:
| Product Attribute | Attribute Value |
| Datasheet | MJE15032G |
| Product Category | BJT – Bipolar Transistors |
| Technology | Si |
| Series | MJE15032 |
| Model | MJE15032G |
| Transistor Type | NPN |
| Configuration | Single |

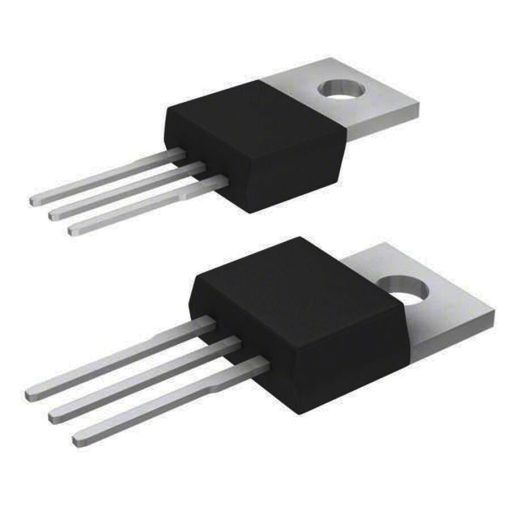

| Package/Case | TO-220 |
| Mounting Style | Through Hole |
| Number of Channels | 3 |
| Maximum DC Collector Current | 8 A |
| Continuous Collector Current | 8 A |
| Collector- Emitter Voltage VCEO (Max) | 250 V |
| Collector- Base Voltage VCBO | 250 V |
| Emitter- Base Voltage VEBO | 5 V |
| Collector-Emitter Saturation Voltage | 500 mV |
| Pd – Power Dissipation | 50 W |
| Gain Bandwidth Product fT | 30 MHz |
| Operating Temperature Range | – 65 C to +150 C |
Applications:
- High End Consumer Audio Products.
- Professional Audio Amplifiers.
- Theater and Stadium Sound Systems.
- Public Address Systems (PAs).
