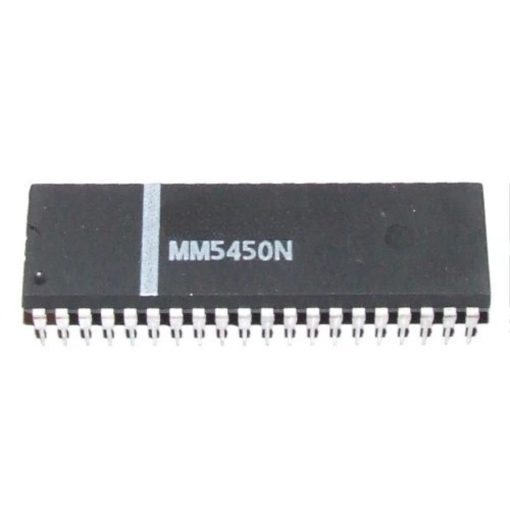

MM5450N LED Display Driver IC DIP40
The MM5450N LED Display Driver IC DIP40 is a robust monolithic metal-oxide-semiconductor (MOS) integrated circuit developed by National Semiconductor, utilizing N-channel metal-gate low-threshold enhancement mode and ion-implanted depletion mode devices. This driver is specifically engineered to interface with common anode-separate cathode LED displays, enabling efficient control of up to 34 segments or digits through a simple serial data protocol. Housed in a 40-pin dual-in-line package (DIP), it offers a compact and reliable solution for applications requiring alphanumeric or numeric display outputs, such as in microprocessors or COPS (Controller-Oriented Processor System) environments. The device’s design eliminates the need for a separate load signal, streamlining data transfer with just serial data and clock inputs, making it highly suitable for embedded systems where minimal interfacing is desired.
Features:
- Continuous brightness control.
- Serial data input.
- No load signal required.
- Enable (on MM5450).
- Wide power supply operation.
- TTL compatibility.
- 34 or 35 outputs, 15 mA sink capability.
- Alphanumeric capability.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage | 4.75V-11V |
| Operating Temperature | -25°Cto85°C |
| Storage Temperature | -65°Cto150°C |
| Power Dissipation (Board Mount) | 2.5W |
| Power Supply Current | 7mA |
| Output Sink Current (Max per Pin) | 40mA |
| Brightness Input Current | 0µA-0.75µA |
| Clock Frequency (Max) | 500kHz |
| Input Logic High (Min) | 2.2V |
| Input Logic Low (Max) | 0.8V |
| Package Type | DIP-40 |
| Number of Outputs | 34 |

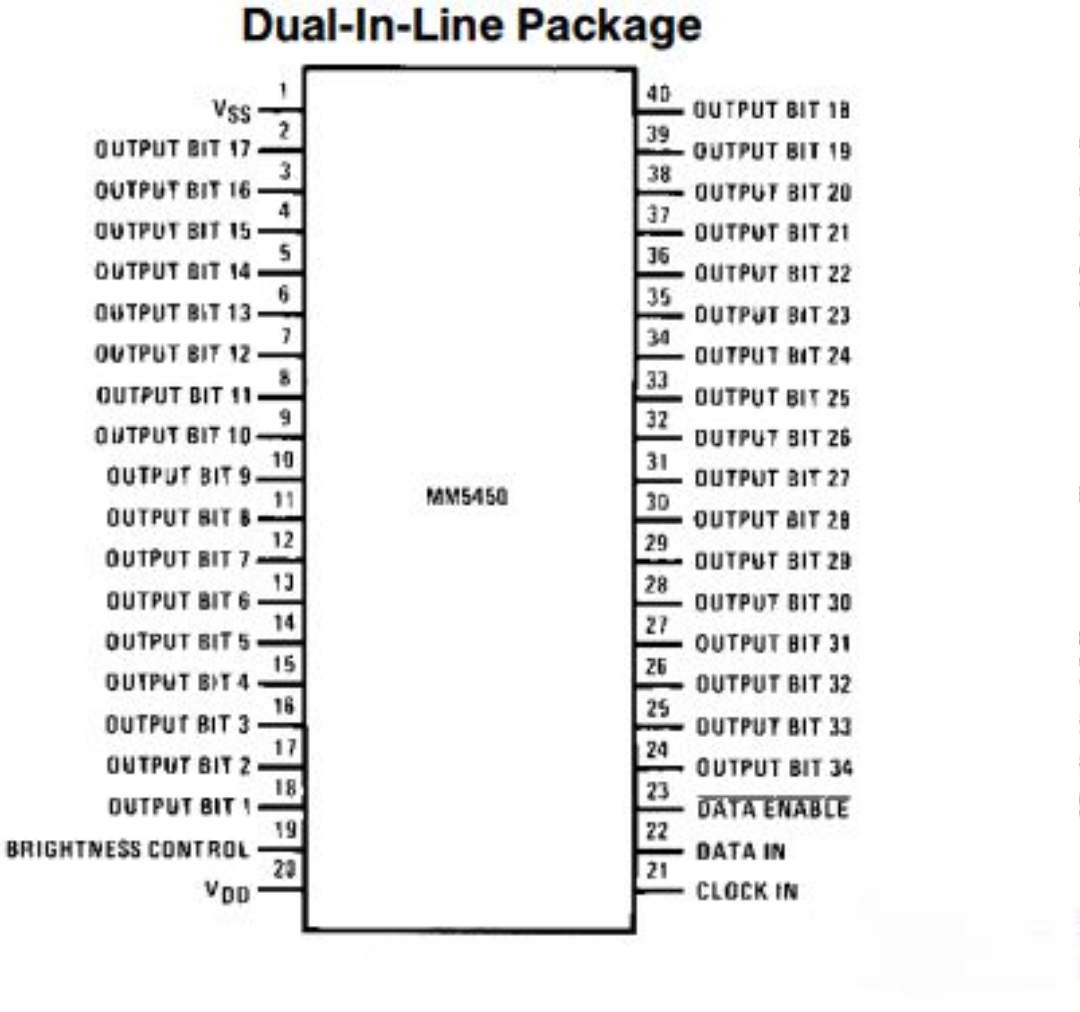

Pin Configuration:
Applications:
- COPSTM or microprocessor displays.
- Industrial control indicator.
- Relay driver.
- Digital clock, thermometer, counter, voltmeter.
- Instrumentation readouts.
Package Include:
1x MM5450N LED Display Driver IC DIP40
Datasheet:
