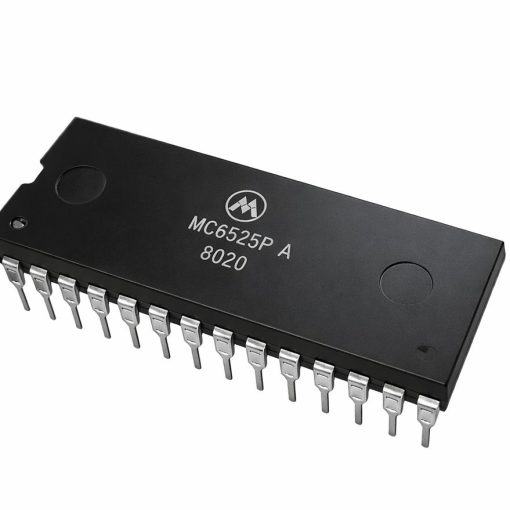

Motorola MC6525P NMOS Remote Control Receiver IC 12V PDIP-28 Wide
The Motorola MC6525P is a specialized NMOS integrated circuit designed as a remote control receiver and decoder for electronic control systems. It processes multiplexed input signals from compatible transmitters and converts them into binary-coded outputs that can be used to control different functions within electronic devices. This IC was originally designed to work with dedicated transmitters in remote control applications, enabling reliable program selection and command decoding.
The IC features an internal up/down counter, instruction decoder, and voltage comparator, allowing it to detect incoming control signals with good noise immunity and high input sensitivity. The MC6525P is typically used in systems requiring multiple programmable outputs, such as television remote control circuits, consumer electronics, and industrial control devices. Its DIP-28 package allows convenient through-hole mounting for PCB-based electronic designs.
Features:
- NMOS remote control receiver architecture.
- Binary-coded output for multiple program selections.
- High input sensitivity for reliable signal detection.
- Built-in noise immunity for stable operation.
- Internal up/down counter for program sequencing.
- Integrated instruction decoder.
- Compatible with dedicated remote control transmitters.
- Standard DIP package for easy PCB installation.
Specifications:
| Parameter | Value |
|---|---|
| IC Type | Remote Control Receiver |
| Technology | NMOS |

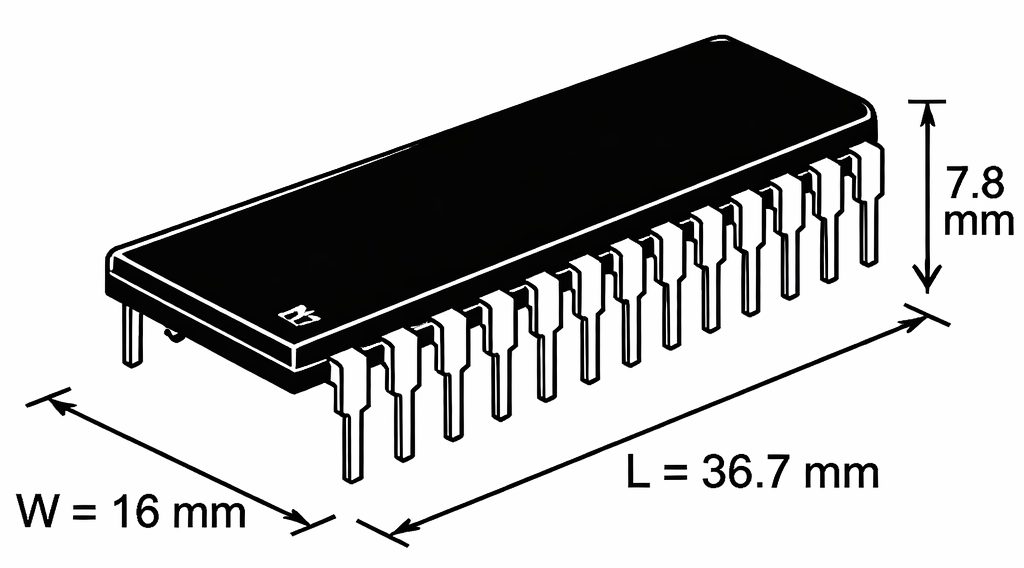

| Package Type | PDIP-28 |
| Input Sensitivity | 250mVrms |
| Output Type | Binary-Coded Output |
| Number of Programs | Up to 12 Programs |
| Operating Voltage | 12V |
| Operating Temperature | 0°C to +70°C |
Pinout:
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | OUT A | Output of channel A |
| 2 | IN A- | Inverting input of channel A |
| 3 | IN A+ | Non‑inverting input of channel A |
| 4 | OUT B | Output of channel B |
| 5 | IN B- | Inverting input of channel B |
| 6 | IN B+ | Non‑inverting input of channel B |
| 7 | OUT C | Output of channel C |
| 8 | IN C- | Inverting input of channel C |
| 9 | IN C+ | Non‑inverting input of channel C |
| 10 | OUT D | Output of channel D |
| 11 | IN D- | Inverting input of channel D |
| 12 | IN D+ | Non‑inverting input of channel D |
| 13 | ENABLE | Common enable (active low) – may be NC on some versions |
| 14 | GND | Ground (0V) |
| 15 | NC | No internal connection |
| 16 | NC | No internal connection |
| 17 | NC | No internal connection |
| 18 | NC | No internal connection |
| 19 | NC | No internal connection |
| 20 | NC | No internal connection |
| 21 | NC | No internal connection |
| 22 | NC | No internal connection |
| 23 | NC | No internal connection |
| 24 | NC | No internal connection |
| 25 | NC | No internal connection |
| 26 | NC | No internal connection |
| 27 | NC | No internal connection |
| 28 | Vcc | Positive supply voltage (+12V) |
Applications:
- Remote control receiver systems.
- Television and consumer electronics control circuits.
- Industrial electronic control systems.
- Signal decoding circuits.
- Multi-function device controllers.
Package Included:
- 1x Motorola MC6525P NMOS Remote Control Receiver IC 12V PDIP-28 Wide.
