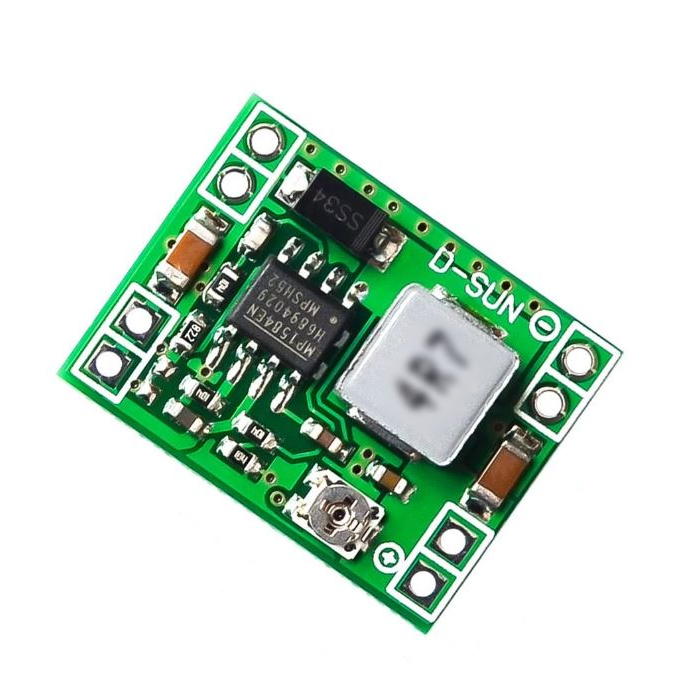

MP1584EN Mini DC-DC Buck Step Down Module 4.5V-28V Input
The MP1584EN is a high-frequency switching regulator that integrates a high-side power MOSFET. It utilizes a current control mode to deliver a stable 3A output with a fast loop response, simplifying compensation. This module is engineered to efficiently step down a higher input voltage to a lower, regulated output voltage, making it an essential component for hobbyists and professionals alike.
Features
- Wide Input Voltage Range
- Adjustable Output Voltage
- High Current Output
- Exceptional Efficiency
- High Switching Frequency
- Low Output Ripple
- Integrated Protection
- Compact Design
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 4.5V – 28V |
| Output Voltage | 0.8V – 20V (Adjustable) |
| Output Current | 1.8A (Typical), 3A (Maximum) |
| Conversion Efficiency | Up to 96% (Maximum) |
| Switching Frequency | Typically 1MHz, up to 1.5MHz |
| Output Ripple | < 30mV |
| Operating Temperature | -45°C to +85°C |
| Dimensions | 22mm x 17mm x 4.3mm |
Applications
- DIY Mobile Power Supplies
- Automotive Systems
- Industrial Power Systems
- Distributed Power Systems
- Battery-Powered Devices
- Robotics and RC Models
