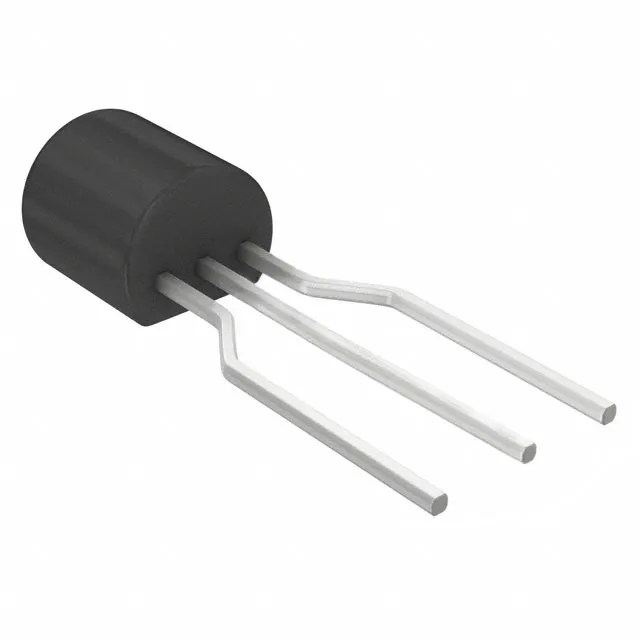

MPSA93 PNP High Voltage Transistor
The MPSA93 is a PNP high-voltage transistor, designed for use in switching and amplification applications. This transistor features a maximum collector-emitter voltage (VCE) of -200V, making it suitable for high-power electronic circuits that require reliable performance under substantial electrical stress. It operates within a temperature range of -55°C to +150°C, ensuring durability in various environmental conditions. With its high current gain and low saturation voltages, the MPSA93 is an excellent choice for amplifiers, signal processing circuits, and power management systems.
Features:
- Maximum collector-emitter voltage: -200V.
- Maximum collector-base voltage: -200V.
- Continuous collector current: -500mA.
- High current gain for amplification applications.
- Low collector-emitter saturation voltage (-0.4V).
- Available in TO-92 package for easy mounting.
- Wide operating temperature range: -55°C to +150°C.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage | -200VDC |
| Collector-Base Voltage | -200VDC |
| Emitter-Base Voltage | -5VDC |
| Collector Current – Continuous | -500mADC |
| Total Device Dissipation @ TA=25°C | 625mW |
| Derate above 25°C (Ambient) | 5mW/°C |
| Total Device Dissipation @ TC=25°C | 1.5W |
| Derate above 25°C (Case) | 12mW/°C |
| Operating and Storage Temperature Range | -55°Cto+150°C |
| Thermal Resistance, Junction to Ambient | 200°C/W |
| Thermal Resistance, Junction to Case | 83.3°C/W |
| DC Current Gain (IC=-10mADC, VCE=-10VDC) | 40(min) |
| Collector-Emitter Saturation Voltage (IC=-20mADC, IB=-2mADC) | -0.4VDC(max) |
| Base-Emitter Saturation Voltage (IC=-20mADC, IB=-2mADC) | -0.9VDC(max) |
| Current-Gain Bandwidth Product (IC=-10mADC, VCE=-20VDC, f=100MHz) | 50MHz(min) |
| Collector-Base Capacitance (VCB=-20VDC, f=1MHz) | 8pF(max) |
Pin Configuration:
Footprint:
Applications:
- Power amplification circuits.
- Signal processing circuits.
- High-voltage switching applications.
- Audio and RF amplification.
- Power management and regulation circuits.
